HOWTO: Head Plug Cap / Seal (step-by-step) (Read 1378 times)

LPHRN YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 17	Re: HOWTO: Head Plug Cap / Seal (step-by-step) Reply #30 - Today at 17:20:31 Sorry, I meant to say foot pounds. Still, it is much more than that.
Back to top	IP Logged

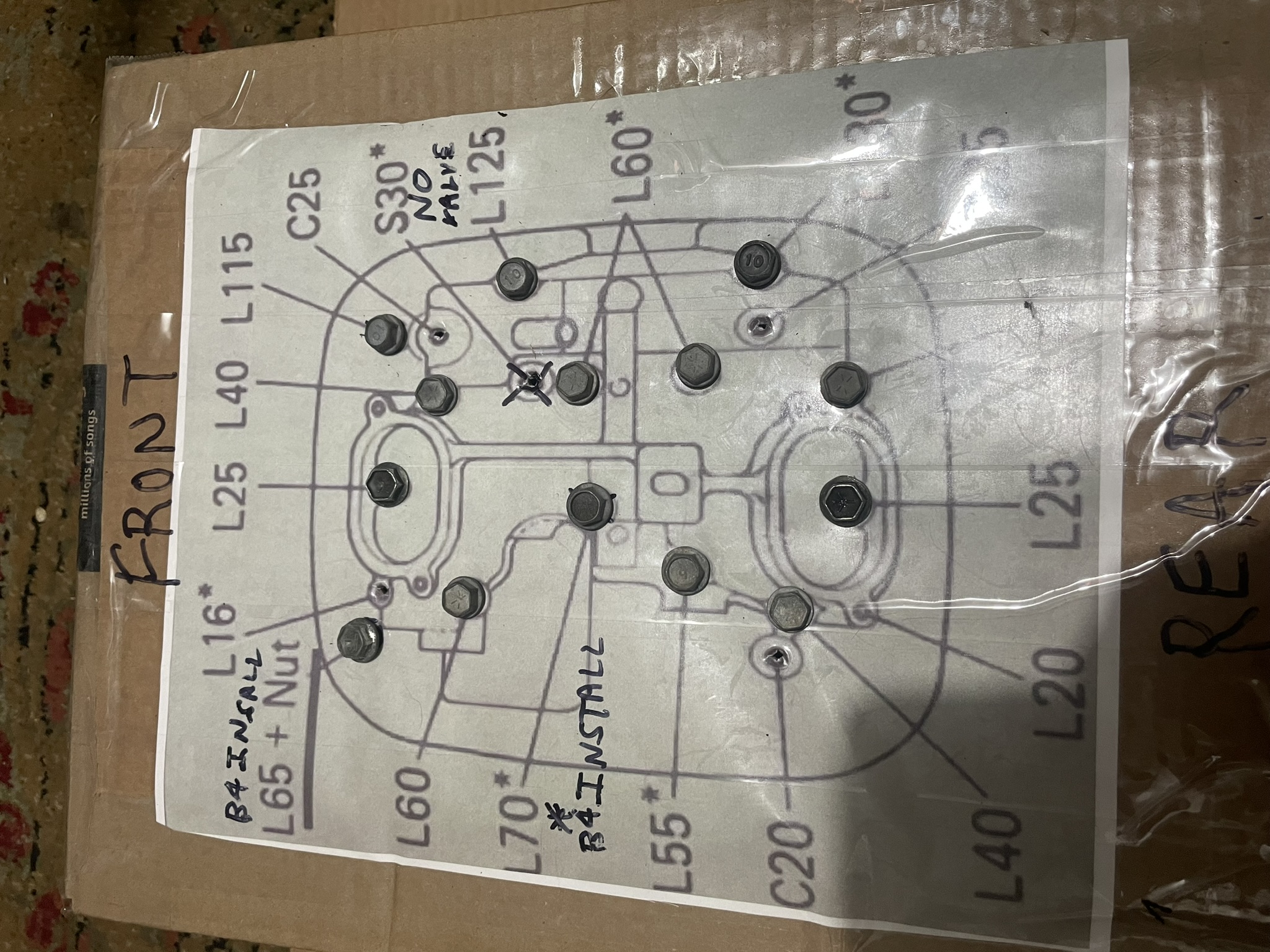

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2163 Houston, Texas Gender:	Re: HOWTO: Head Plug Cap / Seal (step-by-step) Reply #31 - Today at 18:21:46 So all the 6mm bolts in the head cover. Those should be 12lb ft if memory serves correctly. I don't have the manual in front of me. I made a template out of cardboard to remember exactly where each one goes. I would not put a cheater bar or breaker bar on those. Soak with some penetrating oil overnight.
Back to top	Head_Cover_Bolt_Template_001.jpeg IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28998 L.A. California Gender:	Re: HOWTO: Head Plug Cap / Seal (step-by-step) Reply #32 - Today at 22:07:13 the 9mm bolts are torqued to 21-24 lbft the 8mm bolts are torqued to 17-20 lbft if you are not using new copper washers, you need to anneal them. apply oil to the bolt and nut threads before you torque them. use a criss cross pattern.
Back to top	Versey's Place Tech Section Index IP Logged
