Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Changing out the jets without dropping the carb. 05/21/14 at 17:13:55 Not the greatest video but its good comment please If I only had another hand Main Jet (don't lisen to me talk) https://www.youtube.com/watch?v=qpHQk-pA6fI Pilot Jet (bit better) https://www.youtube.com/watch?v=0j-nPtoP2MY
Back to top	« Last Edit: 06/06/14 at 20:41:31 by Yoshi » IP Logged

Coaxial

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 184
Toronto, Ontario, Canada
Gender: male

Re: Changing out the jets without dropping the car
Reply #1 - 05/22/14 at 08:33:38

Looks great ! I wish I had this when i was starting out.
In any case my only comment would be to have a bit more light to see everything and perhaps mount your camera somewhere steady.

Since its a bit awkward working on the carb like so, I usually take the extra step of removing the seat, top carb cover, and battery top cover so I can rotate carb a bit.

Back to top

2007 Suzuki Boulevard S40 Black. K&N Air Filter, Jardine Rumbler Exhaust, Raptor Petcock.

145 Main Jet, 45 Pilot Jet, 1.5x

IP Logged

Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Re: Changing out the jets without dropping the car Reply #2 - 05/22/14 at 15:10:40 Yeah, sorry about my camera skill, I tried my best with what I have I remove the seat only to get to the top of the carb, when the seat is removed all you have to do is pull the carb out of the cylinder a bit and you can then dismount the top of the carb to get to the needle. Lot less work
Back to top	IP Logged

pg Serious Thumper Offline Posts: 5274 In Transit	Re: Changing out the jets without dropping the car Reply #3 - 05/23/14 at 19:29:02 Nice vid, thanks for posting.
Back to top	I don't make the rules, I just know what they are..... IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28995
L.A. California
Gender: male

Re: Changing out the jets without dropping the car
Reply #4 - 05/31/14 at 14:34:10

At 1st you call it a main pilot jet... its just a main jet.

Here's some tips for you 1st timers:
1st time those screws are removed you'll want to use pen oil and/or take the carb out to use a impact driver, they come factory Godzilla glued.
My bat box sits under the carb and I can't just drop the bowl.
I put a strap around the bat box and pull it backwards to clear the bowl.
And typically, I break all the screws loose 1st before pulling them all the way out. If you have trouble with 1... the last one usually and have to go a different route, it's easier to retighten all the screws.
and a small makeup mirror is handy to have to see the jets from the bottom.

Back to top

Versey's Place
Tech Section Index

IP Logged

Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Re: Changing out the jets without dropping the car Reply #5 - 05/31/14 at 15:33:55 Don't worry Verslavy, I'm gonna make a new brighter video when I dont call the jets any stupid names :-D
Back to top	IP Logged

Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Re: Changing out the jets without dropping the car Reply #6 - 06/06/14 at 20:42:08 2nd video added! bit better?
Back to top	IP Logged

1st2know

Senior Member

Offline

Currently between
Savages

Posts: 295
Seattle, WA
Gender: male

Re: Changing out the jets without dropping the car
Reply #7 - 06/06/14 at 21:07:48

I tried this method today jetting my 98. The battery box was wedging the bowl in. Prying the battery box back with a tire iron, freed the bowl.

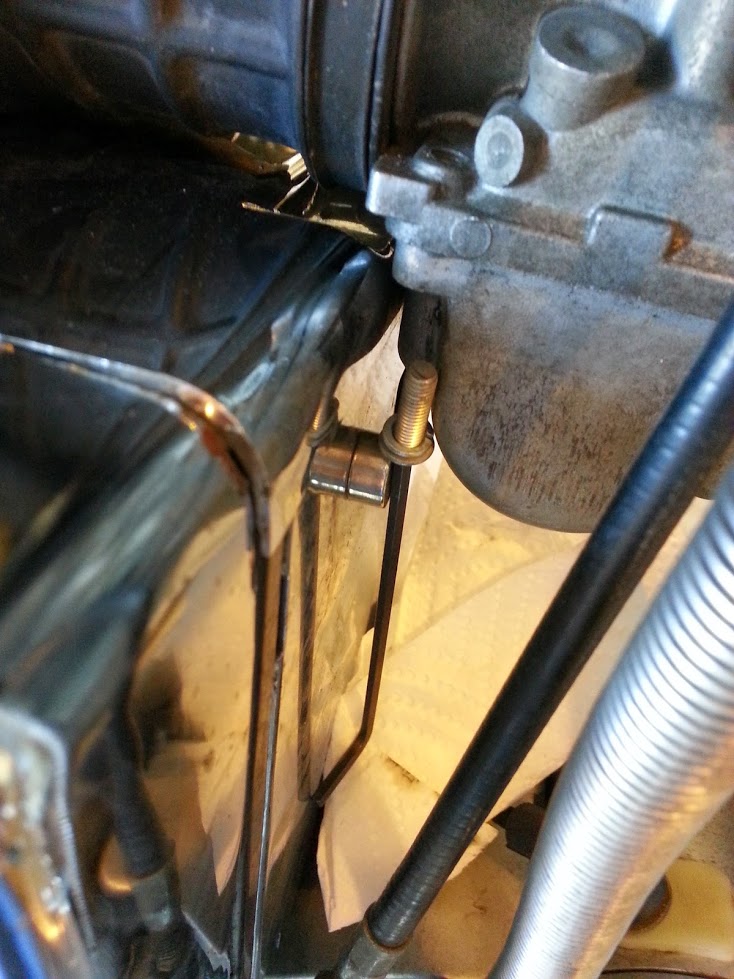

As you all are probably aware, the first duty of all small motorcycle parts is to escape, so I strategically positioned neodymium "guards" along the escape routes that the screws might take.

Back to top


Kaw VN1700, V-Strom 650, Coal powered Chevy Spark.

IP Logged

Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Re: Changing out the jets without dropping the car Reply #8 - 06/07/14 at 10:04:53 That's why I fit a ratcheting wrench in from the other side to get those bolts, that's the "harder side"
Back to top	IP Logged

Albert Verdugo Junior Member Offline Riding is freedom! Posts: 91 Baja California Gender:	Re: Changing out the jets without dropping the car Reply #9 - 12/22/14 at 19:24:58 Very helpful. I bought my 2011 S40 a few months ago and came with a Jardine pipe and backfired a lot. I reduced a little adjusting the idle screw but still needs more tuning Now thanks to you I know how easy it could be.
Back to top	IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28995
L.A. California
Gender: male

Re: Changing out the jets without dropping the car
Reply #10 - 12/22/14 at 19:56:22

1st2know wrote on 06/06/14 at 21:07:48:

I tried this method today jetting my 98. The battery box was wedging the bowl in. Prying the battery box back with a tire iron, freed the bowl.

As you all are probably aware, the first duty of all small motorcycle parts is to escape, so I strategically positioned neodymium "guards" along the escape routes that the screws might take.

you missed it the 1st time, so here it is again...
Quote:

My bat box sits under the carb and I can't just drop the bowl.
I put a strap around the bat box and pull it backwards to clear the bowl.
