SuzukiSavage.com - BANG! My Ryca CS-1

Art Webb Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3007 columbus, Texas Gender:	Re: BANG! My Ryca CS-1 Reply #45 - 03/22/15 at 07:58:39 looking good
Back to top	IP Logged

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #46 - 03/22/15 at 16:46:52 Thanks. I'm having a lot of fun with it. I wanted to finish welding and painting the rear arm but had some family stuff to go to and it is getting cold this week! I'll be updating my website later tonight. Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #47 - 03/23/15 at 13:16:48 Where I ended last night Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #48 - 04/07/15 at 21:28:16 Got the front lowered today. Putting those top caps in is stressful! Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Art Webb Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3007 columbus, Texas Gender:	Re: BANG! My Ryca CS-1 Reply #49 - 04/07/15 at 21:41:51 anything forks is stressfull
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18581
Camp Springs, Kentucky
Gender: male

Re: BANG! My Ryca CS-1
Reply #50 - 04/08/15 at 04:24:52

In your search for the speedometer cable block off cap....here is a copy of a previous post on the subject.

verslagen1 wrote on 06/03/14 at 08:15:17:

The solution is at ACE hardware.
There's a brass gas fitting that fits it perfectly.
So the size and threads are common.
Probably something for a 3/8 line.

I just took a left over fitting and shoved a plastic cap in it.
I use it for washing the bike w/out the tank prior to engine work.

ACE people are more helpful than anywhere else.
I'd walk in there when the parking lot is empty and ask if you can try a few on the bike.

Document what you get....and post it in Technical Section "Off Beat Measurements and Sizes". This subject has come up about twice a year and no one has ever posted what actually fits. I remember seeing one picture of it - and it looks like a brass acorn nut with a very rounded top. It could be painted to cover the brass color.

Back to top

Someday I will be old......But not today!

IP Logged

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #51 - 04/08/15 at 18:11:20 Thanks.
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

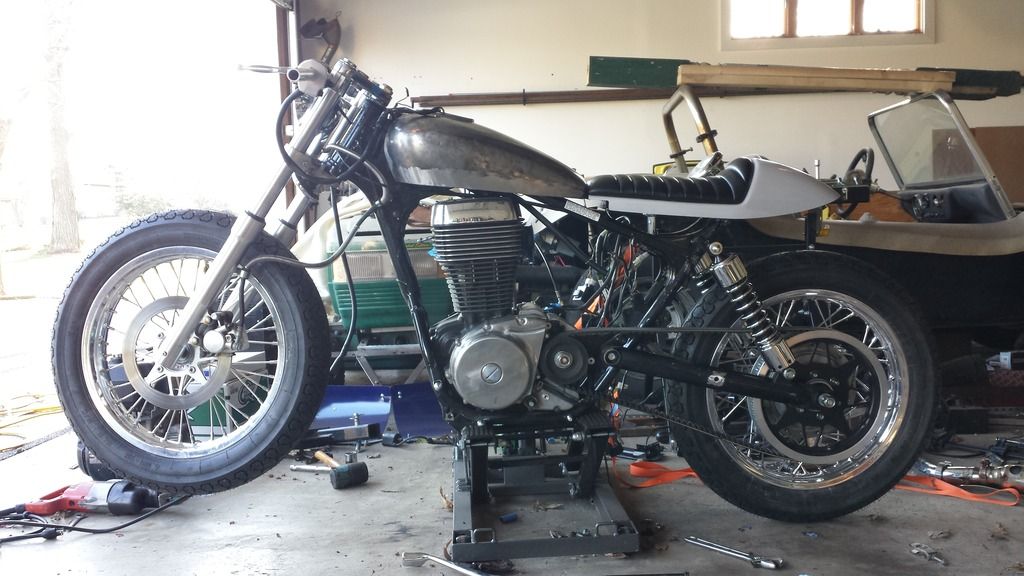

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #52 - 04/10/15 at 20:55:40 Getting somewhere!!!! (The brake line is just pulled to the side. I'll be replacing it soon.) The rear arm is just mocked up. I still have a few welds to do. Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Kris01

Serious Thumper

Offline

Eat, sleep, RIDE!

Posts: 3767
Tennessee
Gender: male

Re: BANG! My Ryca CS-1
Reply #53 - 04/11/15 at 06:07:25

Dave wrote on 04/08/15 at 04:24:52:

In your search for the speedometer cable block off cap....here is a copy of a previous post on the subject.

verslagen1 wrote on 06/03/14 at 08:15:17:

The solution is at ACE hardware.
There's a brass gas fitting that fits it perfectly.
So the size and threads are common.
Probably something for a 3/8 line.

I just took a left over fitting and shoved a plastic cap in it.
I use it for washing the bike w/out the tank prior to engine work.

ACE people are more helpful than anywhere else.
I'd walk in there when the parking lot is empty and ask if you can try a few on the bike.

Document what you get....and post it in Technical Section "Off Beat Measurements and Sizes". This subject has come up about twice a year and no one has ever posted what actually fits. I remember seeing one picture of it - and it looks like a brass acorn nut with a very rounded top. It could be painted to cover the brass color.

Was it a brass pipe cap?

Back to top

There's no problem that a full tank of gas and a sunny day can't fix!

2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor

IP Logged

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #54 - 04/11/15 at 16:28:04 Sure was. I put it in the offbeat sizes thread. Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: BANG! My Ryca CS-1 Reply #55 - 04/11/15 at 20:02:11 Awesome! Thanks Jeff!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Jeff71

Senior Member

Offline

I'm a bike noob!!!!!

Posts: 378
South of Chicago, the suburbs
Gender: male

Re: BANG! My Ryca CS-1
Reply #56 - 04/12/15 at 19:05:02

Rolled it out into the driveway today. Felt good! The tires are FAT! Got the carb done and am working on fixing the rear trailing arm. It was bent in a little so I squared it up to the original arm and am currently making a few tweaks here and there. I'm within .25* of the other arm. Measured everything on the bike and it's looking very good. I'm learning so much and having a blast!
Jeff

Back to top

Yeah, like I have any clue what is going on....
http://myrycabuild.weebly.com

IP Logged

savagelocal

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 54
Kannapolis, NC

Re: BANG! My Ryca CS-1
Reply #57 - 04/14/15 at 17:05:41

Looks great! We're in the middle of a CS-1 custom build and it's coming along. We just have to finish polishing a few pieces and decide whether to paint the engine black or touch it up with polished fins, or go totally polished. We're hoping to have it done by end of summer. Be sure to put more pics up! I love the cafe conversions on these things. Seems they were just made for it.

Back to top

IP Logged

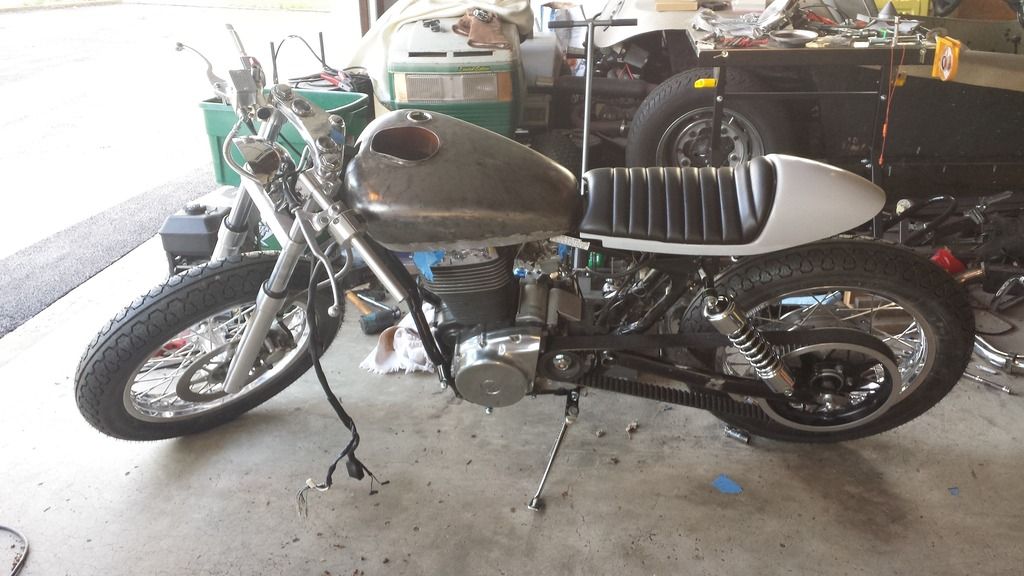

Jeff71 Senior Member Offline I'm a bike noob!!!!! Posts: 378 South of Chicago, the suburbs Gender:	Re: BANG! My Ryca CS-1 Reply #58 - 04/14/15 at 19:50:55 My full build is here http://myrycabuild.weebly.com Just got the kickstand installed and the trailing arm sorted out today. Finally sat on it. Oh it fits nice!!!!! Jeff
Back to top	Yeah, like I have any clue what is going on.... http://myrycabuild.weebly.com IP Logged

Jeff71

Senior Member

Offline

I'm a bike noob!!!!!

Posts: 378
South of Chicago, the suburbs
Gender: male

Re: BANG! My Ryca CS-1
Reply #59 - 04/15/15 at 11:31:29

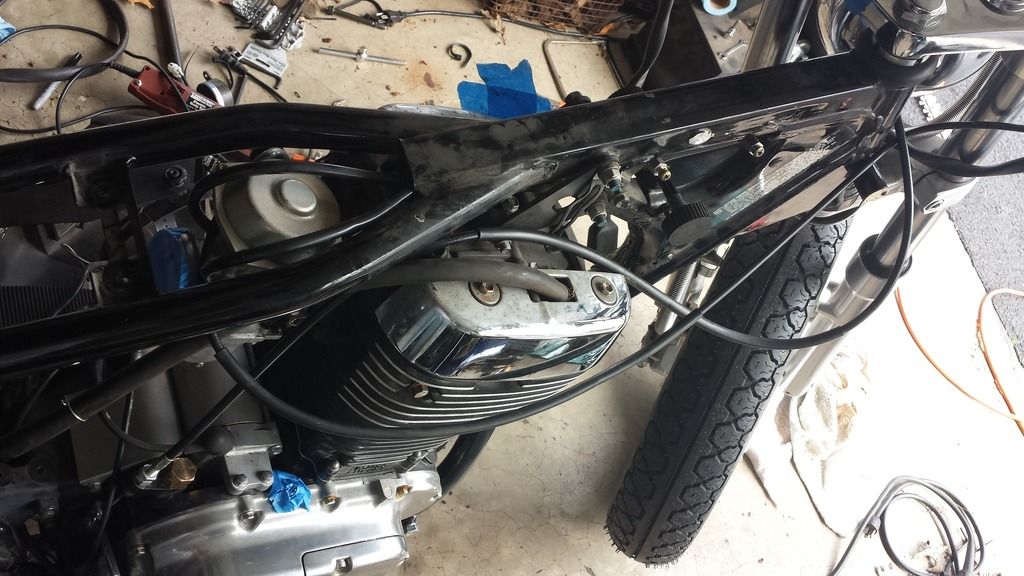

I was asked about my cable routing and for now I came up with this. I'll more than likely be replacing the cables later. Right now I want to get things functional and then make mods over next winter.
First off, I routed the throttle cable back around the carb and up the right side of the frame and behind the right fork tube. I checked for binding at both turn limits and it works fine. If you run the cable in front of the carb, you may want to shorten it. If you run it behind, you may want to lengthen it a bit. Wink

As for the clutch cable, I think a few inches shorter would clean up the appearance but I ran it from the left handlebar, behind the headlight and down the right side of the frame. I'll get it all zip tied up when I do the wiring. It will hang down in the front just a little but still works fine.
Jeff

Back to top

Yeah, like I have any clue what is going on....
http://myrycabuild.weebly.com

IP Logged
