Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 29278 Tucson Az Gender:	Re: Oil started spewing while riding - Newbie Reply #15 - 06/01/15 at 11:02:54 Nice big pic,... but I can't see any oil leaking...
Back to top	Ludicrous Speed !... ... ... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Oil started spewing while riding - Newbie Reply #16 - 06/01/15 at 11:10:04 Sounds like the output shaft seal, Define spewing. IF it's that seal, I don't remember another.. Get a flashlight, get someone to hold it up, HOPE it's not that shaft seal. Grab that front pulley and shake it. Does it move?
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 29278
Tucson Az
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #17 - 06/01/15 at 11:18:21

...or,.. might possibly be loose stator case bolts...
I'm wary of advising you to check them...(they are longish steel bolts, and go into soft aluminum engine block)...
If you do,... be gentle... use a 1/4" ratchet, and finger pressure only...
I think they torque at 8 or 10lbs...
That's about what it takes to screw on a pickle jar lid... not a lot of pressure...

DON'T strip any threads, or you'll be so much worse off than you are now... Huh

...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #18 - 06/01/15 at 11:26:08

Since it gushes, and leaks when the bike is not moving....I would not think it is the output shaft seal. More likely it is something related to the left side cover, and the wires for the stator that come out of that cover.

You need to take off the slotted cover over the pulley, then look in that area and see where the oil is coming from when it is leaking.

Back to top

Someday I will be old......But not today!

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28996
L.A. California
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #19 - 06/01/15 at 11:43:11

AaronMarshall wrote on 06/01/15 at 10:43:36:

Ok - so here is a pic of where the leak was coming from. It was coming from in between the silver cover on the left and the belt. Just underneath where the long piece is to receive teh screw on the top.

Any thoughts?

Ah, that's were the wires come out. It's a rubber block with holes for the wiring and sealed with RTV.
If that's shot, you might have to pull the stator cover to replace it.
You'll have to check to see if you can get a replacement.

Has someone been in there lately?

Back to top

Versey's Place
Tech Section Index

IP Logged

AaronMarshall

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 8

Re: Oil started spewing while riding - Newbie
Reply #20 - 06/01/15 at 12:52:32

OK so I shot a video of the oil spewing.
Here is the link: https://youtu.be/bZeVHzvIWww
Just copy and paste it into your browser.

By spewing I just mean that when the engine is on it is spewing out oil on the left side.

I grabbed the front pulley and shook it and it didn't seem to move.

Any thoughts. Thanks so much.

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #21 - 06/01/15 at 13:08:06

That is a "Horror Film"! Shocked

Unfortunately it is just too dark back there for us to be able to tell what is going on...but I definitely believe it is related to the gasket or the seal for the wires. Somebody will have to drain the oil and remove the left side cover to find the leak and how to fix it.

Where do you live? Maybe someone on the forum lives near you?

Back to top

Someday I will be old......But not today!

IP Logged

AaronMarshall YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 8	Re: Oil started spewing while riding - Newbie Reply #22 - 06/01/15 at 13:12:59 I live in Wilmington, NC. Anyone live close?
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Oil started spewing while riding - Newbie Reply #23 - 06/01/15 at 13:13:45 I don't know, maybe someone else has an idea. If I was alone id be looking at the manual and getting a light,trying to see Exactly where the oil is coming from.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

youzguyz

Serious Thumper

Offline

Posts: 2555
San Antonio, Texas
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #24 - 06/01/15 at 15:55:52

One other possibility.
The starter has an o-ring that seals it to the case.
If that is leaking, the oil will drip down through the drain hole under the starter to that area on the left side. The drain hole is there to keep water from pooling under the starter when it rains, or when you wash the bike.
To check, pull the starter and see if there is oil under it.

EDIT!!
After looking at your video, I don't think that drain hole could spit oil that quick!! Shocked

Back to top

2002 - Silver (Thumper)
2000 - Green (Mad Hamish)
Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose.

IP Logged

AaronMarshall YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 8	Re: Oil started spewing while riding - Newbie Reply #25 - 06/02/15 at 14:08:54 Is anyone on this board from North Carolina (or close - we are in Wilmington, NC)? I could trailer the motorcyle to you to help look at it. Thanks in advance.
Back to top	IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Oil started spewing while riding - Newbie
Reply #26 - 06/02/15 at 16:50:44

Have you pulled everything but the belt and pulley?
You gotta see what is leaking. Get a good,LED, focusing flashlight, wipe out the area, clean it up, I know, it's scary, go slow, look at it, get a mental picture of what you plan on doing,
Look at the manual, Look at the manual,Look at the manual,

Did you hear anything, any clue more than
Started spewing oil.

Ohh, and I asked about your definition of spewing.
Yea, the video, spewing, I agree.

I really want you to win.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

AaronMarshall

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 8

Re: Oil started spewing while riding - Newbie
Reply #27 - 06/18/15 at 09:27:51

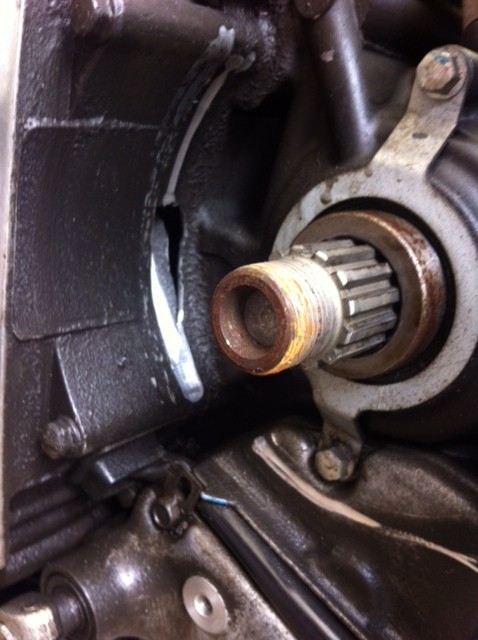

Ok - so I got someone to take off the pulley and here is the problem. I think a screw fell off the silver piece that goes toward the back (the turn signal in the back is on it) and then it got lodged in the belt and cracked that piece. I had been messing with it because i was going to replace the turn signals and I guess I just didnt tighten the screw back tight enough. I feel like an idiot!!!
Am I screwed? The guy that pulled it apart for me says that we can weld it back but that will be expensive and the weld might not hold.
Any other suggestions?

Back to top


IP Logged

swedishbiker Full Member Offline SuzukiSavage.com Rocks! Posts: 119 Växjö Sweden Gender:	Re: Oil started spewing while riding - Newbie Reply #28 - 06/18/15 at 10:07:18 Try chemical metal first.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: Oil started spewing while riding - Newbie
Reply #29 - 06/18/15 at 10:07:31

Clean it up well, roughen the surface up a bit.....and apply JB Weld to the crack. Then let the JB Weld harden thoroughly for 24 hours before you ride the bike. JB Weld is a little bit runny when first mixed, and the directions allow to let it harden 15-20 minutes before you apply it so that it has a chance to stiffen up a bit and won't sag or run.

Then put the pulley back on tightly (torque to specs) and fasten the locking washer.....then put the bike back together and ride it. Don't worry about babying it, as it most likely will hold up just fine. We have a large brush chipper that was hit by a car and it broke the motor mount and put a hole in the block....and the JB Weld repair has been holding fine for the last 6 years.
