Wiring HELP (Read 59 times)

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Wiring HELP 03/17/16 at 20:46:59 Anyone have pictures of WHERE the wiring is routed in under and around the air box and battery box? Belt side was rubbing wiring and I think it was routed wrong by previous owner. Since I have the tins off for paint, I want to fix this issue
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28996 L.A. California Gender:	Re: Wiring HELP Reply #1 - 03/17/16 at 20:54:30 there's a clip on the back side of the bat box for the wiring in that area. very easy to forget and just shove the box back.
Back to top	Versey's Place Tech Section Index IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 807
Palm Beach County, FL
Gender: male

Re: Wiring HELP
Reply #2 - 03/17/16 at 21:10:30

Speaking from experience, you do not want them rubbing the belt. I did a lot of head scratching on the side of the road 120 miles from home one day. Knew it had to be in the neutral / kickstand circuit and got it running again, but it could mess you up and get real expensive away from home. Go out of your way to keep them away from the belt.

IP Logged

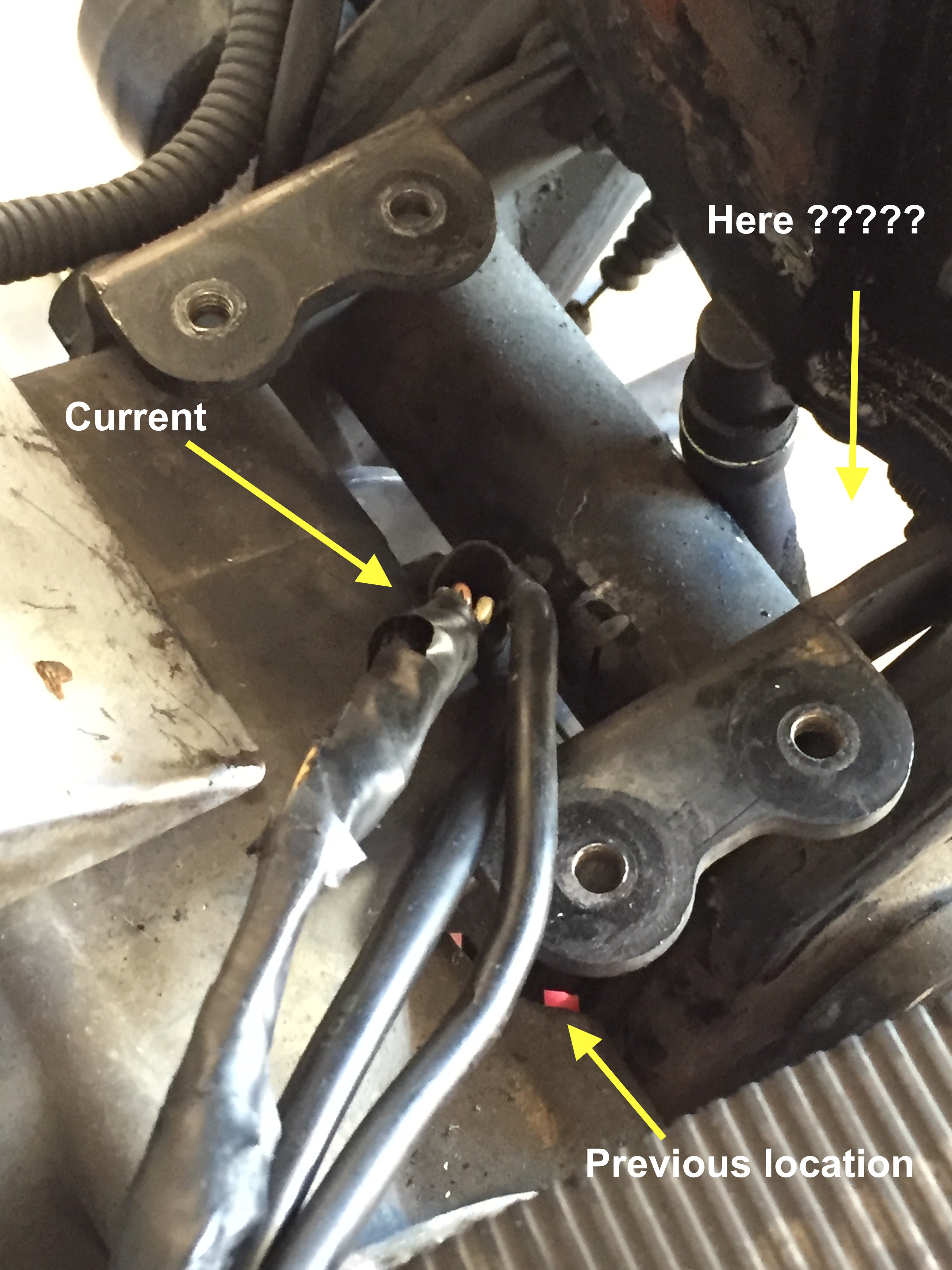

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Wiring HELP Reply #3 - 03/18/16 at 07:53:00 I bought it used, bike originally from Hawaii. It had been apart previously, not sure to what extent. Routing for the wiring harness is screwed up:
Back to top	IMG_0629_copy.jpg -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: Wiring HELP Reply #4 - 03/18/16 at 16:54:01 NEVERMIND ... Routed wiring all by myself. I'm a big boy now.
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged
