Dual pancake air filter setup!
12/07/16 at 07:35:52

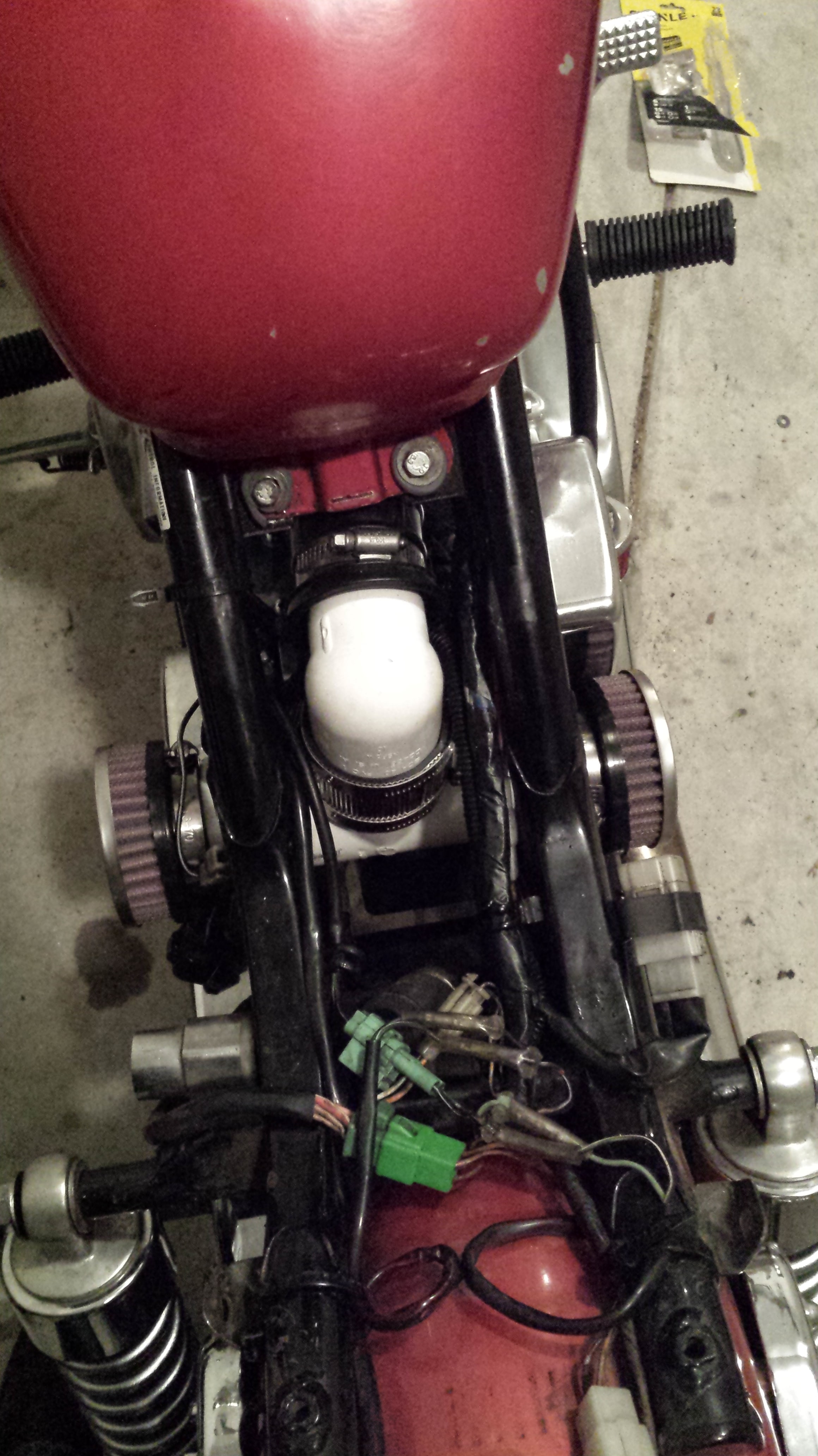

So I just got done throwing this together the other day. Tool from the mighty verslagen's words and made sure to keep to stock air duct coming from the carb to ensure optimum straight airflow. Put together with pvc and rubber connectors. Filters are hand piled with k&n oil, (not spray) and ready to roll. Only issue is now I need to reset and km completely new to this.
Anybody able to tell me how/ what type of jet I need to do. What all do I need to do to make my bike run as best it can with this setup.

The only other time I've seen the dual air filter setup put together is by deleting the rubber duct that is necessary for best performance so I'm hoping I have made the best air flow setup for the savage. In sure it needs some tweaking and I'd love some input. And ofcourse km gonna paint the pipes black ;p

Back to top


IP Logged

Kenny G Serious Thumper Offline SuzukiSavage.com The Singles Club...LOL Posts: 1754 Robson Ranch, Denton, Texas Gender:	Re: Dual pancake air filter setup! Reply #1 - 12/07/16 at 07:51:10 Graven, Lancer can probably get you in the ball park with the jetting that you need. A lot of us are going to be curious about how the dual filters work out for you. Keep the information and pictures coming. Kenny G
Back to top	IP Logged

LANCER Serious Thumper Alliance Member Offline Savage Beast Performance Parts Posts: 10800 Oklahoma Gender:	Re: Dual pancake air filter setup! Reply #2 - 12/07/16 at 08:22:43 Looks like a clean straight forward installation. How does it run ?.
Back to top	IP Logged

Graven754

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 56

Re: Dual pancake air filter setup!
Reply #3 - 12/07/16 at 09:44:25

Well sort of a long story. I thought my fuel and air mixture screw needed adjustment because she wouldn't cranky turned out my battery just didn't have enough juice. So now my mixture is screwy and until the rain stop so I can roll it out of my garage for adjustments I'm dead in the water. She'll crank then die right after.

Back to top

IP Logged

Graven754 Junior Member Offline SuzukiSavage.com Rocks! Posts: 56	Re: Dual pancake air filter setup! Reply #4 - 12/07/16 at 09:45:19 Also what's a good thing for me to keep handy incase I get into some rain. If it's heavy I'll pull over but if I have to ride in some lite rain what do I cover the filters with?
Back to top	IP Logged

Kenny G

Serious Thumper

Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male

Re: Dual pancake air filter setup!
Reply #5 - 12/07/16 at 12:17:05

Graven,

Lancer can probably answer your question.

I am thinking that a piece of sheet meatal to cover the front and top of the air filters would do the job.

Look at the older Sporsters bell shaped cover over the air filter, may be another way to do it. I rode Sporsters in the rain and never had any trouble with water getting into the carburetor.

Kenny G

Back to top

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28995
L.A. California
Gender: male

Re: Dual pancake air filter setup!
Reply #6 - 12/07/16 at 12:47:38

Mine are a little larger and I don't have an issue with light rain.
But they are foam and if yours are K&N then I would not worry about it.
The oil should repel the water.
Even then, a little moisture won't hurt it, just don't put it away wet.

I would bring the outside even with the frame, then you might not have any issue with it. but a HD-isk bell cover should do the trick. But they're under your legs so they don't get to wet anyway.

Back to top

Versey's Place
Tech Section Index

IP Logged

LANCER Serious Thumper Alliance Member Offline Savage Beast Performance Parts Posts: 10800 Oklahoma Gender:	Re: Dual pancake air filter setup! Reply #7 - 12/07/16 at 18:23:04 I was going to say the same basic thing that Verslagen did.
Back to top	IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Dual pancake air filter setup! Reply #8 - 12/07/16 at 18:43:32 I suppose the 2 90° bends aren't helping anything but this engine should breathe ok with twice the filter capacity.
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5400 Manteca , CA Gender:	Re: Dual pancake air filter setup! Reply #9 - 12/07/16 at 19:27:25 Very cool , I like it ! Got any side pics with seat on ?
Back to top	The Topic Terminator IP Logged

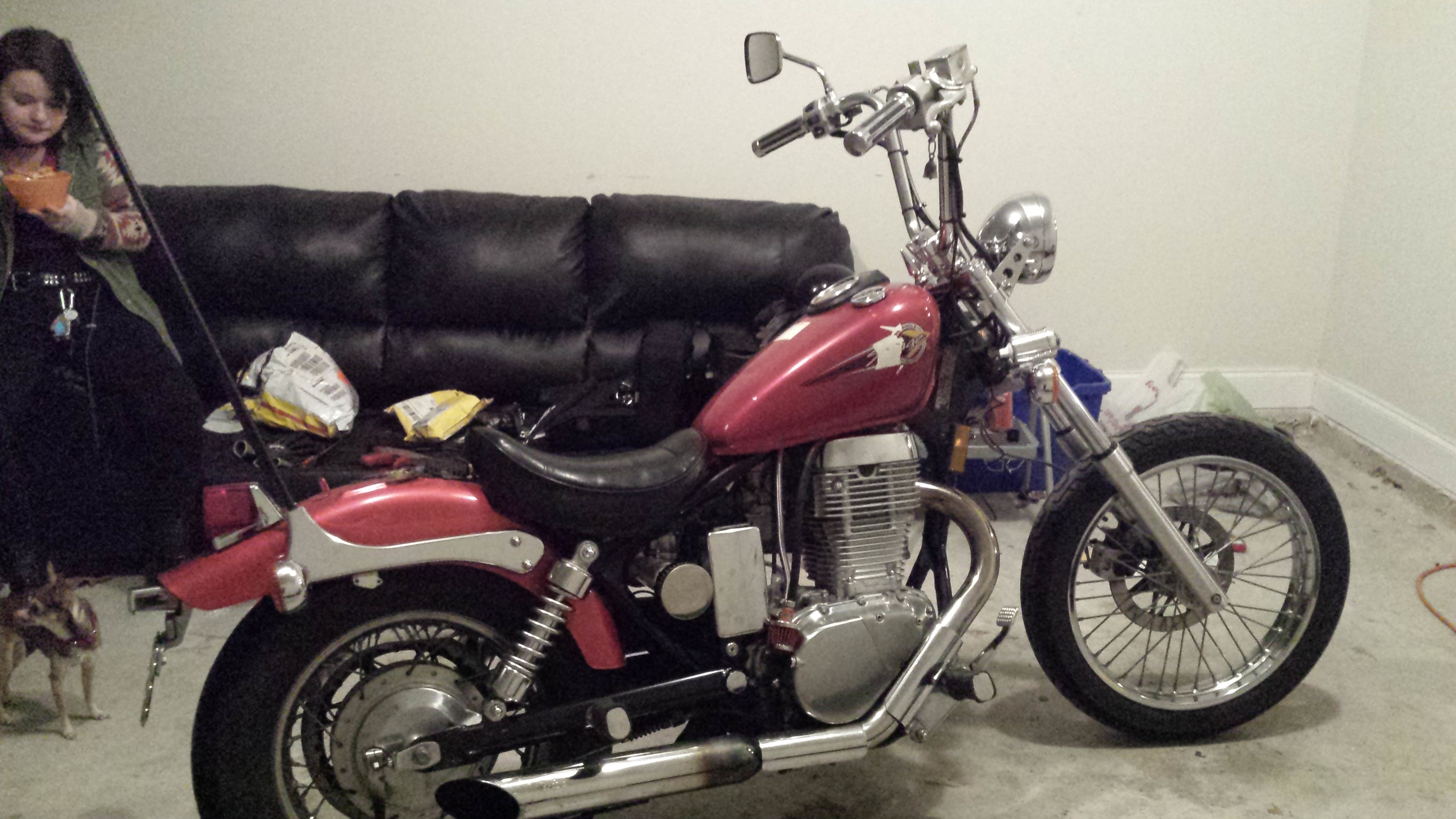

Graven754 Junior Member Offline SuzukiSavage.com Rocks! Posts: 56	Re: Dual pancake air filter setup! Reply #10 - 12/07/16 at 19:55:56 Only side pic I have.
Back to top	20161206_211901-min.jpg IP Logged

Graven754 Junior Member Offline SuzukiSavage.com Rocks! Posts: 56	Re: Dual pancake air filter setup! Reply #11 - 12/07/16 at 19:57:41 Also, verslagen, they are not k&n's. They are exact replicas of them by Ryca the ones they sell for the cafe racer mod. I did use k&n oil to oil them with.
Back to top	IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Dual pancake air filter setup! Reply #12 - 12/07/16 at 20:24:25 I love it! a girl eating a bowl of ? on the couch. A dog wandering by. A normal day! And a motorcycle in the living room!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5400 Manteca , CA Gender:	Re: Dual pancake air filter setup! Reply #13 - 12/07/16 at 20:54:14 I have daughters & chihuahua too! But the RYCA got built in the middle bedroom !!
Back to top	The Topic Terminator IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Dual pancake air filter setup! Reply #14 - 12/07/16 at 20:59:29 Women don't eat ????, they eat !!!!, fewer calories and more fun.
