SuzukiSavage.com - Tips for removing hand grips

SoC Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 516 New Jersey Gender:	Tips for removing hand grips 05/24/17 at 21:16:05 Just got a new pair of of Highway Kawk window drag bars. In doing install it obviously requires remving everything. For the grips, assume a screw driver, maybe some compressed air through a tube nozzle. Anything special I need to know about removing throttle? Thanks.
Back to top	IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Tips for removing hand grips Reply #1 - 05/24/17 at 21:29:14 Unless you are trying to save the old ones, cut with a single edge razor. I use grip glue on the new ones. Having a grip come off in the middle of a turn can be distracting.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Tips for removing hand grips Reply #2 - 05/25/17 at 03:47:54 Lift the inside of the grip with a screwdriver and squirt some WD40 down there. Twist the grip a bit to spread it around. It'll often just about fall off.
Back to top	S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

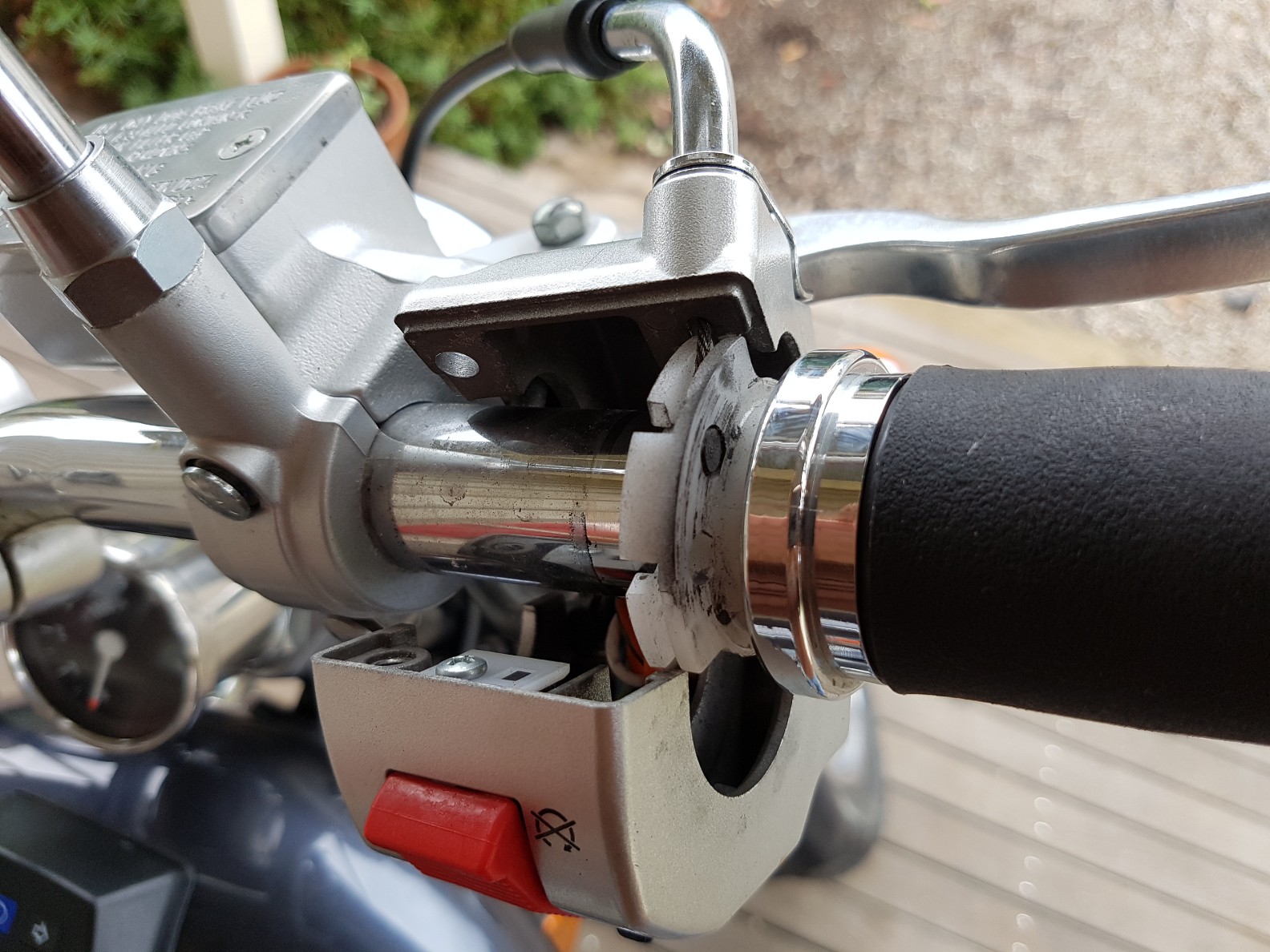

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Tips for removing hand grips Reply #3 - 05/25/17 at 03:51:50 The throttle is just a plastic tube that is held in place by the control box. Undo the bolt on the control box, unhook the cable, and the tube just slides off.
Back to top	IMG_20170525_205129.jpg S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Tips for removing hand grips Reply #4 - 05/25/17 at 06:48:23 + 1 on the squirt of WD40.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: Tips for removing hand grips
Reply #5 - 05/25/17 at 07:03:10

I used a Phillips/JIS style screwdriver with a round stem. I work the tip of the screwdriver under the grip for the length of the grip. Once I have it all the way in, I use the red WD40 tube and spray along the screwdriver. Then I roll and move the screwdriver around the grip to loosen it from the handlebar (left side) and from the throttle tube (right side). I can generally get the grips off undamaged.

When putting on new grips you can use the WD40 to get them slid on, the set the bike in the sun and let the WD40 go away....and most times the grips will be stuck on and not move around - the solvent in the WD40 seems to soften the rubber and make it sticky.

Back to top

Someday I will be old......But not today!

IP Logged

SoC Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 516 New Jersey Gender:	Re: Tips for removing hand grips Reply #6 - 05/25/17 at 08:16:01 IslandRoad thanks for the picture, now I know what to expect. I will probably get some new grips as mine are original from '03'. I do like them so probably look to replace with same.
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Tips for removing hand grips Reply #7 - 05/25/17 at 08:18:59 SoC wrote on 05/25/17 at 08:16:01: IslandRoad thanks for the picture, now I know what to expect. I will probably get some new grips as mine are original from '03'. I do like them so probably look to replace with same. If you are just removing and replacing the grips - you don't need to take the throttle assembly apart.
Back to top	Someday I will be old......But not today! IP Logged

IslandRoad

Serious Thumper

Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male

Re: Tips for removing hand grips
Reply #8 - 05/25/17 at 12:56:40

Dave wrote on 05/25/17 at 08:18:59:

SoC wrote on 05/25/17 at 08:16:01:

IslandRoad thanks for the picture, now I know what to expect. I will probably get some new grips as mine are original from '03'. I do like them so probably look to replace with same.

If you are just removing and replacing the grips - you don't need to take the throttle assembly apart.

That's true. However I had a hard time getting the grip off the ridges in the throttle. I felt like I might damage something. Those ridges are high, and the grip on that side has grooves on the inside that match the ridges. In the end I took the tube and grip off so I could get at it more easily.

Back to top

S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.

IP Logged

SoC Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 516 New Jersey Gender:	Re: Tips for removing hand grips Reply #9 - 05/25/17 at 21:02:33 Thanks all, my plan is to start taking it apart over the weekend and put the new bars on next week. Will get some new grips to go with new bars. I like the originals so will try to get another set.
Back to top	IP Logged

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Tips for removing hand grips Reply #10 - 05/25/17 at 21:27:55 Post some pics when your're done. Would love to see how it turns out
Back to top	S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

Tattedchris YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 2 Spencer, Indiana Gender:	Re: Tips for removing hand grips Reply #11 - 07/23/23 at 07:27:37 Thank for the pictures. Was struggling. Just left swap meet with some new grips.
Back to top	IP Logged

Yoshi Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 880 LongIsland, N.Y. Gender:	Re: Tips for removing hand grips Reply #12 - 07/25/23 at 18:45:52 The easiest way to get the throttle grip off is to take a coat hanger rod and jam it all the way inside, bent it into a z and spin it, it'll break all the glue apart then you can easily pull the grip off
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28996 L.A. California Gender:	Re: Tips for removing hand grips Reply #13 - 07/25/23 at 22:00:51 add some wd40 to this and bobs your uncle.
Back to top	Versey's Place Tech Section Index IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1459 surrey, b.c. Gender:	Re: Tips for removing hand grips Reply #14 - 07/26/23 at 01:49:06 WINDEX ! Cheers!
Back to top	IP Logged
