DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: Cafe Build Reply #165 - 12/17/19 at 21:15:48 That's a cool lookin run of header pipe Steely. What sort of muffler do you have in mind?
Back to top	Knowledge is power. IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #166 - 12/18/19 at 06:47:50 I've got a supertrapp disc only end cap on for now just to not run straight pipes in the garage but I'll end up welding on the supertrapp I had on before.
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Cafe Build Reply #167 - 12/18/19 at 07:02:38 Has anyone else listened to the engine noise you posted? I still think it's a bit noisy. Like timing chain tension or (more likely) valve lash out of adjustment. Did you re-adjust them after you fixed your timing issue?
Back to top	IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #168 - 12/18/19 at 07:15:24 I did readjust valve clearance but I'm going to recheck them today. Adjusting them with tbe engine out was a piece of cake but now that its in the frame its a real PITA. Any helpful tricks for getting the feelers down in there?
Back to top	IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: Cafe Build
Reply #169 - 12/18/19 at 07:19:42

The clanging sound ? maybe the piston rings still haven't even really begun to seat yet , your running the motor for ten min. ,with no load ,isn't cutting it . You need to go out and ride it. You could just set the idle to about 1500 rpm , and run the bike up and down local streets ,using no more than 3rd gear until the motor's hot , turn it off allow it to cool ,and repeat . I wouldn't be starting the bike to just let it idle , that and high revs , when the OIL isn't fully up to temperature , increases pressure but decreases oil flow and may be doing more harm than good.

Back to top

my old work mates called me MacGyver

IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #170 - 12/18/19 at 08:26:15 Good deal Batman, thanks! Gameplan for now is: get the wiring all tucked away again, attach the rear brake pedal to the drum, fab up a heat shield for the pipe. The pipe run is perfect for riding position, no problems there. But as soon as you put your feet down the pipe is right there.
Back to top	IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28996
L.A. California
Gender: male

Re: Cafe Build
Reply #171 - 12/18/19 at 08:47:06

ZSteele wrote on 12/18/19 at 07:15:24:

I did readjust valve clearance but I'm going to recheck them today. Adjusting them with tbe engine out was a piece of cake but now that its in the frame its a real PITA. Any helpful tricks for getting the feelers down in there?

https://www.ebay.com/p/536736551?iid=254162583098&chn=ps&norover=1&mkevt=1&mk...

Back to top

Versey's Place
Tech Section Index

IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #172 - 12/18/19 at 09:36:15 Wouldn't we want a .003/.004 or a .004/.005?
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28996 L.A. California Gender:	Re: Cafe Build Reply #173 - 12/18/19 at 11:50:42 ZSteele wrote on 12/18/19 at 09:36:15: Wouldn't we want a .003/.004 or a .004/.005? Yes, 4/5 is the one I have.
Back to top	Versey's Place Tech Section Index IP Logged

ZSteele

Senior Member

Offline

I'll finish it
tomorrow

Posts: 253

Re: Cafe Build
Reply #174 - 12/19/19 at 15:48:25

1st ride done. Clutch needs adjusting and I have no rear lights or brakes but for just a quick around the block the bike feels great. Super solid thump. I do hear jingling but I have a suspicion that its the old control mount that's slipping around without a chop or spacers. Ive got tomorrow off so I'll get some work done and put a couple more miles on her and update you guys then.

Back to top

IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #175 - 12/23/19 at 17:15:58 Ok, now that I'm not sick or completely locked up from my back spasm I got some work and riding in. After putting maybe 45 minutes around the neighborhood some of the engine noise has gone down. I can distinctly hear the camchain wurring inside now. Thoughts on that?
Back to top	IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Cafe Build Reply #176 - 12/23/19 at 21:26:45 If you worked on the tensioner, and reused the clip that holds the body ,you might check that, the body can't move off that stud ,but it can misalign (twist ) the chain causing noise.
Back to top	my old work mates called me MacGyver IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #177 - 12/24/19 at 06:40:30 Will do! Might end up getting a verlslavy while I'm there.
Back to top	IP Logged

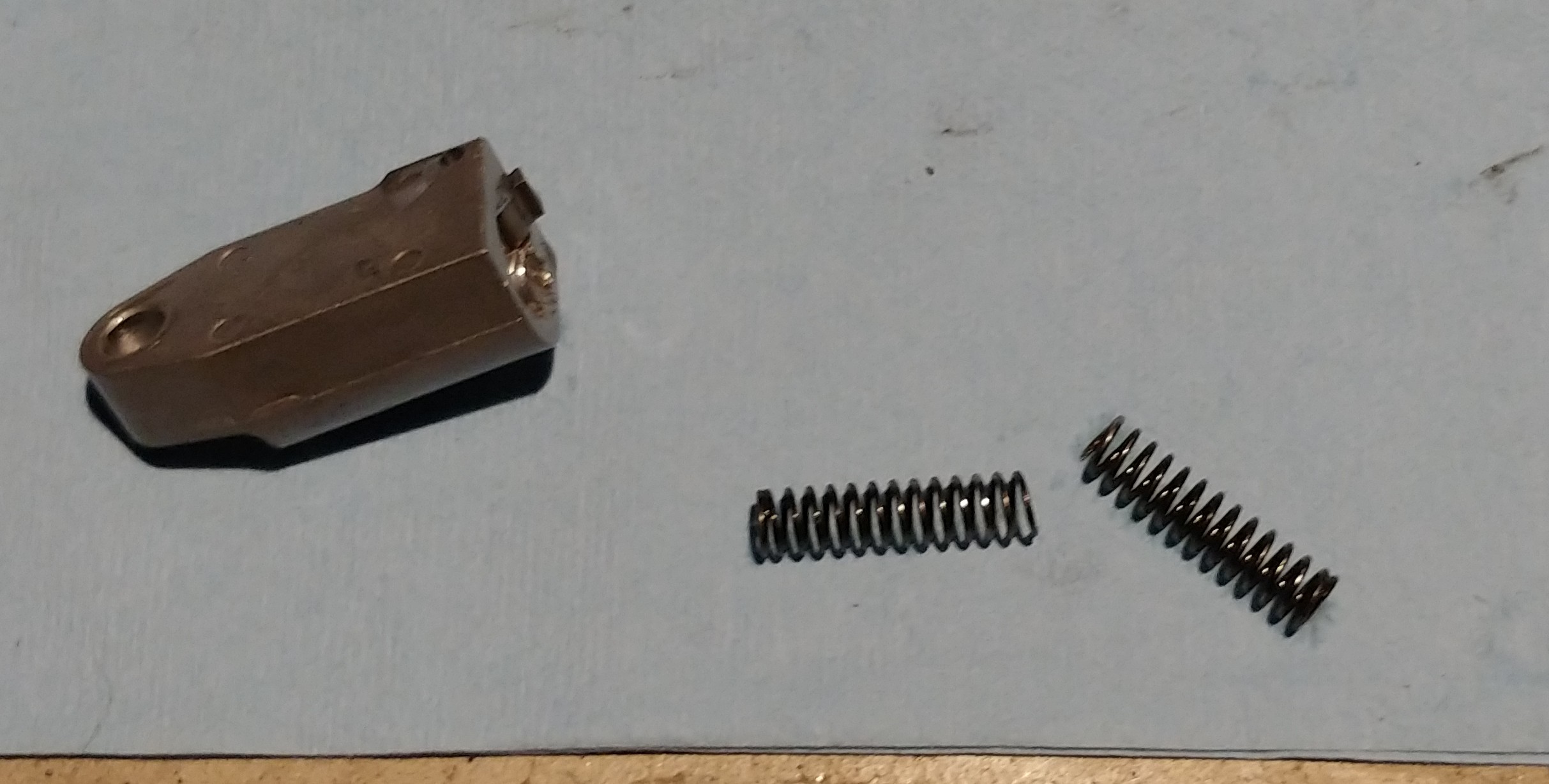

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #178 - 01/13/20 at 16:55:20 Well I found the jingling sound. Looks like a verslavy is on the docket! In other news I bought my wife an 03 for her birthday, anyone have a working solenoid for sale?
Back to top	0113201848_HDR.jpg IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Cafe Build Reply #179 - 04/02/20 at 16:53:18 Almost there folks, its been a good minute since an update so heres me saying, "thumpy rides, but shes not quite road legal yet..." Got a verslavy all tucked away, thanks Versy! I'll definitely be throwing one in my wifes build once we get that rolling. The peace of mind is worth a much bigger pricetag than he asks for.
