SuzukiSavage.com - Rear Pulley Wobble Fix

Tocsik

Serious Thumper

Offline

the singularity

Posts: 1206
Denver, CO
Gender: male

Re: Rear Pulley Wobble Fix
Reply #120 - 07/10/21 at 09:02:47

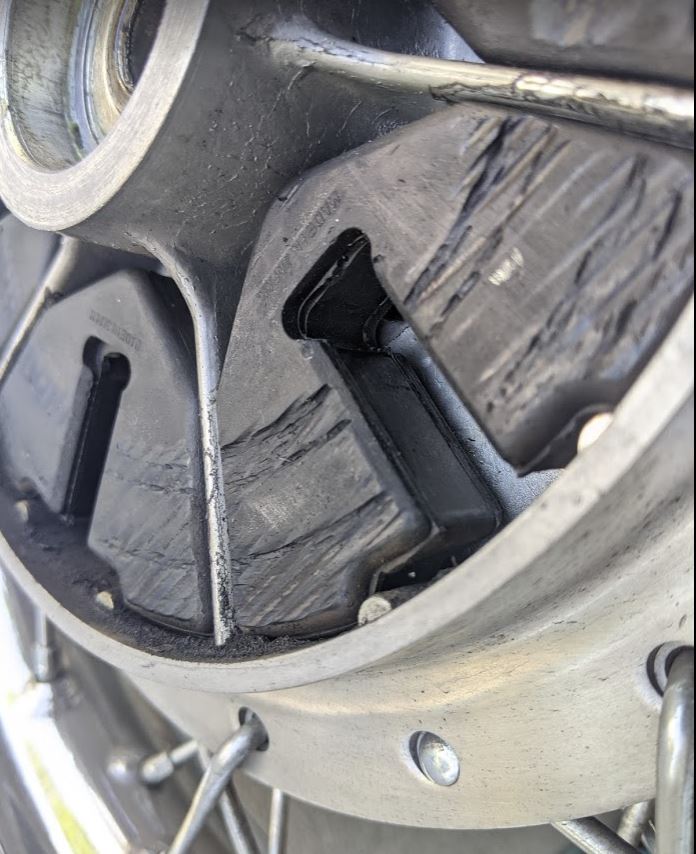

I have my bearing in hand and will be getting my spacer machined with the shoulder. I notice some deep grooves in the rear hub rubber dampers. There must have been more play than I thought.

Just wondering, should I go ahead and leave the rubber floor mat shim in place after replacing the bearing? Or will that be too thick or otherwise problematic once the double bearing is in place?

Back to top


IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4471 Honolulu	Re: Rear Pulley Wobble Fix Reply #121 - 07/10/21 at 10:23:45 All you need is the duplex bearing and the spacer. Leave the rubber shims out.
Back to top	Knowledge is power. IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1206 Denver, CO Gender:	Re: Rear Pulley Wobble Fix Reply #122 - 07/11/21 at 09:52:59 Is it ok to put the hub and pulley assembly in the BBQ together or best to separate?
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear Pulley Wobble Fix Reply #123 - 07/11/21 at 12:04:42 Heat gun or hair drier. Direct the heat.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

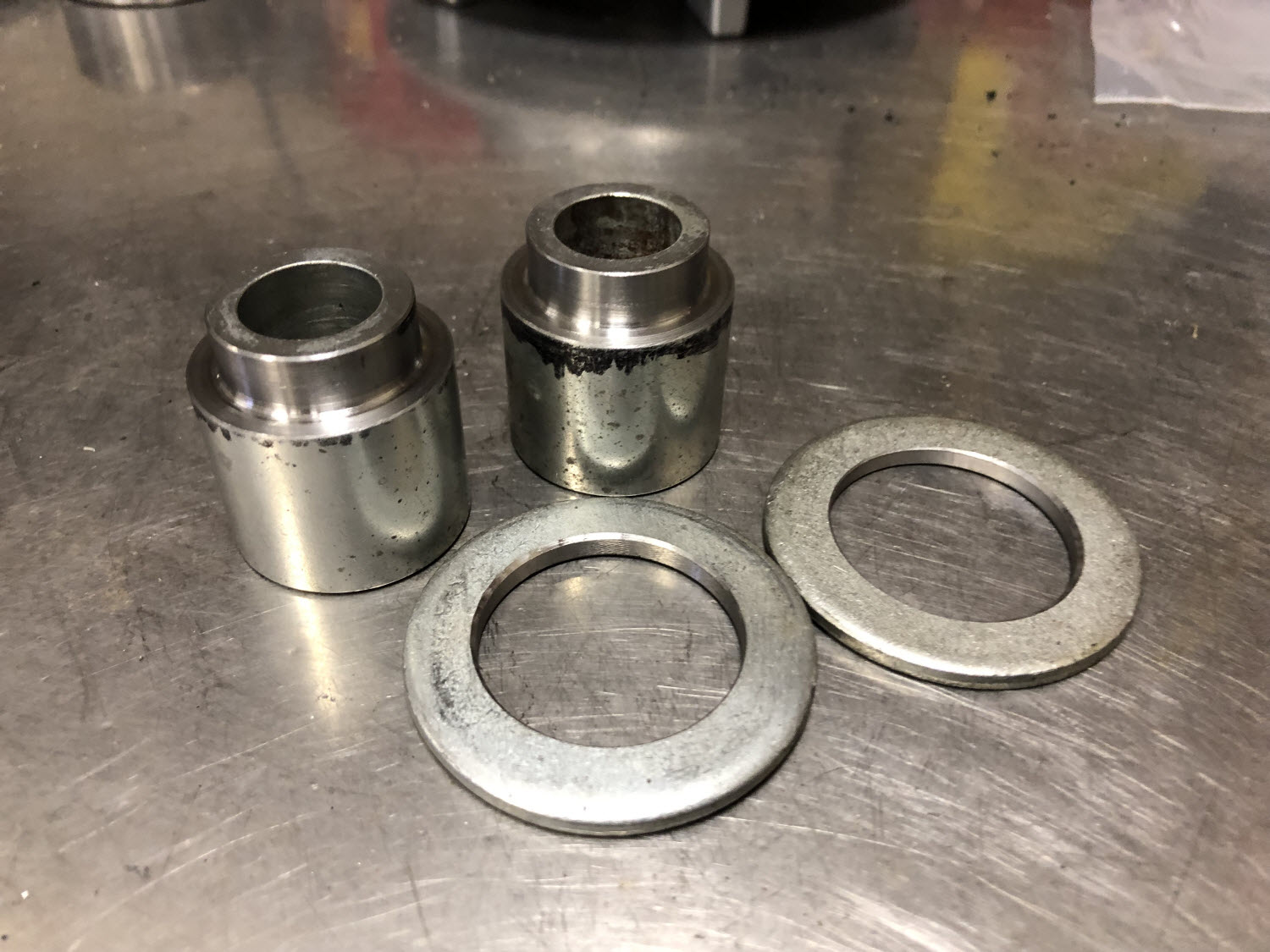

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Rear Pulley Wobble Fix Reply #124 - 12/29/21 at 14:39:18 Somehow I couldn't resist the temptation to "over engineer" this......Anything worth doing is worth overdoing. I thought providing a little protection for the bearing seal would be nice. So I cut down the spacer for the new double bearing, and I machined a couple of washers to slide over the spacer.
Back to top	IMG_9571.JPG Someday I will be old......But not today! IP Logged

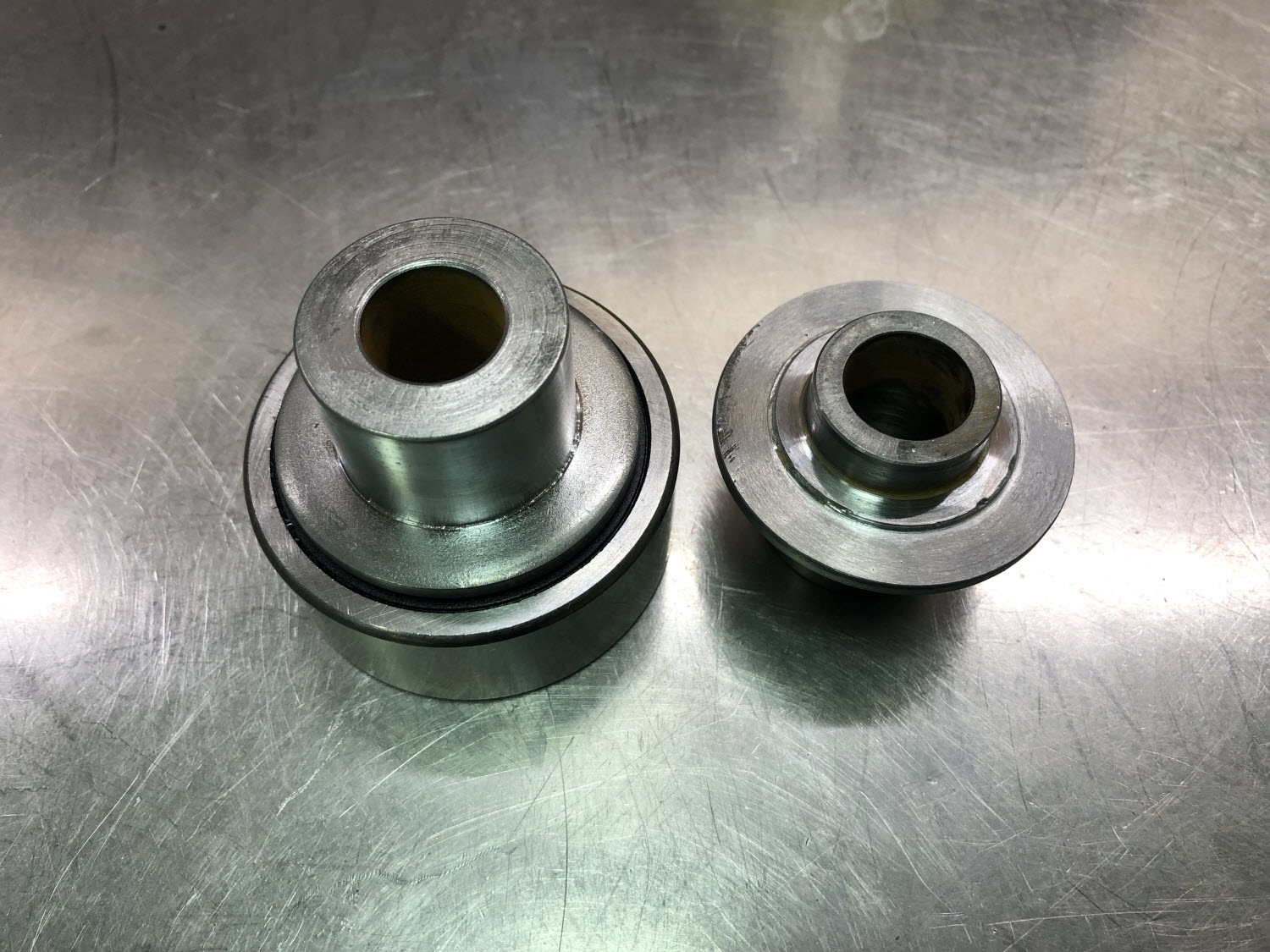

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Rear Pulley Wobble Fix Reply #125 - 12/29/21 at 14:41:10 Then I soldered the washers onto the spacers. (I think I am one of the few fellows who still uses solder to attach steel parts together). I have some stuff going to get new Zinc Chromate plated - so I will throw these in and get them plated before I install them.
Back to top	IMG_9572.JPG Someday I will be old......But not today! IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear Pulley Wobble Fix Reply #126 - 12/29/21 at 14:50:58 Nice work Dave!
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Rear Pulley Wobble Fix Reply #127 - 12/29/21 at 15:29:54 Armen wrote on 12/29/21 at 14:50:58: Nice work Dave! WTF? You can't congratulate his work.. He didn't even drill it full of HOLES!!
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

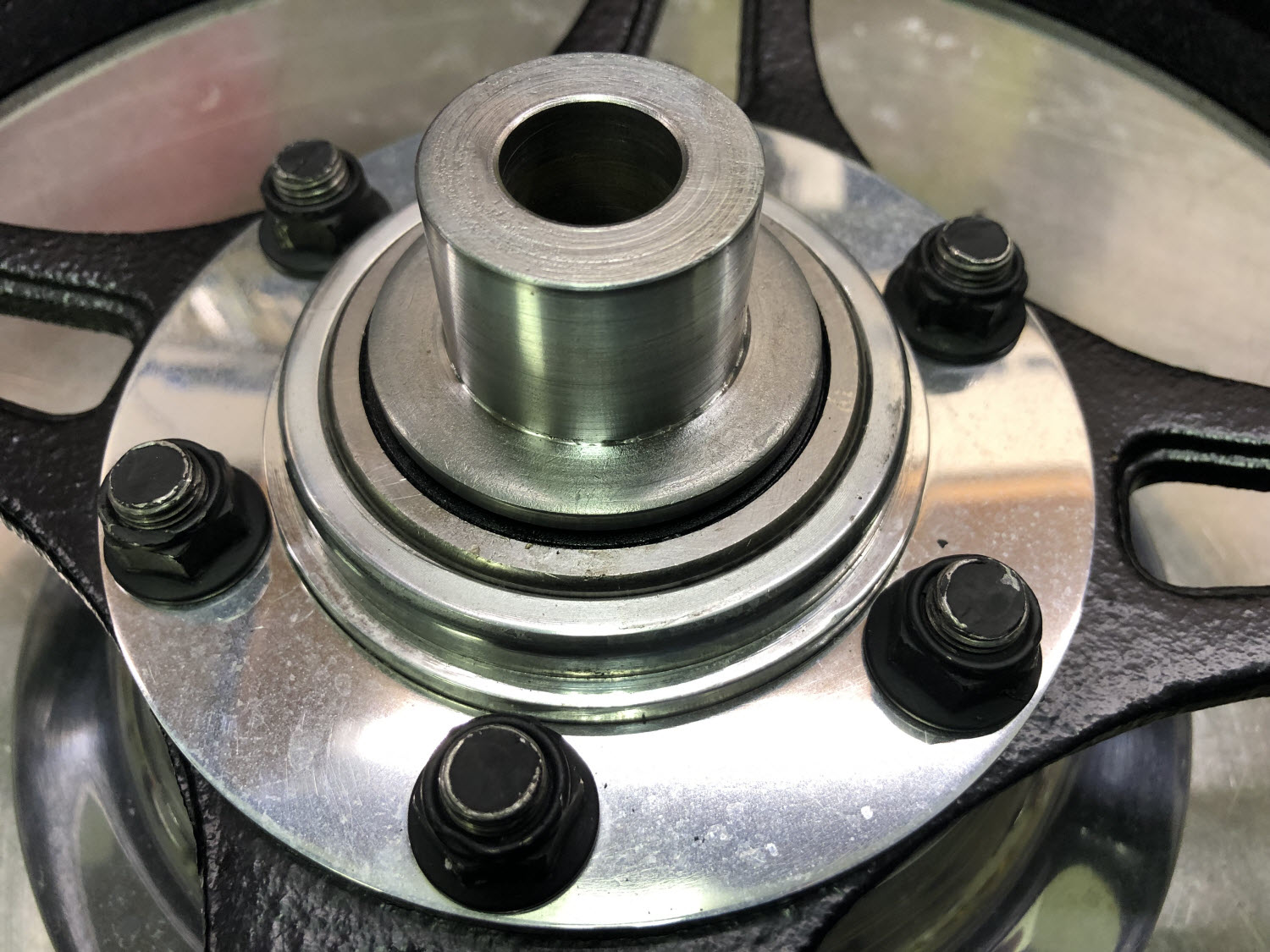

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Rear Pulley Wobble Fix Reply #128 - 12/29/21 at 16:59:03 JOG: It is likely the washer did add an ounce or two. Can I let a pound of air out of the tire to make the bike lighter? Here is what it looks like assembled.
Back to top	IMG_9575.JPG Someday I will be old......But not today! IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: Rear Pulley Wobble Fix Reply #129 - 12/29/21 at 18:11:21 Great job, Dave!
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

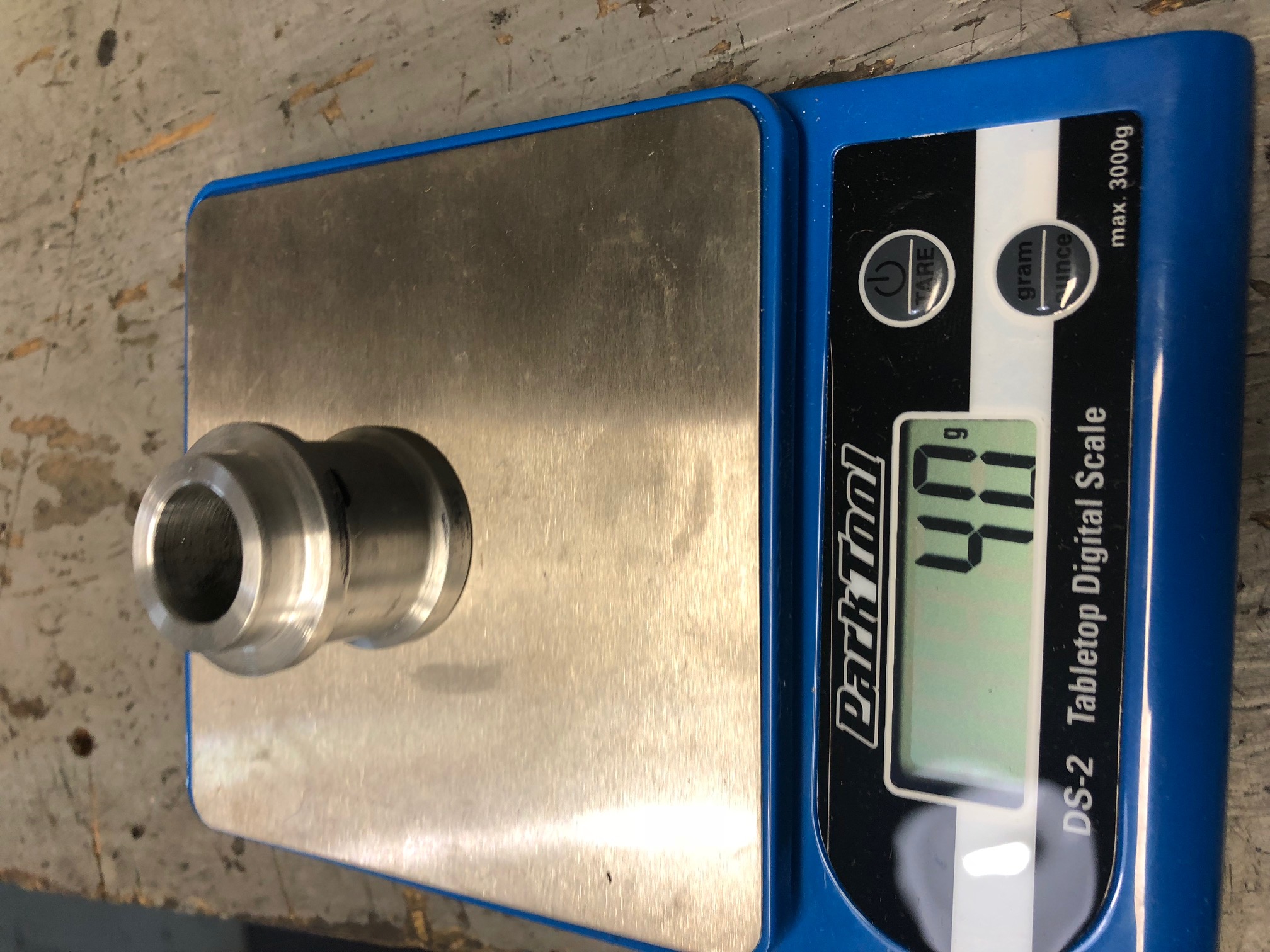

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear Pulley Wobble Fix Reply #130 - 12/29/21 at 19:35:33 Well, Justin, I actually made mine out of 7068 aluminum. But, if you are going to use the steel one, Dave's is pretty sweet.
Back to top	Savage_cut_aluminum_rear_spacer_002.jpg In theory, theory and reality are the same. In reality, they aren't... IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Rear Pulley Wobble Fix Reply #131 - 12/30/21 at 00:08:04 Heck yeah, Dave.. You can probably drop less than a whole pound
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Rear Pulley Wobble Fix Reply #132 - 12/30/21 at 02:55:25 Armen wrote on 12/29/21 at 19:35:33: Well, Justin, I actually made mine out of 7068 aluminum. I bought some aluminum to make spacers......it hasn't arrived yet.
Back to top	Someday I will be old......But not today! IP Logged

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear Pulley Wobble Fix Reply #133 - 12/30/21 at 06:02:06 Armen, I haven’t forgotten about returning the spacer my bad. Also am I to understand you guys left the dampers out of the hub? What rubber shims are you guys referring to?
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

Armen

Serious Thumper

Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1454

Re: Rear Pulley Wobble Fix
Reply #134 - 12/30/21 at 06:09:54

Duderino,
Remove the original left side seal and bearing in the pulley carrier.
Install the double row bearing and new left spacer (you can Loctite the spacer into the bearing so it doesn't fall out).
Leave everything else in the rear wheel the same. Def leave the dampers in the hub.
Don't worry about the rubber shims. It doesn't apply to you.
Make sense?

Back to top

In theory, theory and reality are the same. In reality, they aren't...

IP Logged
