The health of your regulator/rectifier with LED's (Read 437 times)
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #15 - 08/09/19 at 09:25:35

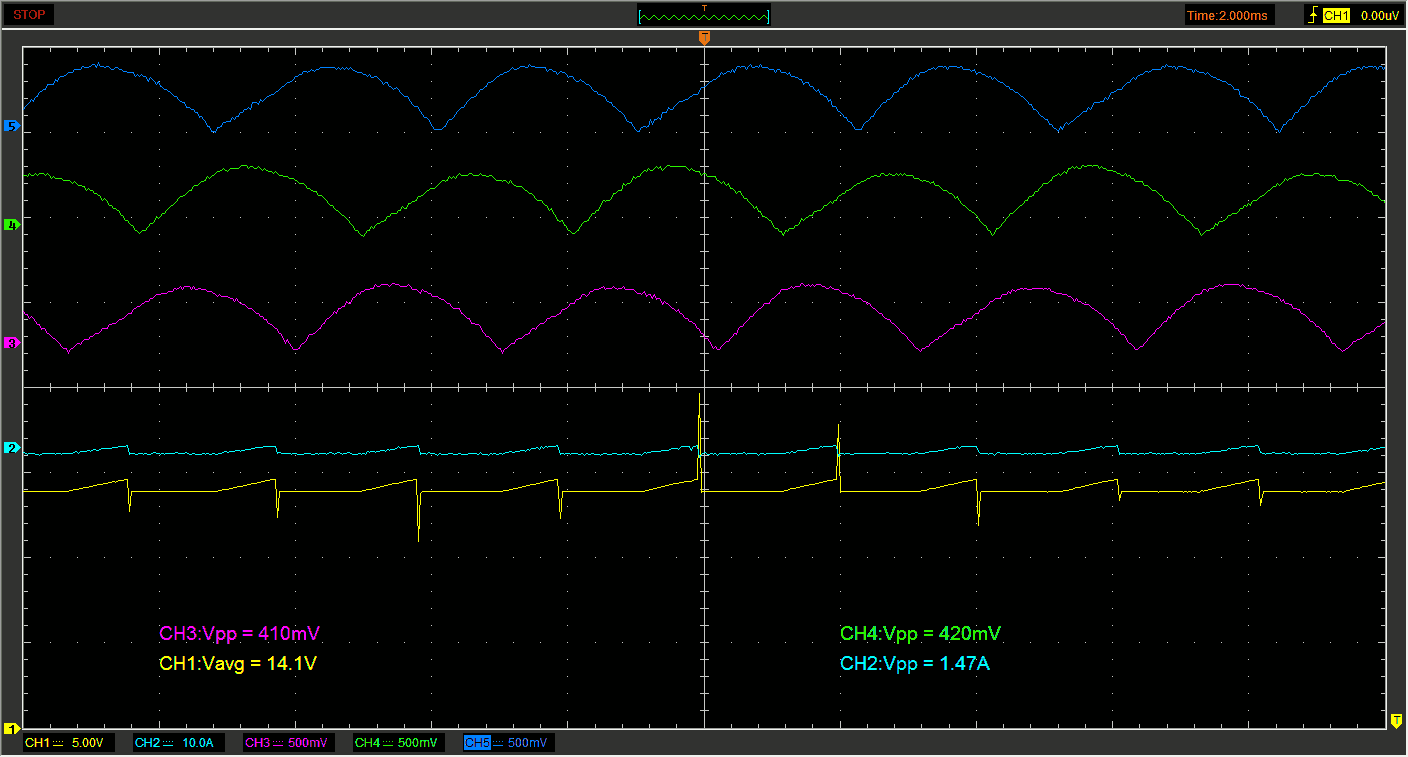

My plan was to make some measurements yesterday but my battery was not properly charged so I had to wait until today to start it.

Not sure I got the range for the clamp meter correct but it doesn't really matter since the main question is IF there is a larger load on the regulator or maybe even alternator when using LED lights and here are the numbers with the headlight off
Back to top


  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #16 - 08/09/19 at 09:26:49

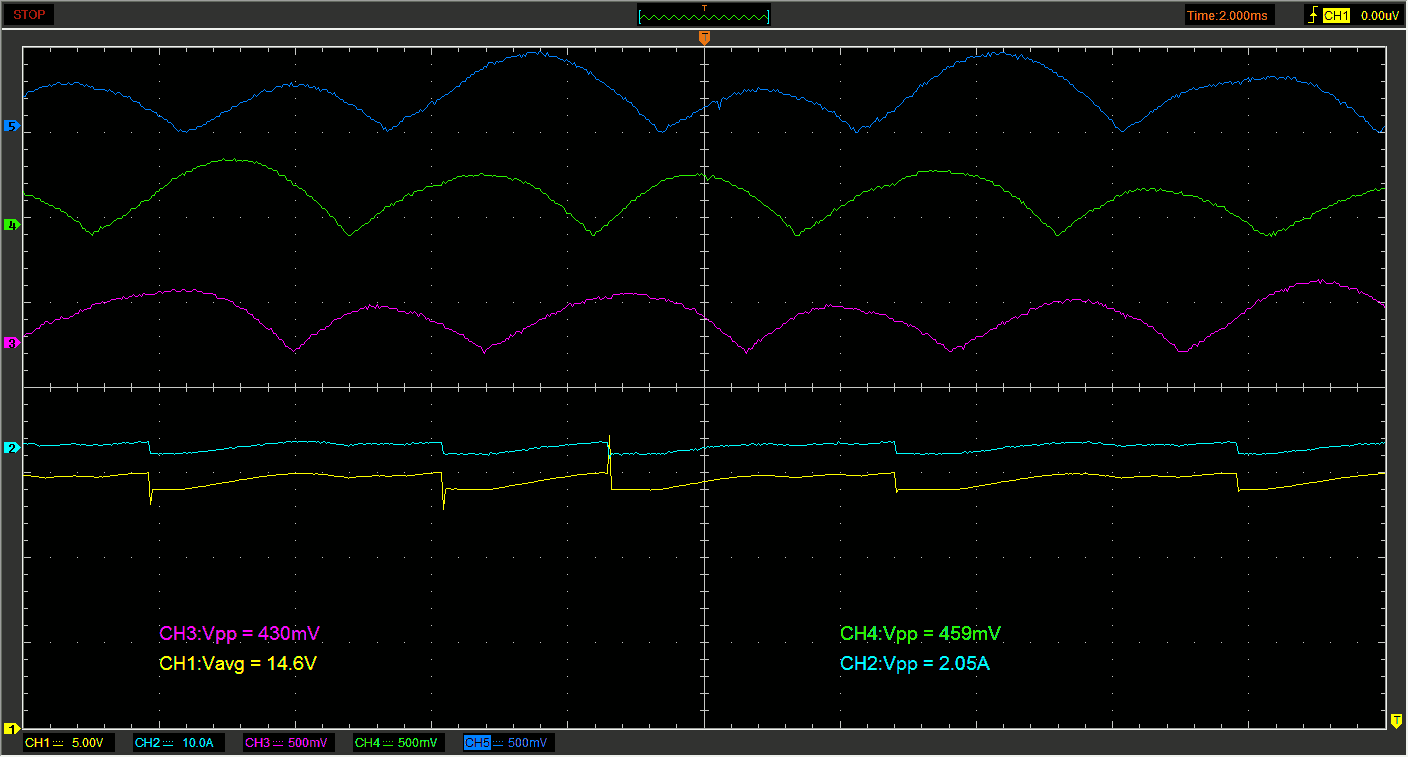

And here are the numbers when I switched the head light on. I must confess I am not sure if my high beam was on
Back to top


  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #17 - 08/09/19 at 09:29:40

From my previous calibration of the three phase current transformer I can say with some degree of certainty and accuracy that the amperage going through the three wires when the light was of, was about 11.3 A and with the light on it was about 12.2 A

It does not seem to hurt the regulator to use LED lights if I interpret the results correctly

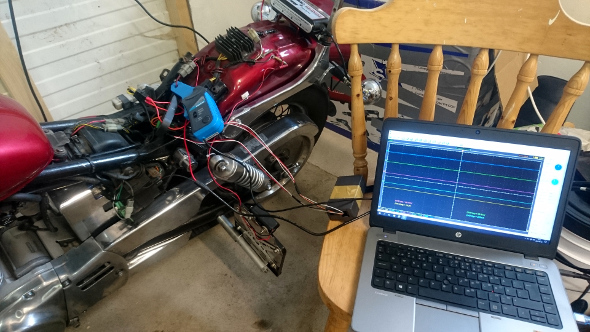

Here is a picture of my setup
Back to top


  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #18 - 08/09/19 at 09:35:27

To explain the different oscilloscope channels and number:

CH1 was connected between the negative terminal of the battery and the red wire coming from the regulator

CH2 is the clamp meter to measure the DC current going through the red wire from the alternator

CH3-5 are the three AC phases from the alternator. Each of the three current transformers are connected directly to a schottky bridge rectifier and then a burden resistor of 100 Ohm. What the display shows is the mV output over the burden resistor so 420mV over the 100 Ohm resistor equals 4.2 mA and since I have calibrated the setup (not with 100% accuracy) with another clamp meter I know roughly what current is going through the cables.

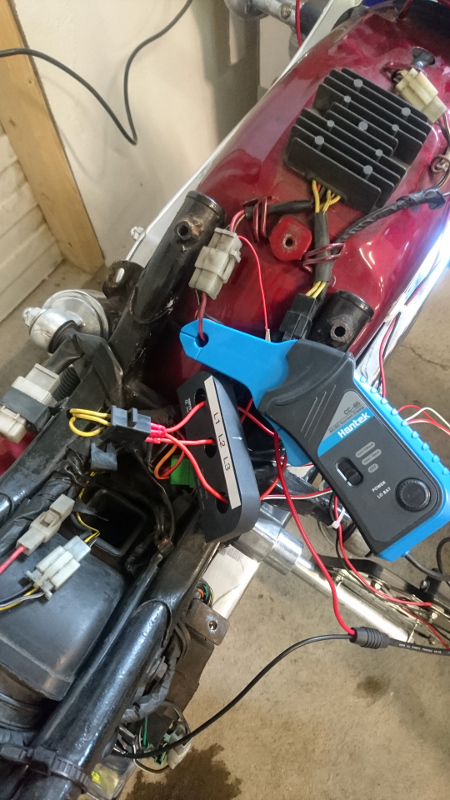

Here is closeup of the current transformer and the clamp meter
Back to top


  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #19 - 08/09/19 at 09:37:59

Please let me know if you would like me to check anything else since I left everything connected so it's easy for me to change range, time base or whatever you want. I should also say the the value for voltage was "mean value", the value for current from the clamp meter was peak if I'm not mistaken and the value displayed for CH3 and CH4 was peak since that is how I made the initial calibration
Back to top


  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4598
Honolulu
Re: The health of your regulator/rectifier with LE
Reply #20 - 08/09/19 at 17:29:56

Kamelryttarn, that is an impressive array of instrumentation.  Thanks for taking the time to dig into the system and share the results.  I wish I was smart enough to understand all this electrical stuff.  Myself, I don't trust electrons.  They're sneaky little devils.  I mean, like, have you ever seen an electron? Wink

I guess its good to have a handle on current and wattage and voltage, and just what those values are doing under varying operating conditions, but it seems to me that the original question centered around elevated temperature resulting from the regulator dumping more energy.

My bike is currently engineless.  If it was operational, I would do a simple test to determine if the regulator ran hotter when the headlight was disconnected.

Start the test with the regulator at ambient temperature.  Take the three 6mm bolts out of the seat, put the seat in place, and go for a ride of predetermined length & speed & time.  Pop the seat off and shoot the regulator with an IR thermometer.

Let it cool down until the regulator is back at ambient.  Disconnect the headlight.  Then repeat the test ride (same length, speed, time).  Pop the seat off and shoot the regulator with the same IR thermometer.

Did it run hotter, the same, or cooler?

Of course, if it runs hotter with the light disconnected, we will be faced with the question "how hot is too hot?".
Back to top



Knowledge is power.
  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #21 - 08/09/19 at 22:13:57

My situation is a bit complicated. Since I don't have a motorcycle drivers license I am not allowed to take my bike out for a ride solo. I need to have an instructor with me until I finish my education and get my license. I can tinker with the bike all I want.

The fact that the current flowing through the circuit is lower when the system load is lower (when the lights are turned off) indicates that the heat buildup which is basically what kills the regulator is also lower meaning that converting the bike to LED would actually PROLONG the life of the voltage regulator and I would suspect even the alternator.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18599
Camp Springs, Kentucky
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #22 - 08/10/19 at 04:05:06

RocketScienceSmurf wrote on 08/09/19 at 22:13:57:
The fact that the current flowing through the circuit is lower when the system load is lower (when the lights are turned off) indicates that the heat buildup which is basically what kills the regulator is also lower meaning that converting the bike to LED would actually PROLONG the life of the voltage regulator and I would suspect even the alternator.


Not sure that scenario is what actually happens - the current understanding is as follows (and it may be innaccurate).

The output from the rotor/stator is dependent only on engine rpm.....it makes low amperage at low rpm and more amperage as the RPM increases.  The rectifier/regulator converts that power from AC to DC, and then regulates the voltage and current that goes to the battery and electrical system.  Excess power is run to a resistor in the regulator/rectifier and burned off as heat.

The belief is that reducing the electrical demand increases the amount of power that needs to be disposed of as heat......and if too much power is diverted the regulator/rectifier may suffer an early demise.
Back to top



Someday I will be old......But not today!

  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #23 - 08/10/19 at 05:26:47

I concur that the power goes up with RPM (as does the frequency) but everything points to the current being lower with a LED light than incandescent that draws more power I still believe that even at high rpms LEDs are preferable to traditional bulbs.

Switching losses at the higher frequencies also increases so if life expectancy of the regulator is of concern, I think I would recommend keeping rpms low. It would probably also be possible to lighten the load by putting power resistors on the three leads coming from the stator to form sort of a voltage divider to lower the voltage even more but then one would have to make sure there is still enough juice left to charge the battery AND power all the electronics satisfactory.

Is it possible/safe to run the bike with the alternator not connected to the regulator? If so, I could measure the maximum voltage from the alternator and perhaps figure out a reasonable resistor value to try with.
Back to top


  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #24 - 08/10/19 at 08:53:19

  logic tells me all you really need to do is stop over engineering the subject , and cut to the chase!  Go buy a  Laser pointing infrared distance reading thermometer ,($15.00 on line)   .Start the bike with the headlight on , carefully disconnect the positive cable to the battery to stop any flow that may go to recharging it . and take a reading off the fins of the reg/rec ,  after that simply disconnect the headlight(remove it) and take the reading again,  if the temperature increases  my theory is correct, if it decreases( BUT IT WONT) start slapping LED's on your bike with careless abandon .(K.I.S.S.)
  Can you disconnect the stater from the rectifier with the bike running? If you have to ask your in trouble ! the answer of course is yes , that's how you test it ,100volts AC @ 5000rpm if it's good. 3 reading between each two leads.Sorry but your assumption that using LED's will not lead to shunting more power and more heat are incorrect
 Let's me be clear ,I never said LED's were not good, if they provide better lighting than standard lights . It's just that our regulators don't prefer the extra heat.
  Resistance causes heat .  There are no resistors INSIDE the regulator.   The shunted power is sent to the body /fins directly . The body of the reg. being Iron based conducts , but has a much higher resistance to flow than the copper,  thus the power is converted to heat on it path to ground (bolted to the steel fender).The more power sent ,the more heat dispersed , there is no need for any kind of variable resistor.
Back to top

« Last Edit: 08/11/19 at 09:13:41 by batman »

my old work mates called me MacGyver
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #25 - 08/11/19 at 14:29:40

"The fact that the current flowing through the circuit is lower when the system load is lower (when the lights are turned off) indicates that the heat buildup which is basically what kills the regulator is also lower "


     NO,  it means that the steady current put out by the rec/reg  is  not all being used by the bike's electrical system, the 4.5 amps normally used by the headlight is already  being shunted to ground , causing the heat in the regulator to be higher. An LED headlight drawing 1.25 to 1.50 amps  will in fact increase the heat given off .


    the fact that when you turned the headlight on. the amps only increased from 11.3 to 12.2   shows a 0.9 increase in amp, .9 amps x 14 volt =12.6 watts to light a 55 watt headlight ? shows your testing to be somewhat flawed.
Back to top



my old work mates called me MacGyver
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: The health of your regulator/rectifier with LE
Reply #26 - 08/11/19 at 17:22:25

What do we know?
The regulator has fins for shedding heat.
Some regulators fail.
Why not increase the heat sinking capabilities of it?
If you're concerned about it.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #27 - 08/11/19 at 18:52:00

Jog , I already did ,Use of  an R/R with Mosfet tech will reduce the heat by up to 50%, it will last longer than a stock one even if you change to LED's on the entire bike. I believe I covered it all when I started this topic, there were a few nonbelievers that could have done a bit of research on line ,found out that I knew want I was talking about and this wouldn't have run to 2 pages
Back to top



my old work mates called me MacGyver
  IP Logged
RocketScienceSmurf
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male
Re: The health of your regulator/rectifier with LE
Reply #28 - 08/11/19 at 23:59:09

@batman: Your assumption that the generator or regulator/rectifier always supplies a fixed amount of current and that somehow it must go to either a load such as a light or be shunted of as heat is incorrect.

The increase of 12.6 watts might be due to the battery. We get power from two different sources in this case and as I said I am not 100% sure I got the range setting on that channel correct. I wasn't looking to get the exact DC current but rather an indication on whether the current was higher or lower.

A chain is never stronger than its weakest link and in the case of the alternator and the regulator I would think the weaker of the two is the regulator. I have read about more cases of failed regulator than failed stator but if you install a MOSFET regulator it might very well be that you shift the balance so you fry the stator before the regulator. I believe that the stator is more difficult to replace than the regulator.

The main reason a modern MOSFET regulator creates less heat is due the extremely low internal resistance of the mosfet transistor. A good modern mosfet has an internal resistance of only a few mOhms creating a very low voltage drop and therefore little heat.

Removing the battery from the electrical system while the engine is running is NOT something I would recommend anyone to do. The battery provides some filtration of the voltage and also a kind of base line.
Back to top


  IP Logged
Armen
Serious Thumper
*****
Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1454

Re: The health of your regulator/rectifier with LE
Reply #29 - 08/12/19 at 03:57:49

Seems a few of you are thinking too much.
Permanent magnet alternator:
Magnet of a fixed strength (as opposed to an excited rotor alternator), spinning past a fixed set of windings.
Faster the magnet spins, the more amperage is produced.
If the amperage isn't used, the R/R turns it into heat.
More heat=dead sooner.
Take a look at the VFR Honda and SV Suzuki pages for discussions of the early demise of their R/Rs ad nauseam.
Solution-bigger R/R or, better cooling (out in the open for the SVs, put a fan on it for the VFRs).
If the system generates 100 watts that aren't used, you have a 100 watt toaster oven.
Think less, do more.
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
