ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Beefing up the Clutch Reply #45 - 03/12/21 at 05:39:07 Cool stuff as always. We need a a sticky post where you can list and link all of these mods and the detailed information that you put in them.
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #46 - 03/12/21 at 07:16:59 DragBikeMike: Great job finding, fitting and finagling the stuff together! Mike's modified clutch is definitely a beneficial improvement when you have a significant increase in HP
Back to top	« Last Edit: 03/12/21 at 18:25:17 by Dave » Someday I will be old......But not today! IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: Beefing up the Clutch Reply #47 - 12/02/21 at 09:09:08 Based on your numbers, you lowered the spring seats 1mm? Installed height went from 24.4mm to 25.4mm.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4471
Honolulu

Re: Beefing up the Clutch
Reply #48 - 12/02/21 at 15:56:24

Yes Sneezy, I ended up with an installed height of 25.4. I would have preferred 26mm, but there just isn't enough meat on the release plate to allow cutting it back that far.

So, I have 0.6mm more spring preload than stock. It's working fine. Still zero slippage after a whole bunch of miles. It's been thoroughly tested. It handles everything from the box-stock motor all the way up to the full 97mm flat-top piston with all the trimmings. The only problem I have encountered is an occasional squeal. That only happens when I try to start off with heavy throttle and cold oil, or when I screw up and try to start off from a dead stop in 3rd or 4th gear (it's an old age thing).

The buggah takes a lickin and keeps on tickin.

It should be noted that I don't dump the clutch, burn rubber, or power shift, but it definitely sees more than it's fair share of WOT.

Back to top

Knowledge is power.

IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1313
Northern Nevada
Gender: male

Re: Beefing up the Clutch
Reply #49 - 12/02/21 at 16:03:41

I plan on having a local machine shop cut the spring seats for me, since my wife doesn't like the price tag on a Bridgeport knee mill let alone a bench lathe for the round bits. I keep my eyes on all the estate sales in my area just in case I run across a steal. Same shop will cut the side cover for the longer starter gear shaft. Support your local businesses! Cool

Back to top

Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged

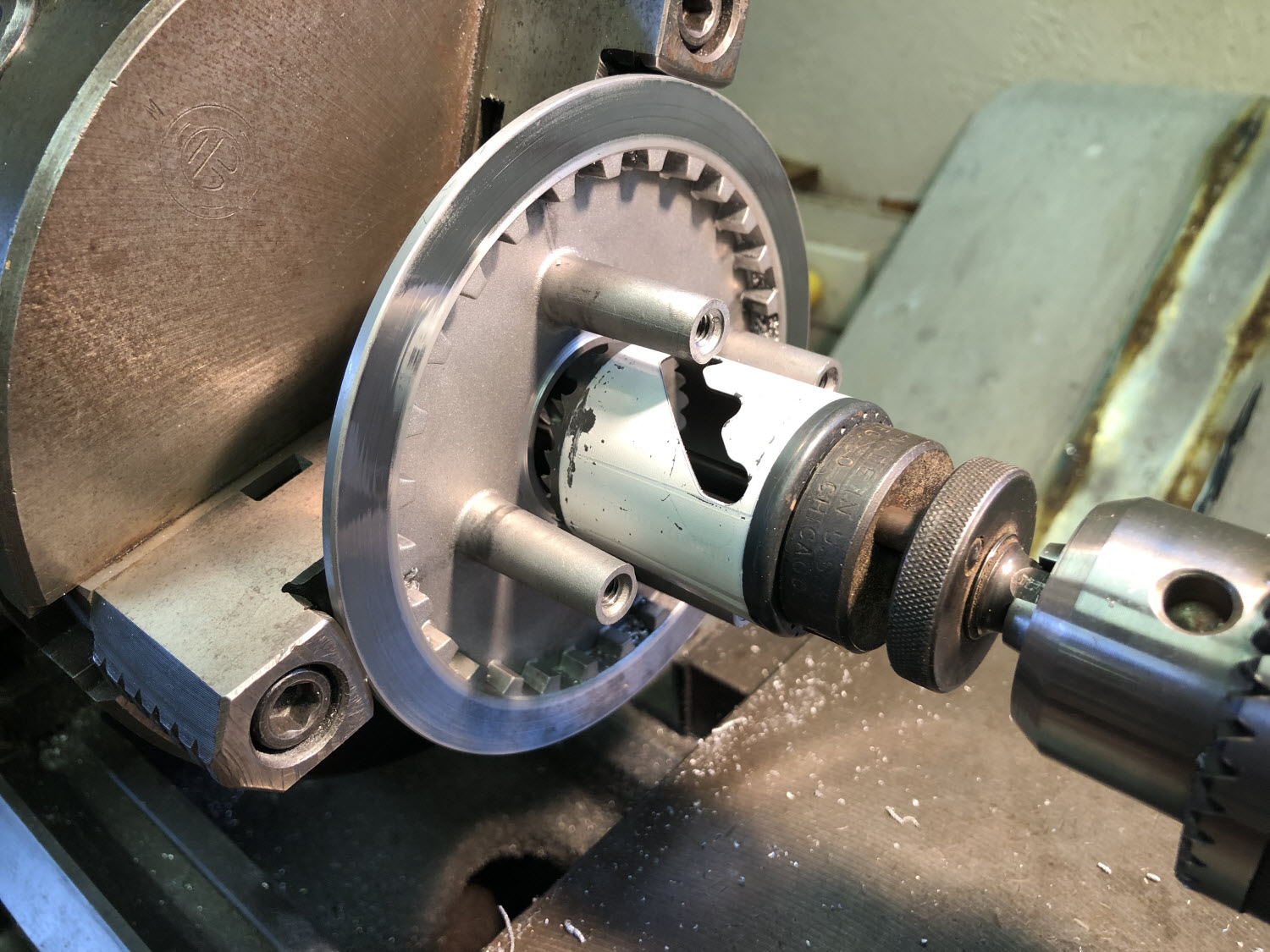

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #50 - 01/09/22 at 16:24:58 I had some time today to work on this clutch improvement. To make the hole in in the clutch basket larger.....I used my lathe and a 1-3/4" (44mm) holes saw.
Back to top	IMG_9599.JPG Someday I will be old......But not today! IP Logged

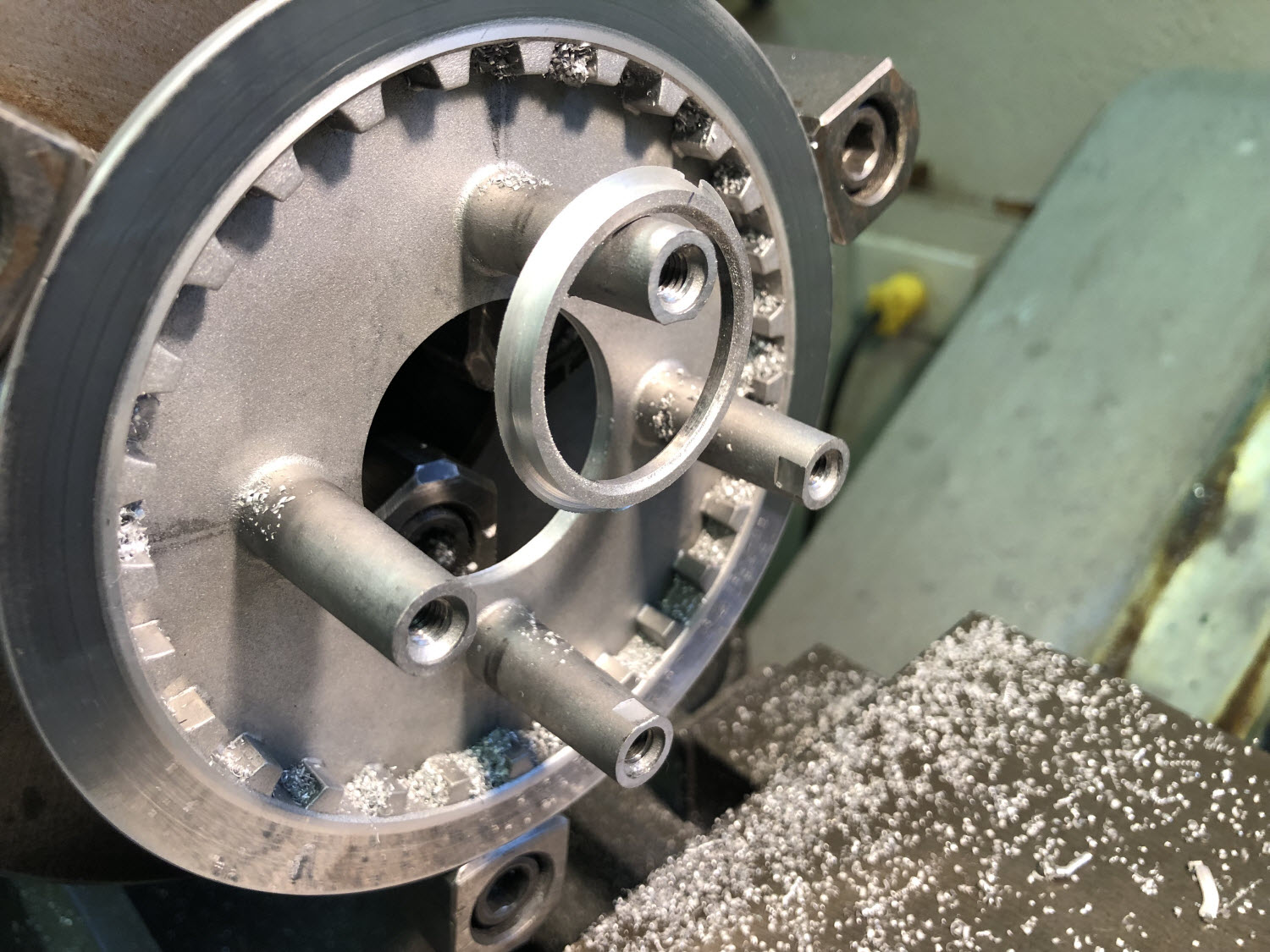

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #51 - 01/09/22 at 16:25:40 The hole saw did a wonderful job....it cut through the aluminum easily and made a nice tidy hole.
Back to top	IMG_9600.JPG Someday I will be old......But not today! IP Logged

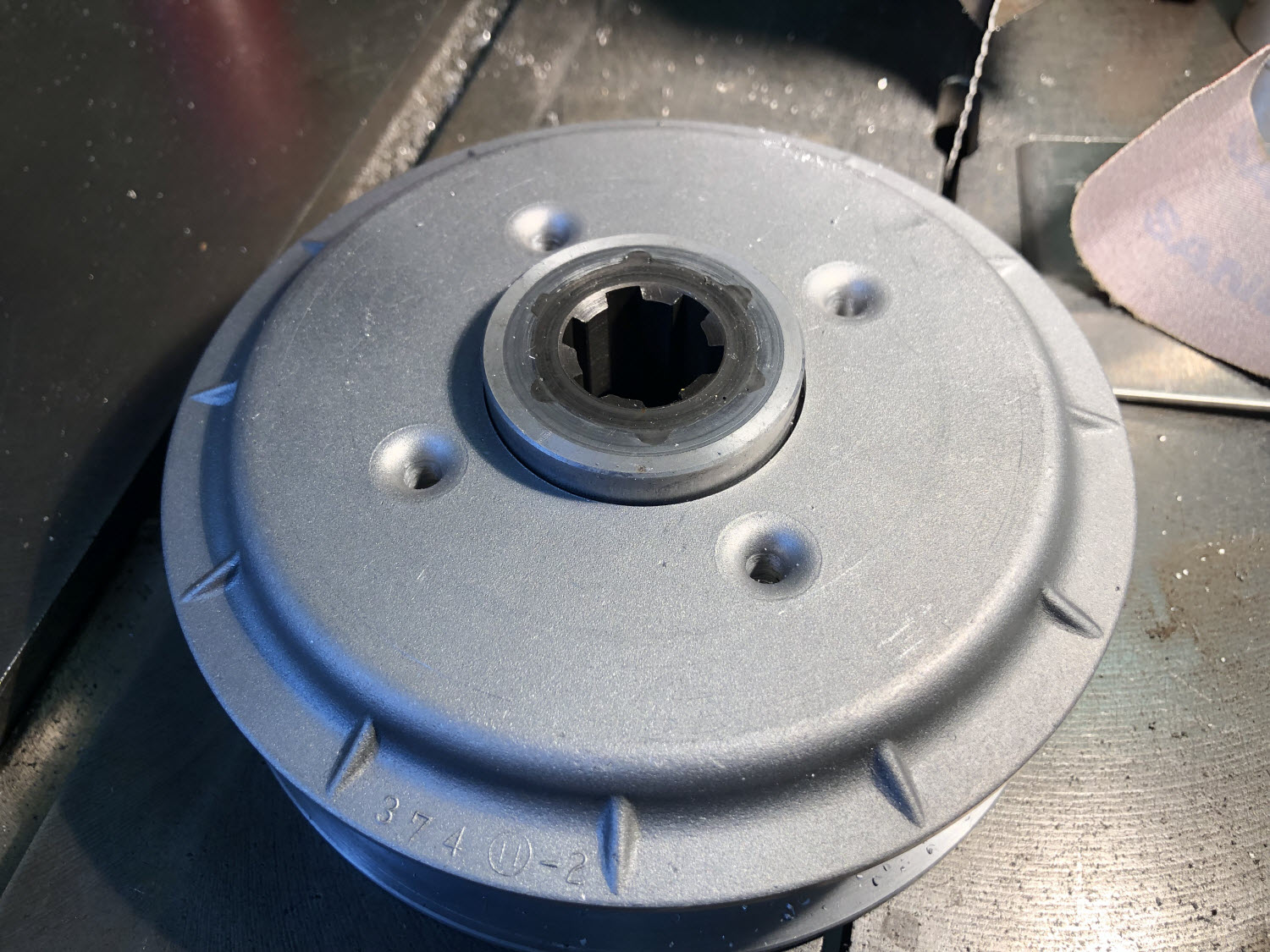

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #52 - 01/09/22 at 16:26:15 The hole was exactly the size it needed to be!
Back to top	IMG_9601.JPG Someday I will be old......But not today! IP Logged

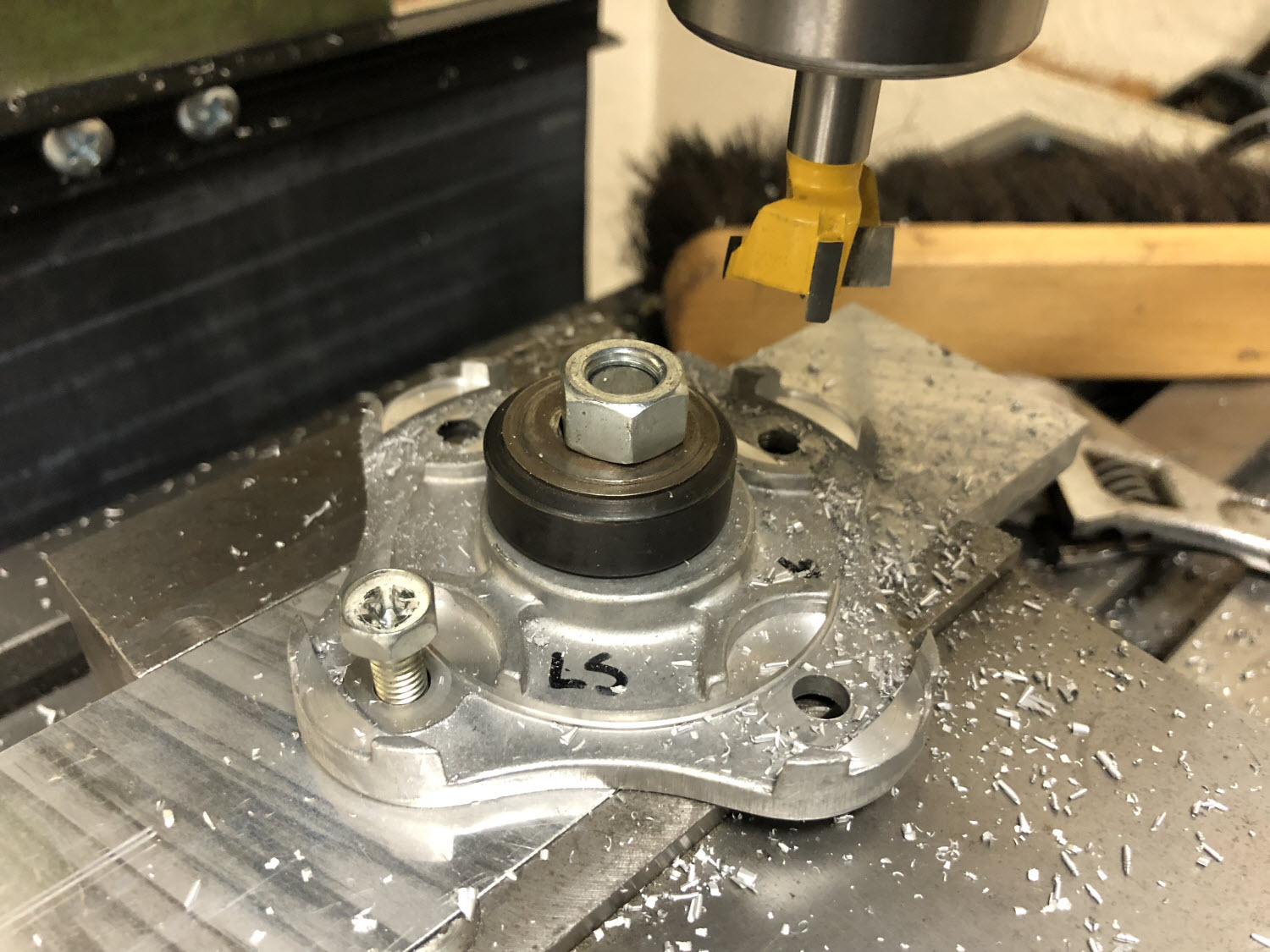

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #53 - 01/09/22 at 16:28:00 I then used a Forstner bit in my milling machine to cut the spring pockets a bit deeper. I had made a fixture to hold the piece and allow me to rotate it to cut all 4 pockets.
Back to top	IMG_9603.JPG Someday I will be old......But not today! IP Logged

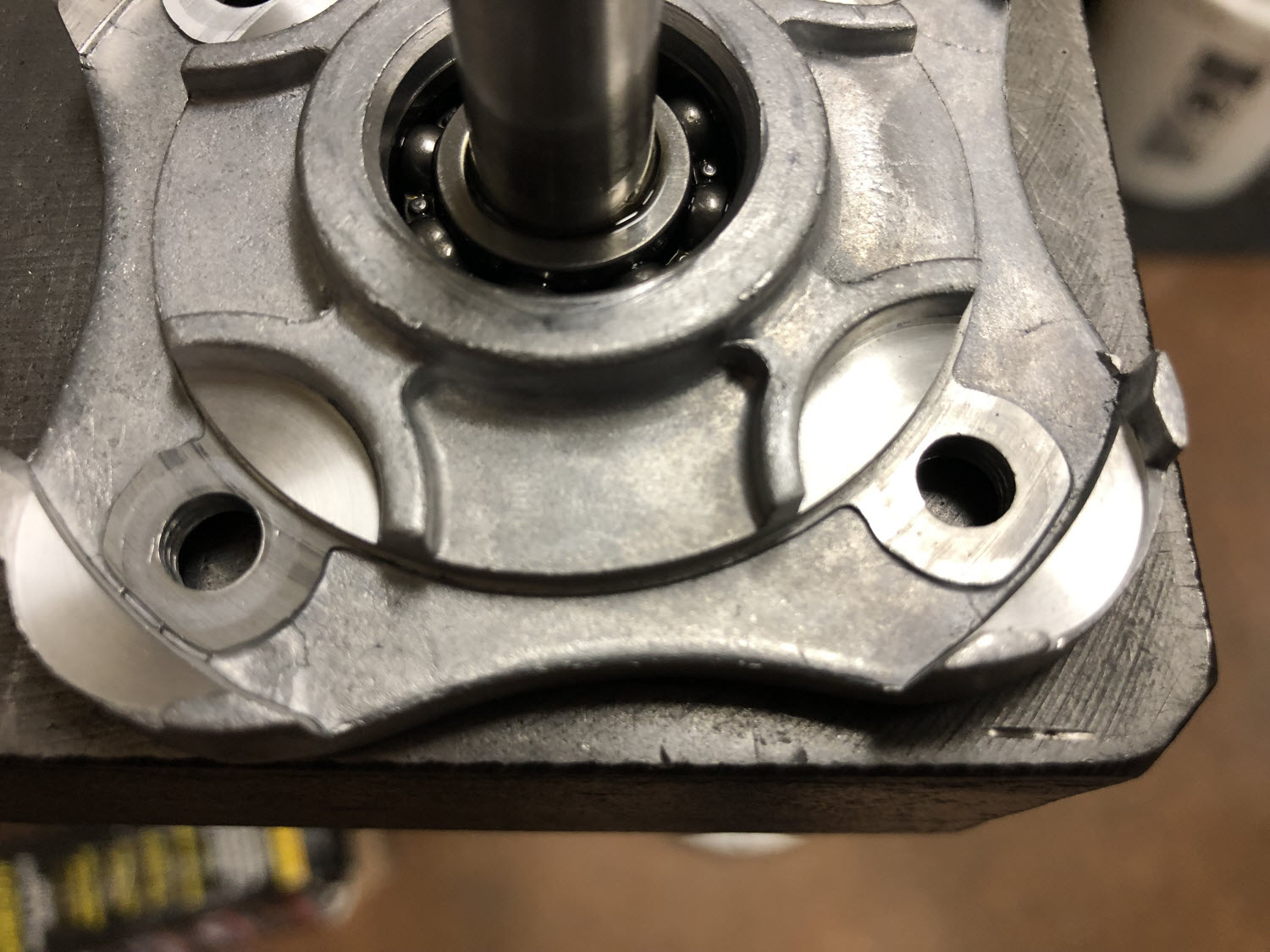

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18314 Camp Springs, Kentucky Gender:	Re: Beefing up the Clutch Reply #54 - 01/09/22 at 16:28:37 The Forstner bit cut the aluminum like it was butter!
Back to top	IMG_9604.JPG Someday I will be old......But not today! IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: Beefing up the Clutch Reply #55 - 01/09/22 at 16:32:01 Finding the perfect size HOLE SAW is mind boggling! Those seem to wobble more than desired making the hole too large (or larger than the listed size). I guess when you have a lathe and can true it up properly. Man, I wish I had a lathe!
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: Beefing up the Clutch
Reply #56 - 01/09/22 at 16:32:50

My lathe and milling machine made this work really easy - but I do believe you could do both of these on a drill press if you have a hole saw and the correct size Forstner bit.

DragBikeMike did an amazing job of figuring this out. The amazing thing is how well this all goes together. Before I took my clutch apart I measured the distance the push rod stuck out, and it was 12.4mm. I then installed the DR650 inner clutch basket, replaced the outer disc with a new one that is the same ID as all the others, then added another steel and fiber disc....and when I got it put together and checked my push rod length - it was 12.4mm!

Back to top

Someday I will be old......But not today!

IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: Beefing up the Clutch Reply #57 - 01/09/22 at 16:34:02 Yeah, I want a knee mill too....
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4471 Honolulu	Re: Beefing up the Clutch Reply #58 - 01/10/22 at 20:57:17 Nice job Dave. Love the way you found a simple solution for the tooling. Looks to me like your Forstner bit has carbide blades. You're gettin ready to put some serious torque to that rear wheel.
Back to top	Knowledge is power. IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1313
Northern Nevada
Gender: male

Re: Beefing up the Clutch
Reply #59 - 01/10/22 at 21:34:47

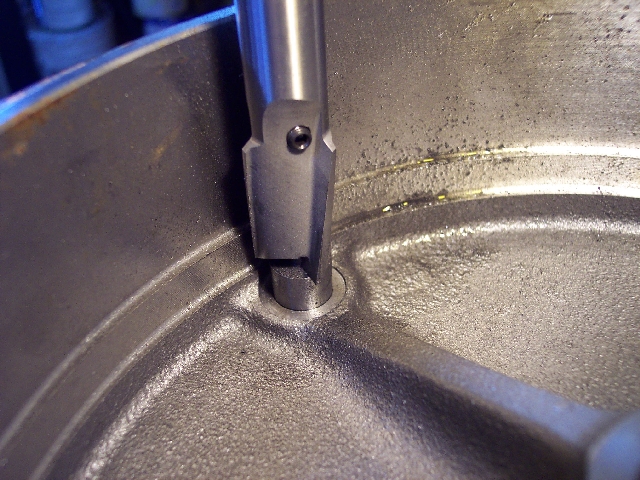

Seems to me a Forstner bit is a lot like a piloted spot facing end mill. A search on forstner bits came up mostly with wood cutting tools. I realize aluminum is softer than steel, but I have used mostly steel working tools. This is when I needed a spot face for a press in stud head to clear the brake shoes in a drum brake. Similar designed tool, different name.

Back to top


Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged
