Re: 1986 Savage Street Tracker build
Reply #210 - 11/15/21 at 12:39:28

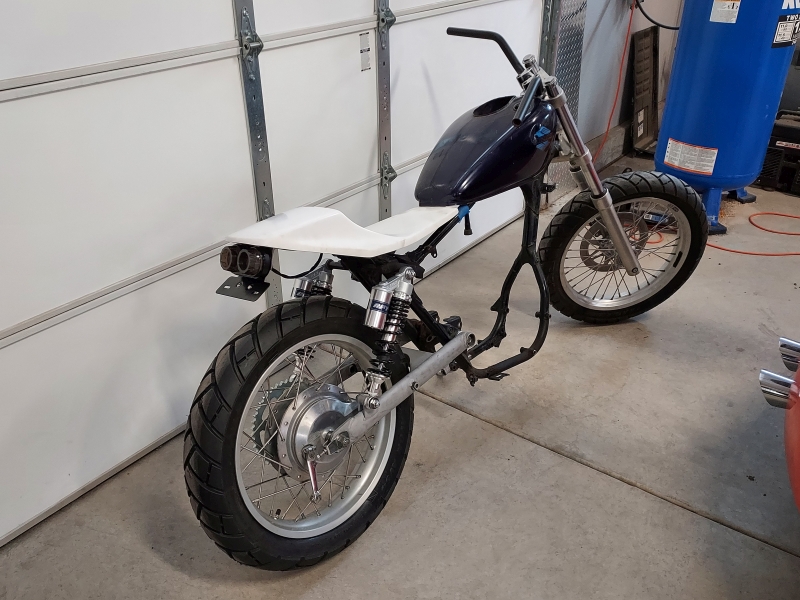

Finally off the lift and officially standing on her own. The lean angle is just a little more than I wanted, but not too severe. We will see how it rests after the motor is back in and the rear suspension is adjusted. The stand is getting a serious cleaning and the Kawi is going up next. I will be back at the tracker build soon.

Back to top


Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1206 Denver, CO Gender:	Re: 1986 Savage Street Tracker build Reply #211 - 11/15/21 at 15:10:05 Lookin' good. Pretty fast progress on this.
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #212 - 11/15/21 at 16:29:50 Yeah, not bad for a month and a half! Seems like longer when you have to wait on shipping for everything.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1313
Northern Nevada
Gender: male

Re: 1986 Savage Street Tracker build
Reply #213 - 11/21/21 at 14:50:07

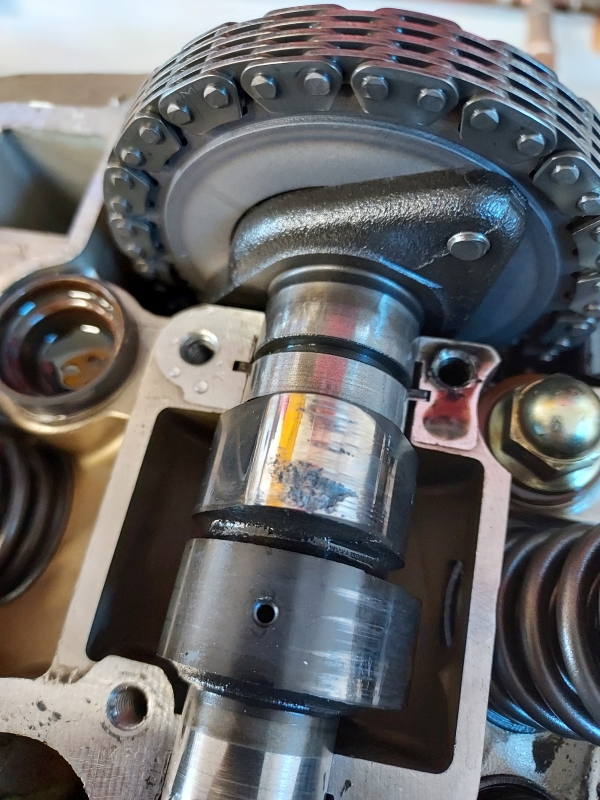

I hit a snag taking my forks apart on my Kawi, so I ping ponged back to the Savage build. Decided to take the cam cover off and start the motor disassembly. Well, it was not unexpected... I didn't get very far to find out this will be a total tear down. Cases will will need to come apart and every bearing/seal replaced. Along with a new camshaft!!!

Back to top


Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged

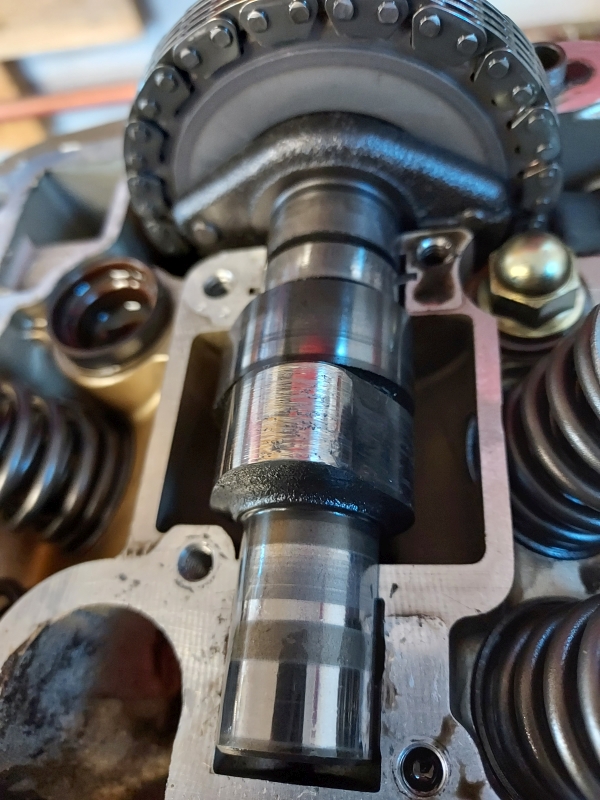

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #214 - 11/21/21 at 14:50:40 The other lobe is not much better...
Back to top	20211121_1444401.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #215 - 11/21/21 at 14:52:00 I'm starting to read the hop up threads.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

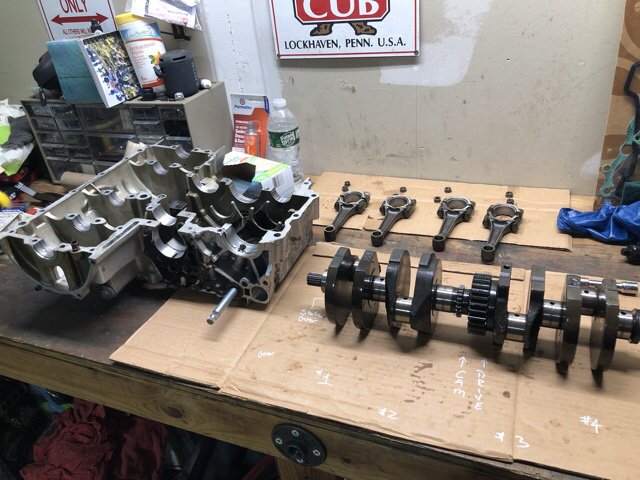

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2642 Amongst the Twisty Roads	Re: 1986 Savage Street Tracker build Reply #216 - 11/21/21 at 17:30:21 Don’t feel bad, this is the status of my winter project.
Back to top	A56016FB-435B-4C10-8AE0-8ADFE727ABD8.jpeg A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28996 L.A. California Gender:	Re: 1986 Savage Street Tracker build Reply #217 - 11/21/21 at 19:14:53 TheSneeze wrote on 11/21/21 at 14:50:40: The other lobe is not much better... caused by idling too long on the kickstand. the tilt drains half the tub and the upper cam starves for oil.
Back to top	Versey's Place Tech Section Index IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #218 - 11/21/21 at 19:20:34 Interesting. I never would have come to that conclusion. Since I have no idea when this motor last ran, I am crossing my fingers I don't find more damage adding to the "replace the part" pile.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18313
Camp Springs, Kentucky
Gender: male

Re: 1986 Savage Street Tracker build
Reply #219 - 11/22/21 at 02:32:58

The bottom end is tough.......the cam lobe wear is pretty typical of a bike that is idled to long and/or run with oil that does not have enough ZDDP to keep the cam and rocker happy.

I wouldn't be too quick to condemn the bottom end bearings. Lots of our forum members fix the cam/rocker issues and then start running good oil (Rotella), and the engine continues to run happily. Any metal that came off the cam/rocker went into the sump and through the filter and never got to the bearings.

You didn't send a photo of the rockers - but I suspect you have the rockers without the hardened pads (2005 and later). When you order new rockers be sure to get the 2005 and later rockers.

Back to top

Someday I will be old......But not today!

IP Logged

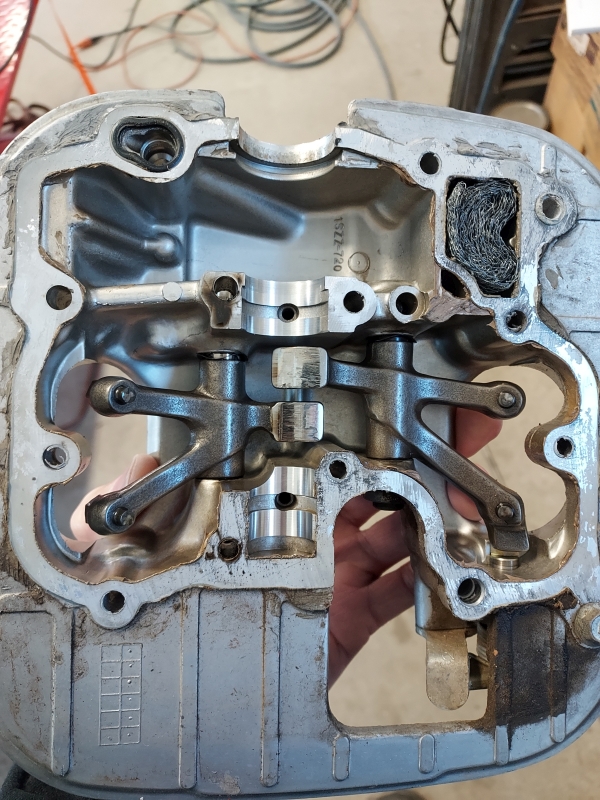

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #220 - 11/22/21 at 10:50:16 Rockers
Back to top	20211122_1033331.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1986 Savage Street Tracker build Reply #221 - 11/22/21 at 10:54:08 I am not opposed to shipping the cylinder head to be rebuilt. Any recommendations on a good shop that knows how to do these heads properly? Thumper Racing closed - they were in town near me. They specialized in four stroke singles.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: 1986 Savage Street Tracker build Reply #222 - 11/22/21 at 14:51:48 It wouldn't surprise me if your cylinder head is just fine as-is. From what I see here, you have excellent skills. I think you are more than capable. Take it apart, clean & inspect, install new guide seals, leak test it, rock & roll. You might wanna breath on them ports a bit while you have it apart.
Back to top	Knowledge is power. IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1313
Northern Nevada
Gender: male

Re: 1986 Savage Street Tracker build
Reply #223 - 11/22/21 at 15:37:23

I am not going to invest in the tools required to cut new valve seats. I would prefer a professional three angle cut. The leak down compression test showed most if not all loss was the exhaust valves. If I am going to a new cam, new rockers, piston, etc. I would be more comfortable with a shop head rebuild than attempt it myself. I am going to start looking for a carb replacement and exhaust options. Thanks for the PM - looking forward to seeing more.

Back to top

Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2642 Amongst the Twisty Roads	Re: 1986 Savage Street Tracker build Reply #224 - 11/22/21 at 16:12:26 Use a machine shop for the angle cut. Otherwise this is a remove and replace operation. It’s also a very good opportunity to open the exhaust port.
