TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #795 - 12/06/22 at 08:47:24 Antmanbee - sorry I overlooked your question. Here is the link on Fleabay where I got the tail light. https://www.ebay.com/itm/183876652361
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18314
Camp Springs, Kentucky
Gender: male

Re: 1987 Savage Street Tracker build
Reply #796 - 12/27/22 at 04:45:30

TheSneeze wrote on 09/29/22 at 07:44:14:

One thing I found out that no one mentioned - when you use the stock lower triple clamp as an upper to allow ride height adjustability, and use the stock tank, the triple clamp will hit the tank before the steering stops make contact. Another thing to address. First thought was to add welds to the stop to build them up, but everything is already powder coated.

I made an aluminum block that attaches to the tab on the front of the frame. It only requires drilling a hole to attach it. I am out of town until January 2 - I will take a photo when I am back home.

Back to top

Someday I will be old......But not today!

IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #797 - 12/27/22 at 06:27:38 Thanks, Dave. I was thinking the same thing, but maybe use JB Weld. Not a huge problem, just glad I didn't put another dent in my new paint job.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Edub

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 167
Arizona
Gender: male

Re: 1987 Savage Street Tracker build
Reply #798 - 12/27/22 at 10:32:32

The sneeze, this might not be relevant or helpful, but I figured I’d share it. My old Ducati Monster had adjustable stops. They were ridiculously simple, just bolts with lock nuts. Grub screws could possibly work as well, although the JB welded aluminum blocks would likely be much easier to do. Best of luck with whatever solution you come up with!

Back to top

IP Logged

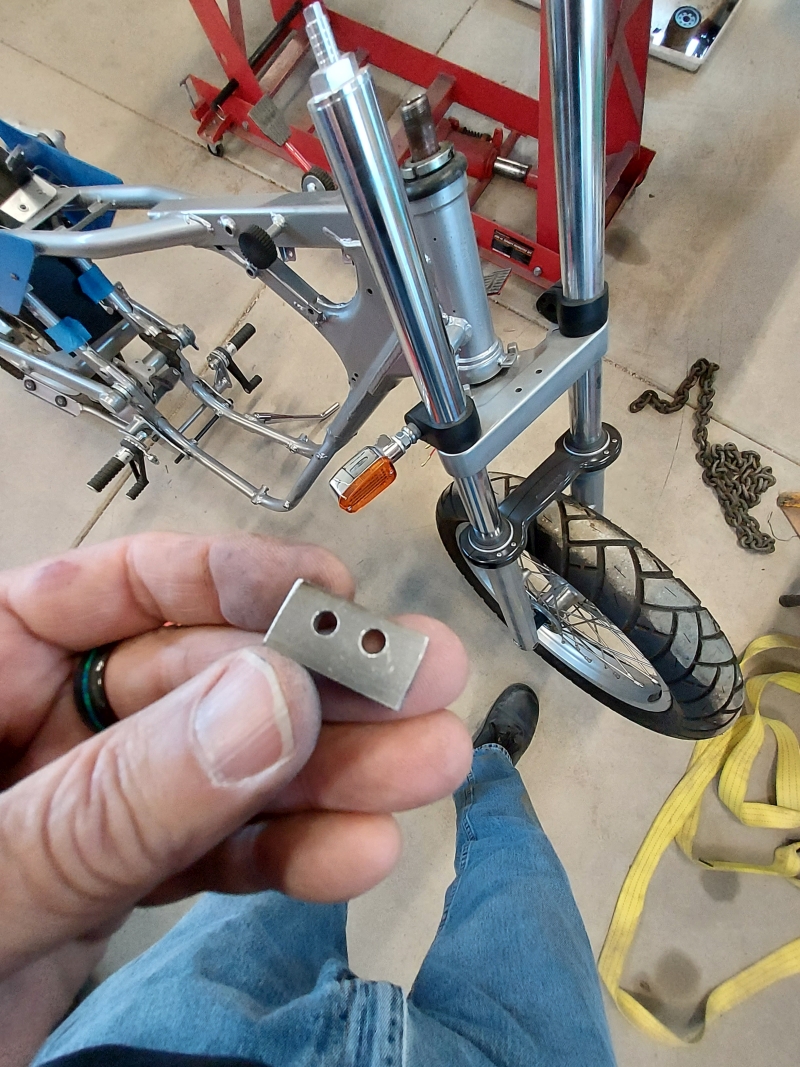

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #799 - 04/14/23 at 15:36:23 I have been missing from this thread for a while! I got a wild hair today, and came up with a solution to my steering stop. I made a small plate from 3/16" steel. and drilled some matching holes in both the plate and stop on the frame. I will use some nylock nuts on the screws to attach it. Easy peasy.
Back to top	20230414_1529251.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

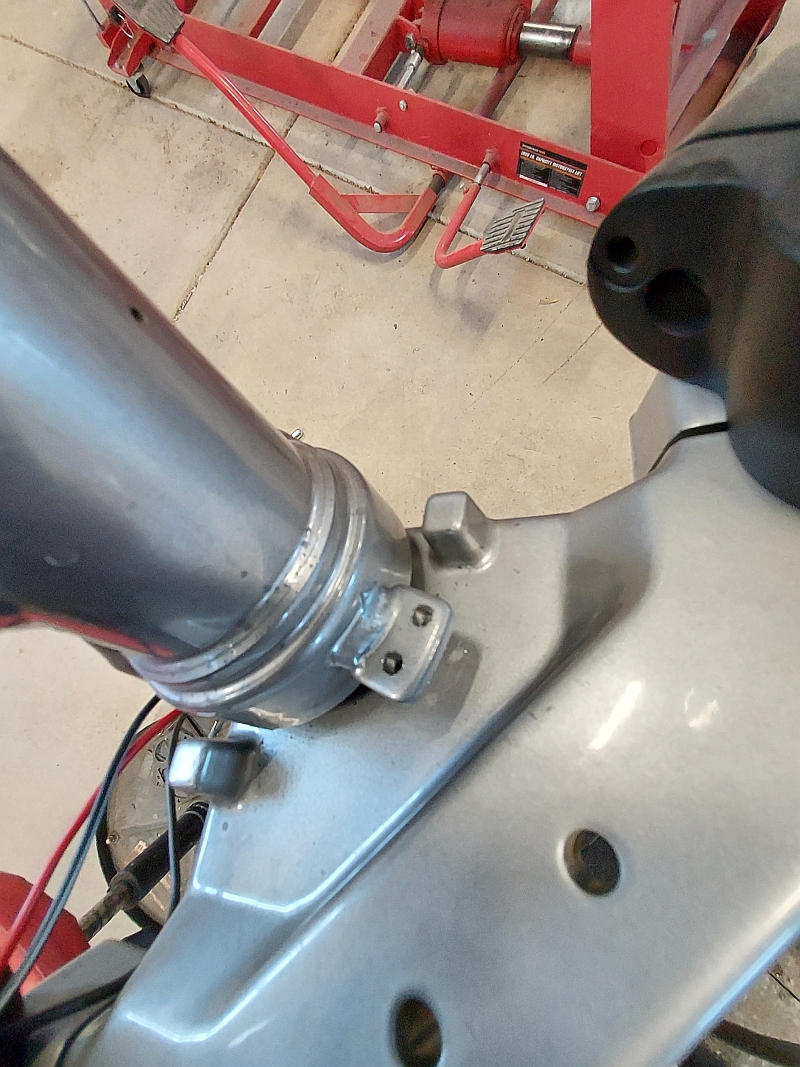

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #800 - 04/14/23 at 15:37:09 Stop stop with holes
Back to top	20230414_1529391.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Edub Full Member Offline SuzukiSavage.com Rocks! Posts: 167 Arizona Gender:	Re: 1987 Savage Street Tracker build Reply #801 - 04/14/23 at 22:05:29 Nice to see an update on your project, The Sneeze!
Back to top	IP Logged

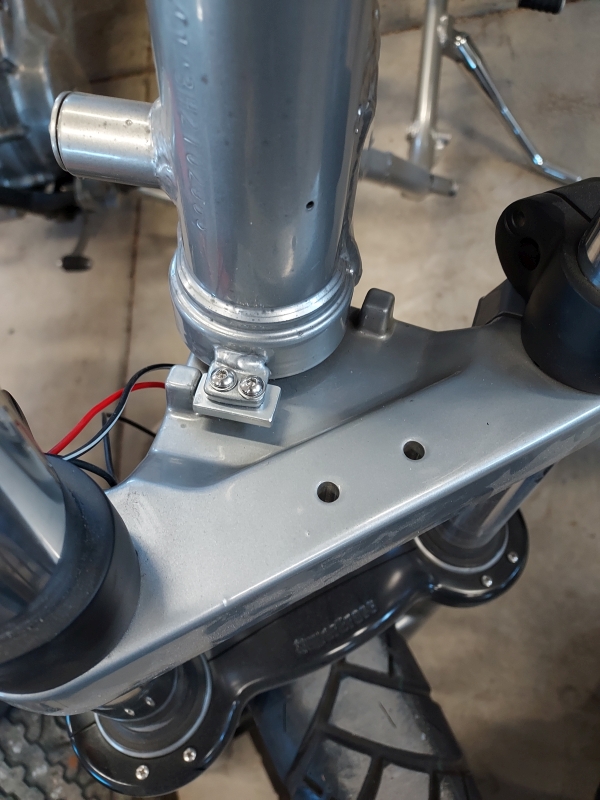

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #802 - 04/15/23 at 15:47:34 Time to put my measurements to the test. Here is full lock, both ways.
Back to top	20230415_1541341.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

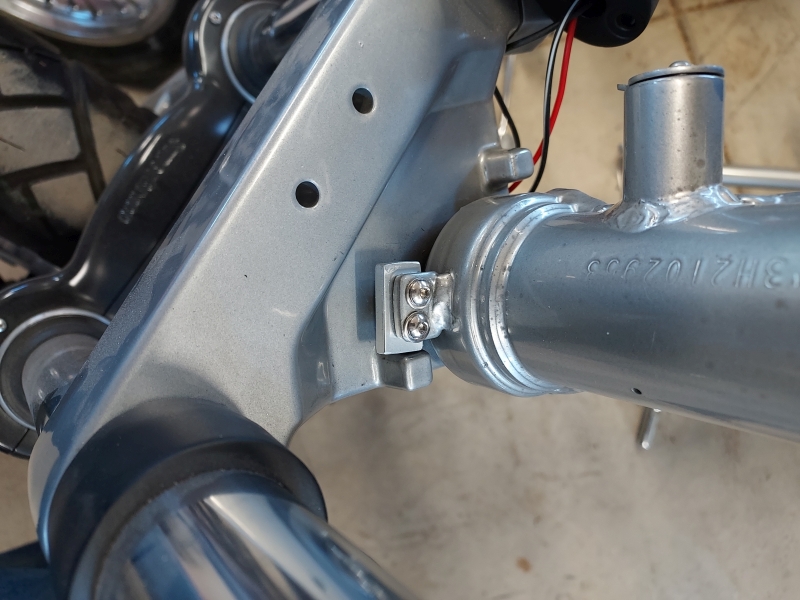

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #803 - 04/15/23 at 15:48:21 Full lock the other way.
Back to top	20230415_1541531.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

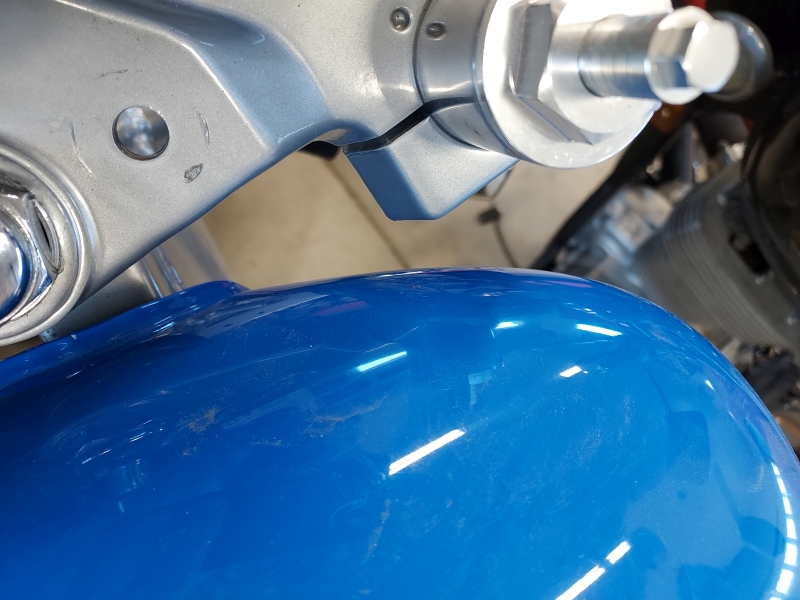

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #804 - 04/15/23 at 15:49:08 And... we have clearance, Clarence!!
Back to top	20230415_1542061.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

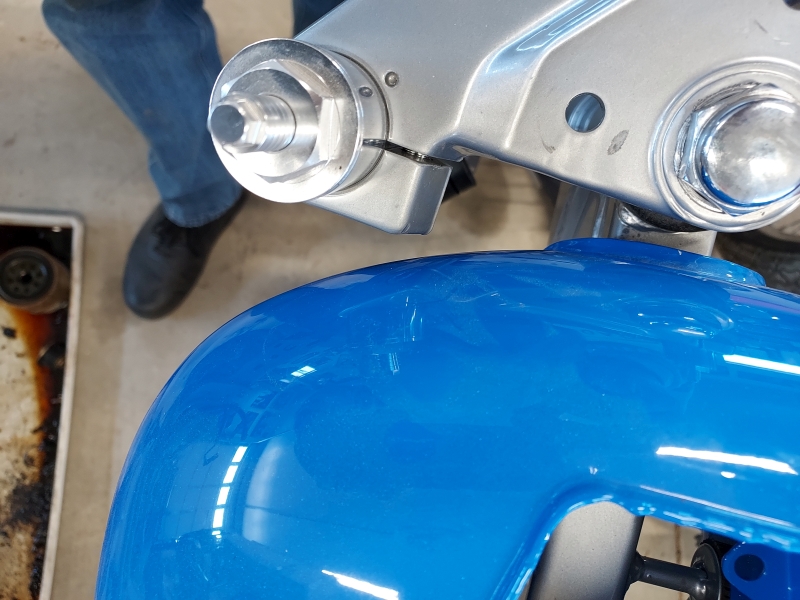

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #805 - 04/15/23 at 15:50:31 It's a little closer to the tank on one side, but walking with the bike is the only time it will be turned that far.
Back to top	20230415_1542181.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

ohiomoto

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 2825

Re: 1987 Savage Street Tracker build
Reply #806 - 04/15/23 at 17:36:25

I like your little fix. Please don't take this as a criticism. I'm just sharing an idea that popped into my head. This is in the spirit of hindsight being 20/20.

I go through this kind of stuff all of the time and like you, I find a solution. It usually works out fine as your solution will.

I've also found that sometimes (usually after the fact) I've overlooked something. If this were my problem, I would be asking myself if I might b happier with a DC Motive top clamp for $170 or whatever they cost. I'm pretty sure their clamp would clear the tank without modifications and probably look a little nicer than the modified lower clamp.

Of course, I usually realize this after I've invested time and money into the item that caused the conflict! Grin

No corners on this one:

Back to top

IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1313
Northern Nevada
Gender: male

Re: 1987 Savage Street Tracker build
Reply #807 - 04/15/23 at 18:33:34

No criticism assumed. I like creating, and those tend to be my most enjoyable times in my shop. I am out about $1.50 in hardware on this fix. It came out cleaner than I expected. There are other areas of this build where I went a bit overboard money wise, but I still try to follow the K.I.S.S. principle as much as I can.

Back to top

Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker (destroyed by fire)
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribut

IP Logged

Ruttly

Serious Thumper

Offline

Thumpers Rule

Posts: 5400
Manteca , CA
Gender: male

Re: 1987 Savage Street Tracker build
Reply #808 - 04/16/23 at 10:20:16

Problem solving is what creates stress , must be a love hate thing. I hate it but repeatedly do it so I must love it. Also gets me a great sense of achievement/accomplishment to fix a project stalling hiccup. Good job ! Just an everyday thing when you constantly test yourself as a builder. I guess it’s fun ? The ride is the ultimate reward , now that’s FUN !

Rule #1 Don’t sweat the small stuff

Rule #2 It’s ALL small stuff

Ya got to live by it. Cool

Back to top

The Topic Terminator

IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #809 - 04/16/23 at 10:33:41 This explains a lot...
Back to top	repair.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged
