E3 plug didn't fit mine (Read 58 times)
wheelbender6
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 145
E3 plug didn't fit mine
08/13/22 at 18:04:53
My NGK plug was due for replacement, so I bought an E3 off EBay.
The E3 fit the threads in my engine and looked similar to my NGK.
After a few turns, my 18mm socket would not stay on the plug to finish the tightening. The socket just spun freely and would no longer fit the flats on the plug.
I bought an 18mm socket from Ace hardware, because I was told their Craftsman sockets are thinner. Same result.
I bought an 8mm spark plug socket from Cyclegear because it was advertised as thin walled. Same result.
I lost patience and removed the stubborn E3. I put back in the old NGK and my 18mm socket fit with no problem. It was easy to tighten the NGK plug.
It appears that something on the E3, other than the flats, was slightly larger than my NGK. maybe the upper part of the insulator was larger and prevented a good fit from the THREE sockets I tried.
I plan to buy one of those cheap sockets like you get in the factory tool kits. I can cut it down and customize one of those easier than a nice forged socket, Maybe I will be able to use the E3 eventuallu.
Has anybody else been able to use an E3 spark plug?
Back to top
IP Logged
wheelbender6
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 145
Re: E3 plug didn't fit mine
Reply #1 -
08/13/22 at 18:08:30

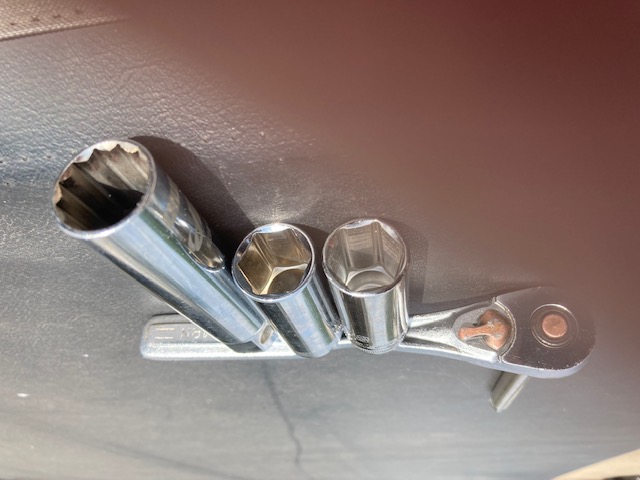

Here are the three 18mm sockets I tried on the E3. I like buying tools but I don't need three 18mm sockets.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28996
L.A. California
Gender:
Re: E3 plug didn't fit mine
Reply #2 -
08/13/22 at 20:04:15
the spec sheet at E3 says it's a 5/8" not 18mm
16mm might work
Back to top
Versey's Place
Tech Section Index
IP Logged
wheelbender6
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 145
Re: E3 plug didn't fit mine
Reply #3 -
08/14/22 at 05:52:26
16mm socket will not fit the E3.
The 18mm sockets fit the E3 plug just fine.
The 18mm socket does not fit into the engine head when using the E3.
This problem vanishes when I install the NJK plug.
Back to top
IP Logged
oldNslow
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2708
Rochester, NY
Gender:
Re: E3 plug didn't fit mine
Reply #4 -
08/16/22 at 10:56:44
I've got a lot of tools, but the first time I took the plug out of my S40 I discovered that I don't own a single socket that fits the flats on the plug,and isn't too fat to fit down into the recess in the head. The cheapo sheetmetal socket that comes in the OEM toolkit fits just fine though
Back to top
IP Logged
Gary_in_NJ
Serious Thumper
Offline
LS650 Cafe Racer
Posts: 2642
Amongst the Twisty Roads
Re: E3 plug didn't fit mine
Reply #5 -
08/16/22 at 14:31:30
Another pro tip; never buy spark plugs from eBay or Amazon. Too many fakes. There are plenty of reputable on-line motorcycle shops (Revzilla, Ron Ayer’s) that will gladly send you original and OEM parts.
Back to top
A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=>
http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4471
Honolulu
Re: E3 plug didn't fit mine
Reply #6 -
08/17/22 at 03:24:04
Not sure why you want to run the E3 plug instead of a trusty NGK, but if you must, why not go buy a 5/8" spark plug socket? They're cheap. I have one and it fits in the cylinder head just fine. Versy says the E3 spec calls for 5/8. A 5/8 plug socket should work.
Back to top
Knowledge is power.
IP Logged
