SuzukiSavage.com - Re: Noisy Engine...Piston Slap? Video linked

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked 10/20/22 at 20:43:16 Taking a long screwdriver, The only place I can identify the loud tapping is at the intake valve cover, I can hear a slight noise in the middle of the head also https://youtube.com/shorts/SbAMFCubTto?feature=share
Back to top	« Last Edit: 10/24/22 at 04:35:20 by Moarpower » IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: Noisy Engine...Piston Slap? Video linked Reply #1 - 10/20/22 at 22:43:33 Wow! That's a lotta noise. This is the animal that had all the busted up starter gears, right? All those aluminum shavings indicate a problem. I would open it up and find out where they are comin from.
Back to top	Knowledge is power. IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Noisy Engine...Piston Slap? Video linked
Reply #2 - 10/20/22 at 23:02:15

Yes this had the starter gear issues where each gear was missing teeth after backlash issues.

I have shoulder surgery next week so was going to sell the bike but won't let it go until I know what's wrong.

I did have to grind down the stator cover to accommodate new gears so I assumed that was the source of the Aluminum. But I think it may be something else.

Back to top

IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #3 - 10/20/22 at 23:40:41 Ok I replaced the clutch plates and took it for a ride over 120km with new oil. Performance was fine. 120km highest speed with fresh oil. Drained the oil and no visible aluminum shavings. The oil however was quite glittery. I'm assuming this could be pretty standard especially with brand new clutch plates ?
Back to top	IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #4 - 10/21/22 at 07:11:40 Here is a video of the shimmer in the oil after approximately 160km with new clutch. https://youtube.com/shorts/BK6XEddtlaQ?feature=share There is less with each oil drain but it's still quite visible
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Noisy Engine...Piston Slap? Video linked Reply #5 - 10/21/22 at 10:18:31 Autopsy the filter and see what it's filtering out.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Ruttly

Serious Thumper

Offline

Thumpers Rule

Posts: 5400
Manteca , CA
Gender: male

Re: Noisy Engine...Piston Slap? Video linked
Reply #6 - 10/21/22 at 13:26:36

And ! I like to capture with a jar the first bit of oil to come out. The rest goes in the drain pan , I’ll let the jar sit and settle for days . First I run a magnet thru it , inspect , then hold a intensely bright light behind it , no light coming thru lot of debri in suspension. After replacing clutch the oil will trap clutch materials from break in and make it so light won’t pass thru along with hydrocarbons . Generally the oil clarity is fouled by hydrocarbons from blow by. The sooner you loose clarity then sooner it should be changed. Just sayin

Back to top

The Topic Terminator

IP Logged

TheSneeze Serious Thumper Offline Posts: 1313 Northern Nevada Gender:	Re: Noisy Engine...Piston Slap? Video linked Reply #7 - 10/21/22 at 16:09:41 Metal bits in your oil is bad, m'kay?
Back to top	Mr__Mackey.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker (destroyed by fire) '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribut IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #8 - 10/21/22 at 17:16:31 TheSneeze wrote on 10/21/22 at 16:09:41: Metal bits in your oil is bad, m'kay? Yes. Yes it is
Back to top	IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #9 - 10/21/22 at 17:17:10 justin_o_guy2 wrote on 10/21/22 at 10:18:31: Autopsy the filter and see what it's filtering out. Il do that today
Back to top	IP Logged

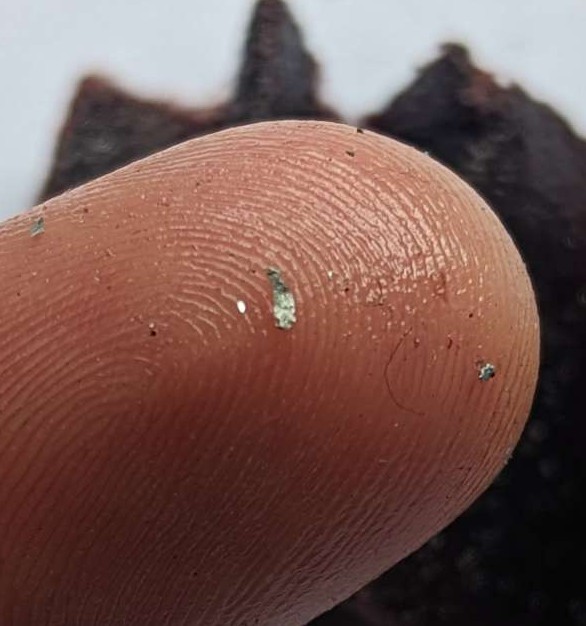

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #10 - 10/21/22 at 18:51:49 Opening the filter revealed some small aluminium shavings and magnetic particles caught among the filter lint.
Back to top	Compress_20221022_114757_77952.jpg « Last Edit: 10/21/22 at 20:58:56 by Moarpower » IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Noisy Engine...Piston Slap? Video linked
Reply #11 - 10/21/22 at 18:53:59

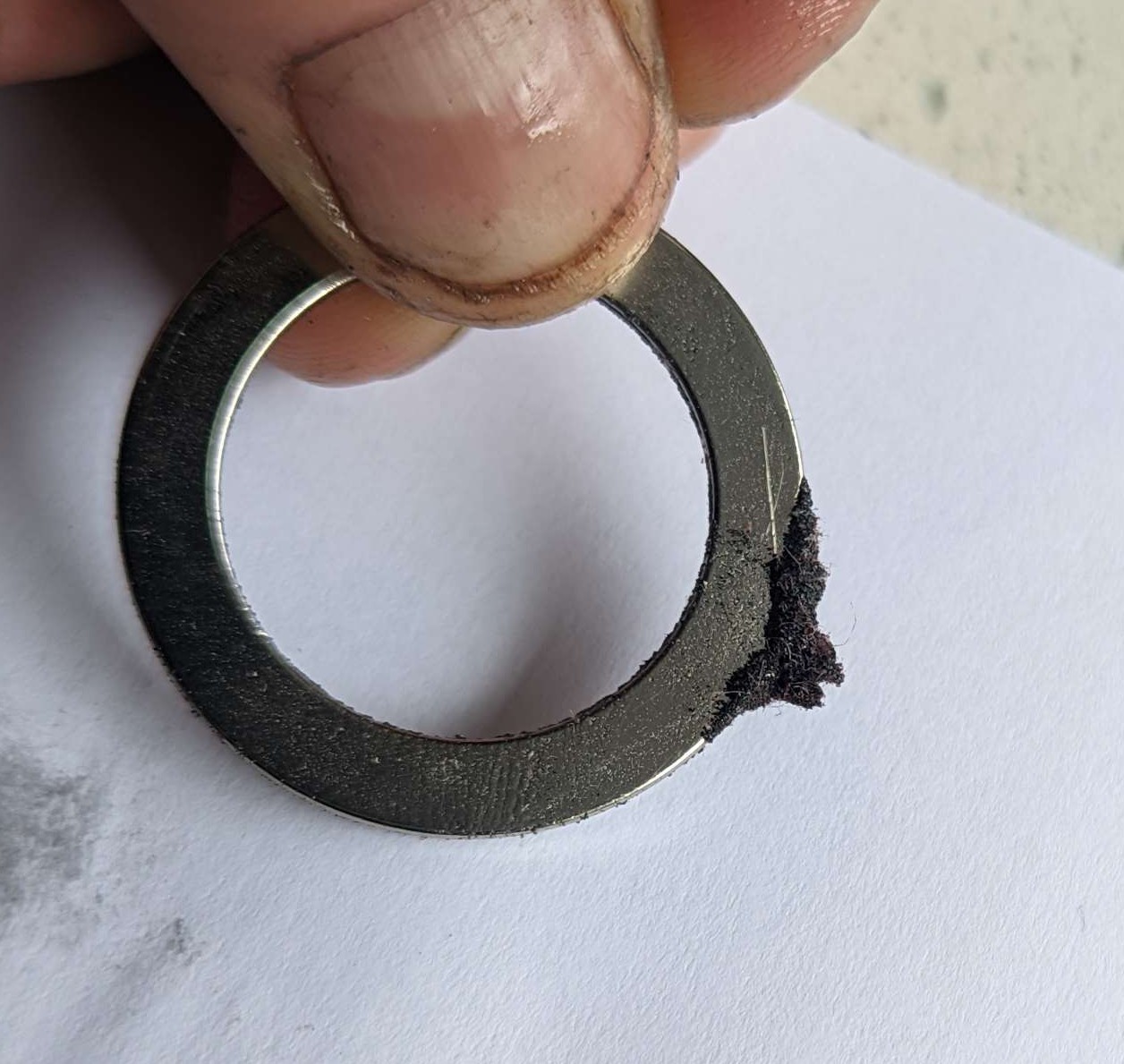

This is all the magnetic filter lint I was able to remove. There were very small particles of ferrous material inside.

Some of the other dust will be from the new clutch.

So as far as symptoms go, there is no smoke or loss of power, and compression seems fine. Just the noisy motor ad the oil particles. Rebuild, sell for cheap or just ride it til it dies and look for another motor?

Back to top


IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Noisy Engine...Piston Slap? Video linked Reply #12 - 10/21/22 at 19:47:52 I doubt it matters, I Think I saw that you adjust the valves to .09 mm? If so, the conversion I found said that is 3.5 thousandths which I think is a little bit tight.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Noisy Engine...Piston Slap? Video linked Reply #13 - 10/21/22 at 20:03:04 Yeah the mm is meant to be between 0.08 and 0.13. might put them at 0.10
Back to top	IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Noisy Engine...Piston Slap? Video linked
Reply #14 - 10/21/22 at 22:10:50

Tomorrow I'll remove the motor and open it up.
This will be my first time opening one of these. Are there any warnings or special service tools needed when doing so? I have the service manual.

If it requires a rebuild I might as well try to source some upgrade parts. Are there still cam upgrades available for these ? I also have some good machine shops nearby if I want to use a larger piston.

Are there still any useable pistons sold anywhere?

Back to top

« Last Edit: 10/22/22 at 05:28:35 by Moarpower »

IP Logged
