Rear pulley Dewobble
06/07/23 at 17:40:21

So, with all the chatter lately about squeaky, wobbly pulleys, I figure it’s time to revisit the gag.
Drag Bike Mike came up with a tremendously clever solution to the problem.
Basically, knock out the original pulley bearing and seal and install a double row/double sealed 5305-2RS super-heavy duty bearing.
With the chubbier bearing, you need a narrower left hand axle spacer.
Luckily, the OEM spacer can be modified to fit.
A little lathe work, and Voila!
Since no one else seems to want to do this, I modify stock spacers and offer them to the members (I need your original one back after you install mine).
I’m posting this in Tech rather than Marketplace, because it seems a lot of folks don’t know the problem/fix.
Easy way to tell if your bike needs one. If it’s a 650 Savage 9or any of the other names the bike is called), you need to do this fix.
Grab the rear pulley and see if it has play in any direction.
Basically all that is needed is to remove the rear wheel. Then pull the pulley assembly and knock out the bearing and seal. Install new bearing (find one on Ebay), toss the seal, install the new spacer, and reassemble!
Shoot me a note with any questions.
Thanks,
-Armen

Back to top

In theory, theory and reality are the same. In reality, they aren't...

IP Logged

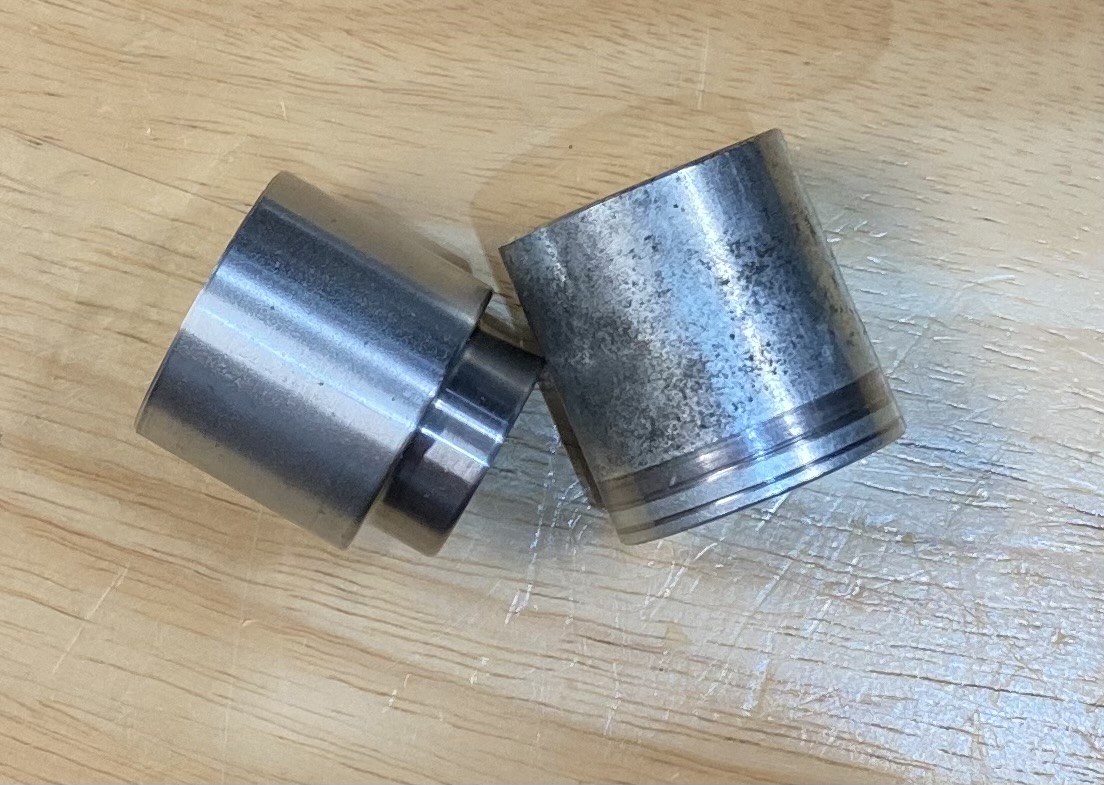

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #1 - 06/12/23 at 13:26:00 Here’s a before and after pic.
Back to top	IMG_0358.jpeg In theory, theory and reality are the same. In reality, they aren't... IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #2 - 07/05/24 at 09:02:14 Bump!
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28996 L.A. California Gender:	Re: Rear pulley Dewobble Reply #3 - 07/05/24 at 10:23:06 Isn't this a 'Rear pulley DON'Twobble' ?
Back to top	Versey's Place Tech Section Index IP Logged

ThumperPaul

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 2154
Houston, Texas
Gender: male

Re: Rear pulley Dewobble
Reply #4 - 07/05/24 at 11:31:44

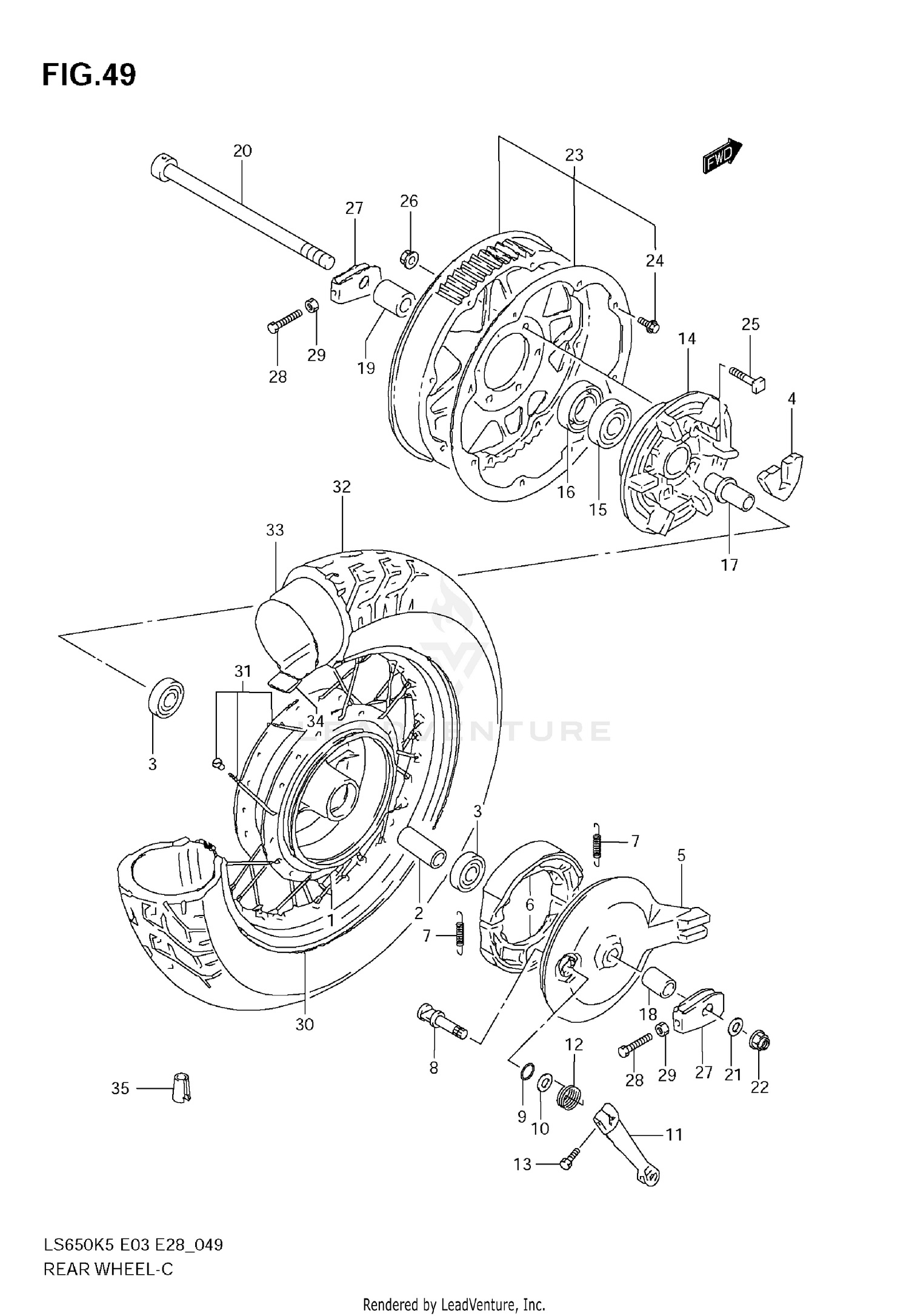

I'm kinda dense and need pictures sometimes. It would be helpful to me if you could mark-up the attached photo to show. Or confirm by photo and part number...

1) which part are you selling a shorty version of (part #19?). Your price?
2) which bearing is being upgraded with the double row/double sealed 5305-2RS super-heavy duty bearing (part #15?)

Are we tossing the OEM seal (part #16) because the super deluxe double row bearing is double sealed?

Thanks.

This parts diagram is not copywrite protected, but I'll give photo credit to LeadVenture anyway.

Back to top


IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #5 - 07/05/24 at 13:42:43 Modifying part number 19. Put a step in it so it lives partially in the bearing. Double sealed bearings, so you no longer use the extra seal.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #6 - 07/05/24 at 13:44:14 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1561964431 Check DBMs tech listings.
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #7 - 07/06/24 at 08:22:14 Bearing number 16 gets swapped for the double wide
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #8 - 07/06/24 at 08:23:11 Price is $30, including shipping. You have to send me your original when you swap them out. Thanks
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Rear pulley Dewobble Reply #9 - 07/06/24 at 16:29:02 Where is Drag Bike Mike by the way?? Edit: Never mind...I see he posted on Dave's thread yesterday.
Back to top	IP Logged

mrpete YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 10	Re: Rear pulley Dewobble Reply #10 - 08/25/24 at 18:01:43 Armen wrote on 07/06/24 at 08:23:11: Price is $30, including shipping. You have to send me your original when you swap them out. Thanks Hey Sir, What is the best way to order one? Thanks in advance, -Pete
Back to top	IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #11 - 08/25/24 at 19:15:18 I’ll send you a PM. Basically, PayPal me the $. Send it ‘friends and family so Paypal doesn’t take a bite. Just send me your original after you swap them out. Thanks!
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

mrpete YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 10	Re: Rear pulley Dewobble Reply #12 - 09/03/24 at 21:25:20 Received! Thank you Sir! Give me a sec on the return. -Pete ps. Nicely done! Feels good, nicely chamfered. My lathe is in mothballs so I appreciate the work of all the LS650 fans making the community a great resource.
Back to top	IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1454	Re: Rear pulley Dewobble Reply #13 - 09/03/24 at 21:31:03 Most welcome! Keep us posted on the results.
