DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: Clutches, clutches, clutches. Where does it en Reply #105 - 05/22/24 at 01:39:14 Glad you got it back on the road.
Back to top	Knowledge is power. IP Logged

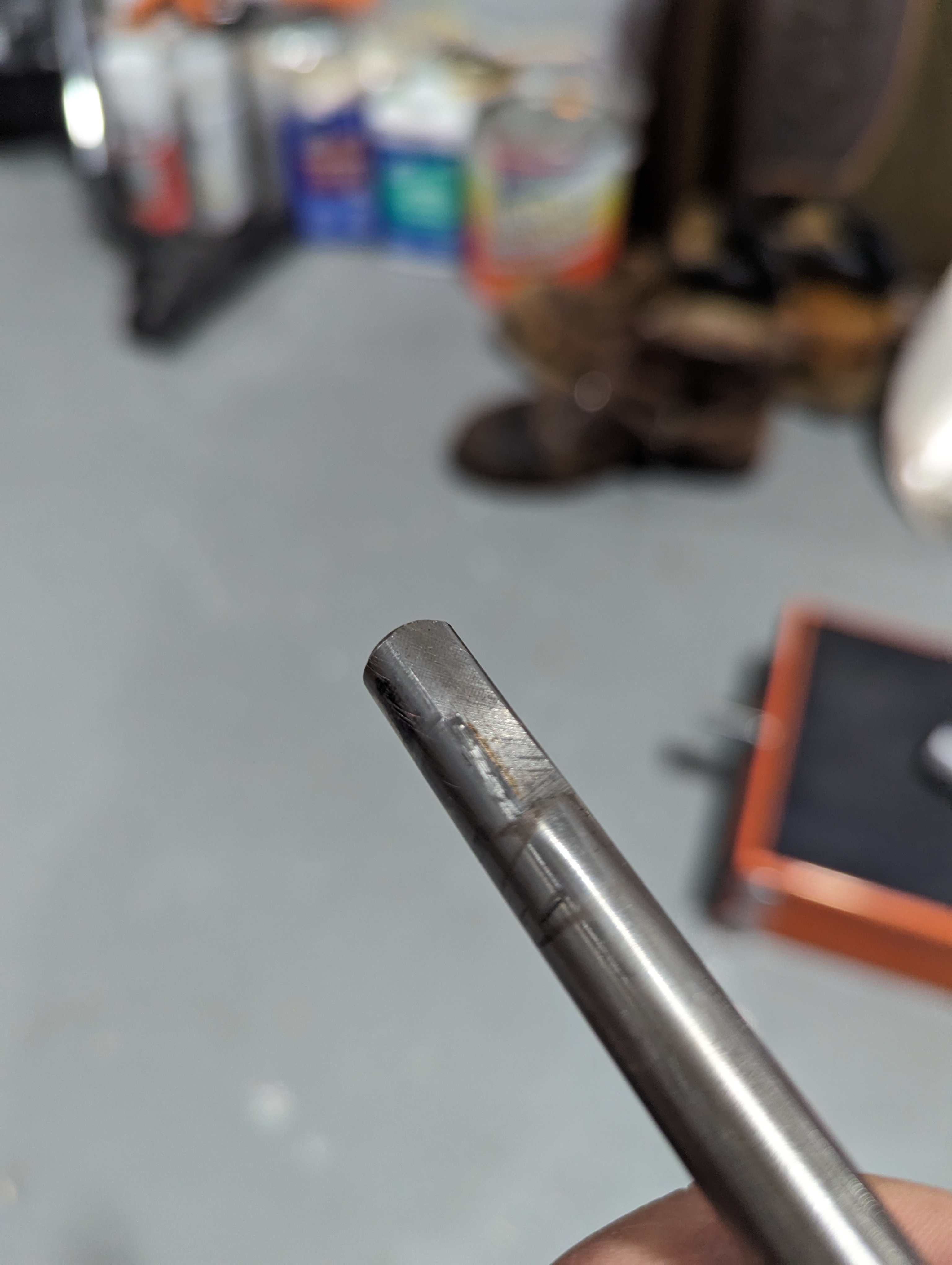

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #106 - 05/25/24 at 18:02:58 Actuating arm wear
Back to top	PXL_20240526_010111736.jpg IP Logged

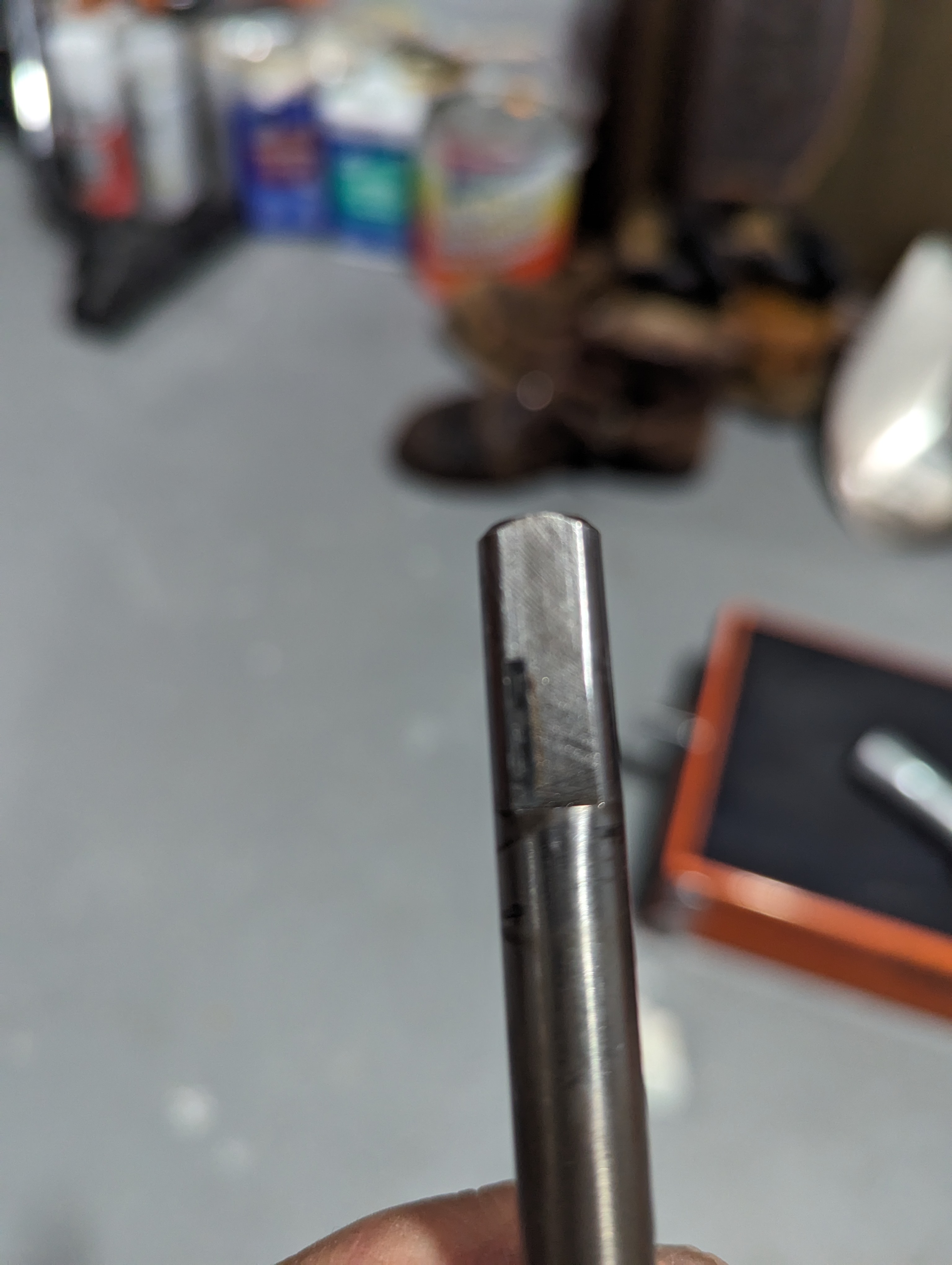

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #107 - 05/25/24 at 18:03:20 Another
Back to top	PXL_20240526_010127560.jpg IP Logged

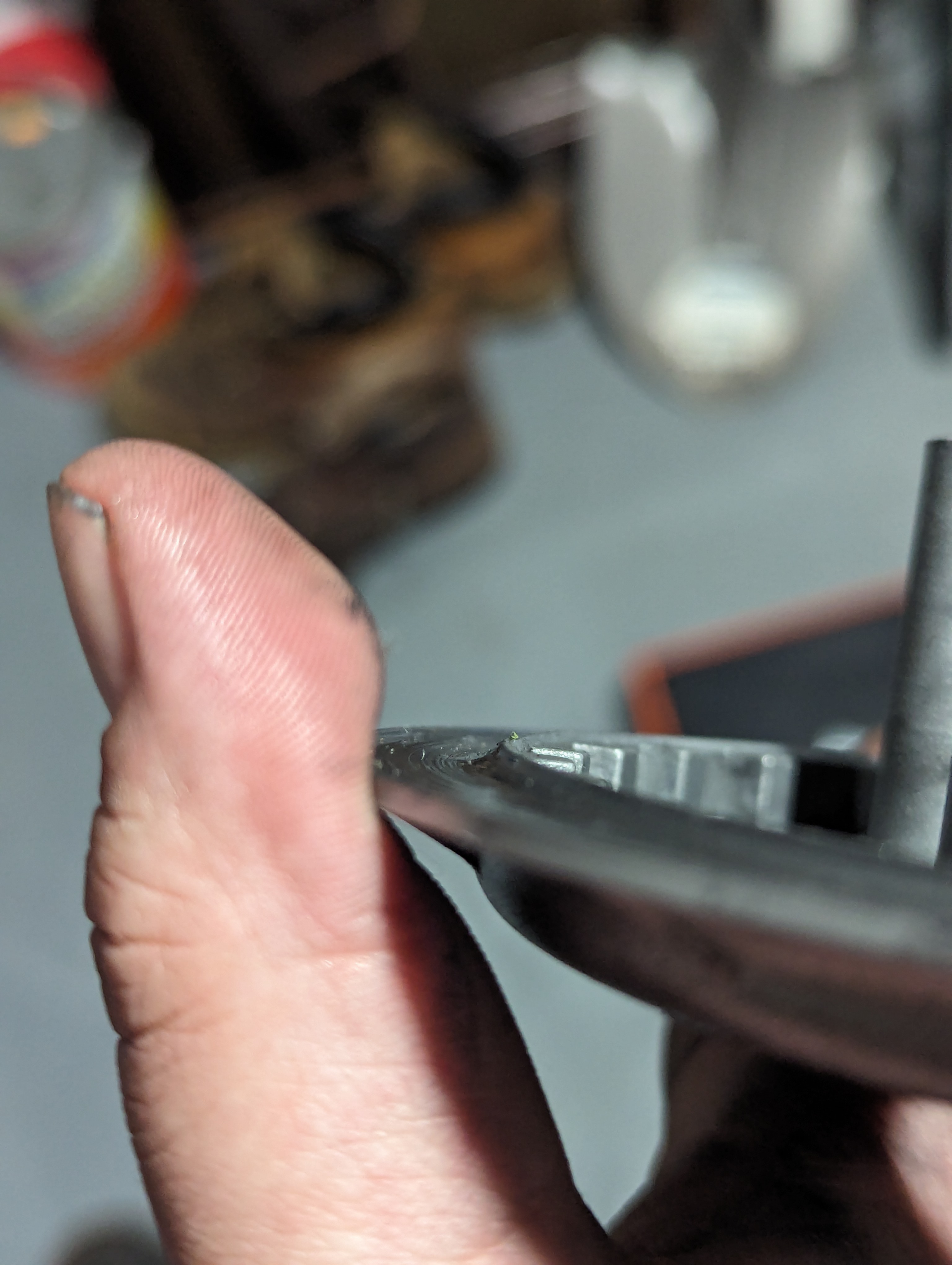

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #108 - 05/25/24 at 18:05:11 Pressure plate # 2
Back to top	PXL_20240526_010551170.jpg IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4470
Honolulu

Re: Clutches, clutches, clutches. Where does it en
Reply #109 - 05/25/24 at 23:15:30

That pressure disk is remarkable. Something ain't right in that clutch. Either it was assembled incorrectly, or you have a serious problem with operator error. Hopefully you corrected the problem this time around. Hard to believe you burned through two pressure disks in less than a year.

Thanks for the pics. Very informative. Also, I forgot to mention, glad your lady didn't get hurt in the crash.

Knowledge is power.

IP Logged

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2154 Houston, Texas Gender:	Re: Clutches, clutches, clutches. Where does it en Reply #110 - 05/26/24 at 05:33:51 I’m good at rounding off bolts! You’ve succeeded at rounding off your shaft! I know you mentioned lots of stop and go city driving, but dang. You sure you’re installing the special fat fiber disc in the #1 spot?
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Clutches, clutches, clutches. Where does it en Reply #111 - 05/26/24 at 18:12:34 That pressure plate...wow! #SMOKED
Back to top	IP Logged

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #112 - 05/26/24 at 18:28:09 Best angle grinder I've ever ridden
Back to top	IP Logged

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #113 - 08/27/24 at 11:18:44 Guess who's clutch is slipping again! I'm going to open the bike back up in the coming weeks, utilize the tests DBM wanted me to run previously while diagnosing. This will be a slow burn as I accumulate funds/parts. Something just ain't right...
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18313 Camp Springs, Kentucky Gender:	Re: Clutches, clutches, clutches. Where does it en Reply #114 - 08/27/24 at 11:24:41 I have a good pressure plate I can donate.....you pay shipping.
Back to top	Someday I will be old......But not today! IP Logged

Surviving Philly Senior Member Offline SuzukiSavage.com Rocks! Posts: 293	Re: Clutches, clutches, clutches. Where does it en Reply #115 - 08/27/24 at 11:30:07 THANK YOU! I will probably take you up on this offer once I get it open. You have no idea what a huge help this would be -- 130 for new pressure plates just to burn them out on my miserable salary is a nightmare. I'll keep you posted thanks Dave seriously.
Back to top	IP Logged

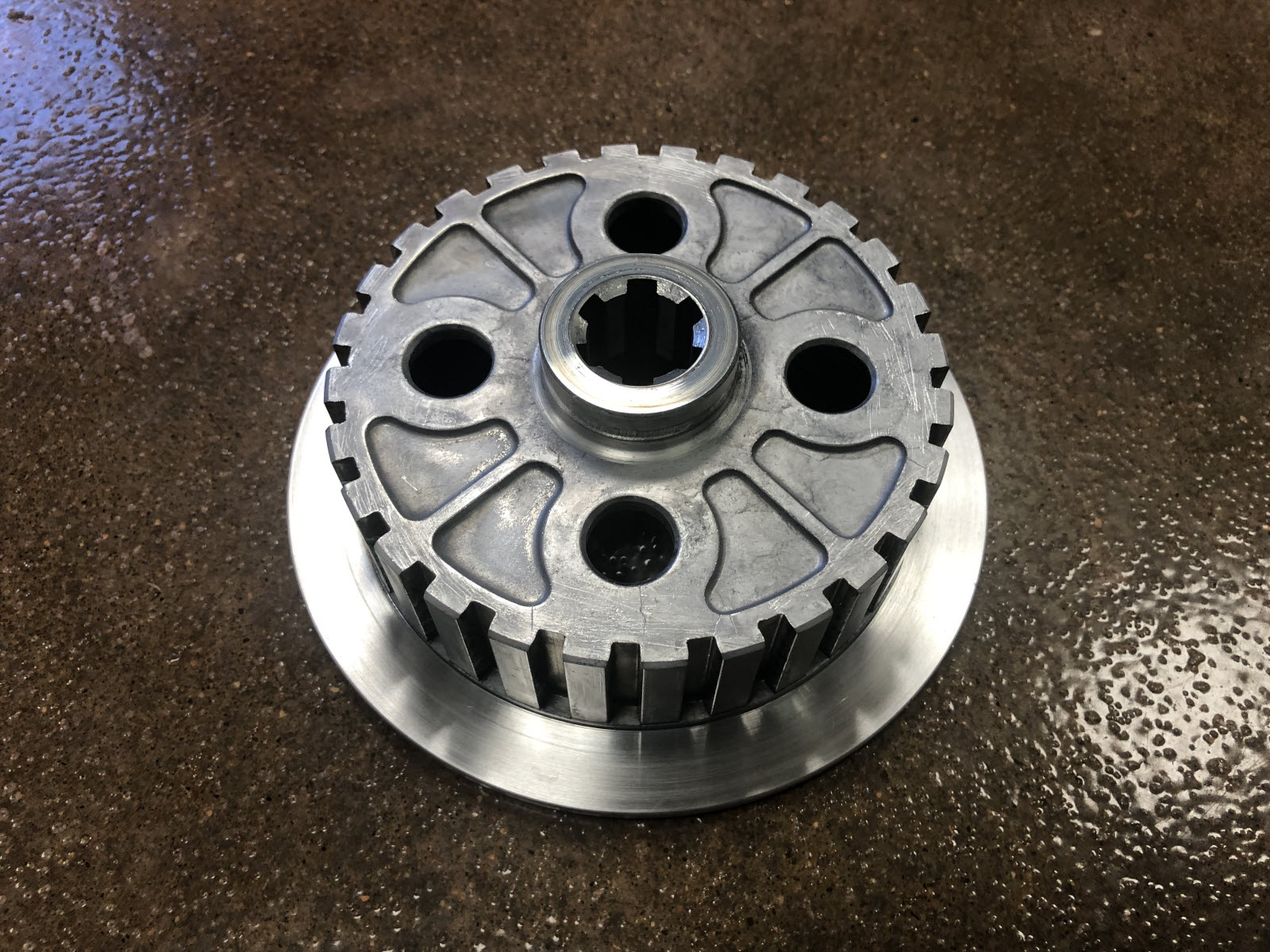

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18313 Camp Springs, Kentucky Gender:	Re: Clutches, clutches, clutches. Where does it en Reply #116 - 08/27/24 at 15:53:29 I looked and I don't have any extra pressure plates. I had one damaged when my clutch release cam broke and I had to use my spare. I do have a spare clutch hub you can have for shipping cost.
Back to top	IMG_3808.JPG Someday I will be old......But not today! IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2825	Re: Clutches, clutches, clutches. Where does it en Reply #117 - 08/27/24 at 16:20:15 Like fired?!
Back to top	IP Logged

Surviving Philly

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 293

Re: Clutches, clutches, clutches. Where does it en
Reply #118 - 08/31/24 at 09:46:21

I'll absolutely take you up on the hub.

Here's something interesting -- I came across a pamphlet from Barnett stating that the stamped steel plates, due to their construction, have a flat side and a round side, and, apparently they want these installed In uniform manner. Meaning that either all flat facing one direction or all round. I don't think I could imagine this being the cause of the pressure plate wear but I'm wondering if having them installed non-uniform could cause inconsistency in the release, causing the pressure plate to be taking on undue friction.

God Im so sick of thinking about this clutch.

IP Logged

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2154 Houston, Texas Gender:	Re: Clutches, clutches, clutches. Where does it en Reply #119 - 08/31/24 at 16:57:39 If Barrnett went to the throuble of including a pamphlet on the subject, it might be kinda important. I have no idea..
Back to top	IP Logged
