(Another) Electrical Questions (Read 39 times)

Odysseus

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 48

(Another) Electrical Questions
07/13/24 at 17:13:37

Keepin' on truckin' with the electrical issues....

1. Anyone know what https://i.ebayimg.com/00/s/MTIwMFgxNjAw/z/cbIAAOSwwEhmkxcH/$_57.JPG?set_id=88... is and what I can do fix it. There are two clips that slide into two flat posts; unfortunately, I lost a clip as you can see and the wire is too short to trim any further.

2. Should I just get a new one? (I was thinking about getting a new wired started assembly anyway but they are $$$).

3. See that space above the wires? Does something feed out of that? Do I have a hiccup in there somewhere?

4. Do these electrical issues ever go away Tongue

IP Logged

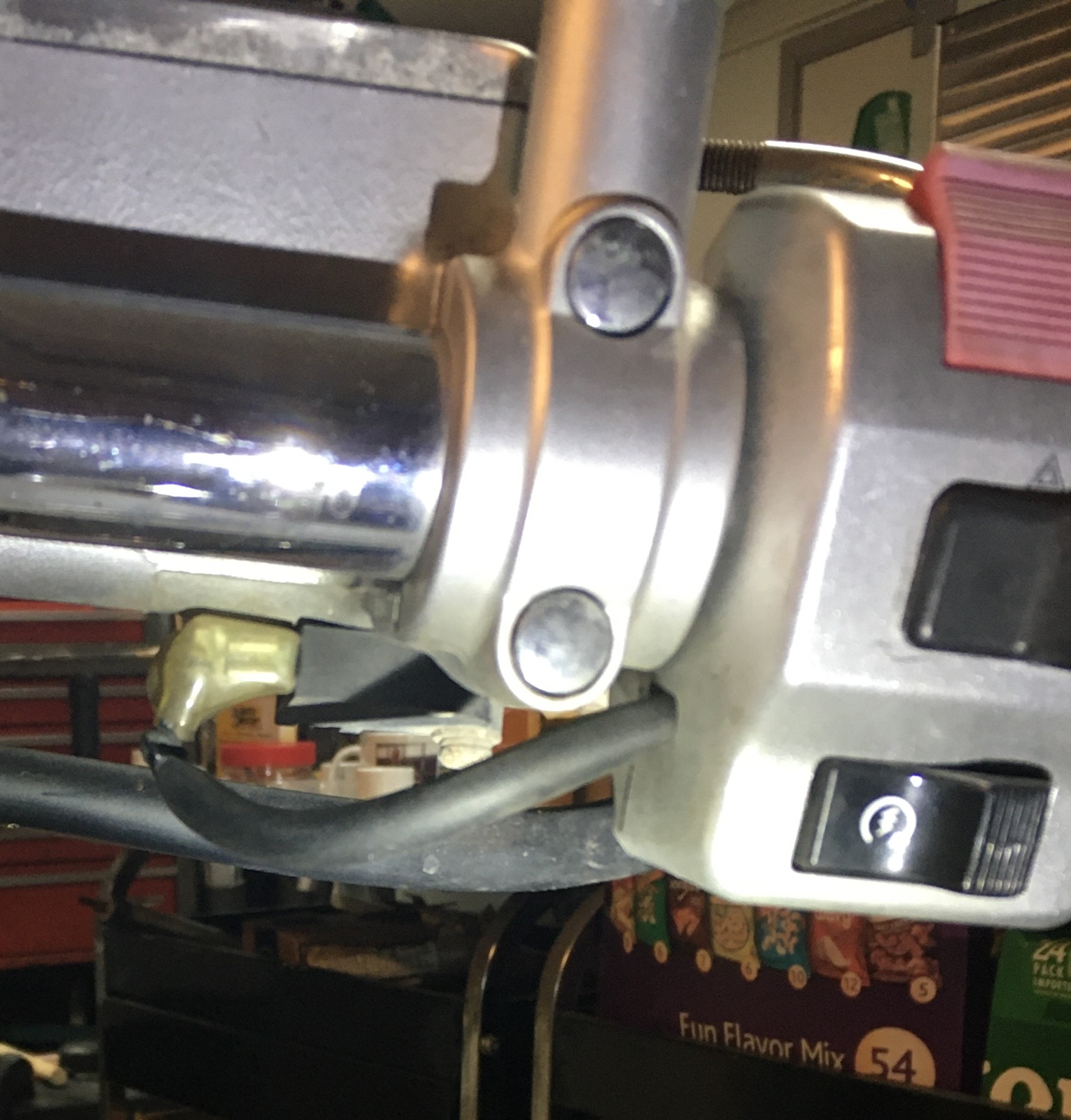

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: (Another) Electrical Questions Reply #1 - 07/13/24 at 23:17:03 Those would be the wires to your front brake switch. You have them routed incorrectly. They should pass through the empty notch. If you route them correctly, you might have sufficient wire length to replace the connector and get it hooked up. Like this.
Back to top	Front_Brake_Switch.jpg Knowledge is power. IP Logged

Odysseus YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48	Re: (Another) Electrical Questions Reply #2 - 07/13/24 at 23:55:16 Thanks DBM. Since my wire ripped out of my ~thing that slides onto the post~ thing, is this something I can wrap around the post (there's a little hole in there) and electrical tape it?
Back to top	IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4470 Honolulu	Re: (Another) Electrical Questions Reply #3 - 07/13/24 at 23:58:03 No. Fix it correctly.
Back to top	Knowledge is power. IP Logged

Odysseus YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 48	Re: (Another) Electrical Questions Reply #4 - 07/15/24 at 12:12:42 Good deal, thenks DBM. I have a guy with a 2006 S40 harness right side will that fit my 2005 s40? Curious.
Back to top	IP Logged

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2154 Houston, Texas Gender:	Re: (Another) Electrical Questions Reply #5 - 07/15/24 at 12:46:43 It will fit.
Back to top	IP Logged
