brake light allways on (Read 6 times)
Kaffe
YaBB Newbies
*
Online

SuzukiSavage.com
Rocks!

Posts: 1

brake light allways on
Today at 14:13:01

Hi, family

I installed new brake switches, and while testing them, I noticed that they didn't affect the brake light (it remained on even when no brakes were pressed). So, I unplugged both switches, and the brake light stayed on, even when neither switch was connected to the electrical system. If I remember correctly, if I remove both switches, the brake light should remain off. For me to turn off the brake light, I have to unplug it or power off the bike. I checked the connections and wires, and they appear to be fine.  Besides the switches, what else and where should I look to find what's wrong?

Thanks Ya'll! Smiley
Back to top


  IP Logged
ThumperPaul
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2192
Houston, Texas
Gender: male
Re: brake light allways on
Reply #1 - Today at 18:27:53

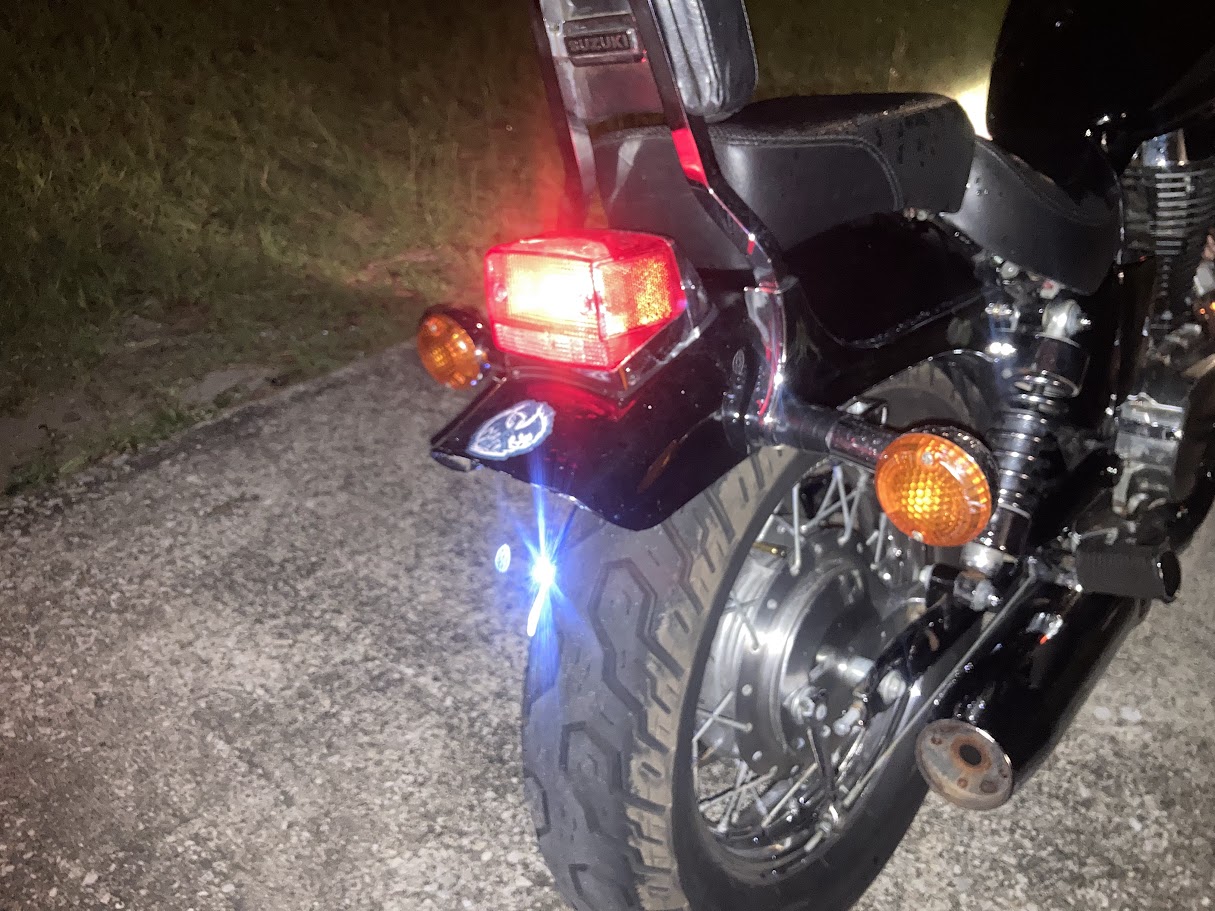

Are you sure it's not the "tail light"?  The tail light should turn on/off with the ignition (some gov't safety requirement or something).  The brake light portion of the bulb should only illuminate when a brake lever/pedal is applied.

It a "combination lamp". 12V 21/5W

https://www.partzilla.com/product/suzuki/09471-12128?ref=886b7cc0d62e0d38e409...
