bodywork needed (Read 402 times)
sluggo
Serious Thumper
ModSquad
*****
Offline

big singles lead,
twins follow the
pack

Posts: 4744
moses lake washington
Gender: male
bodywork needed
07/31/08 at 11:04:23

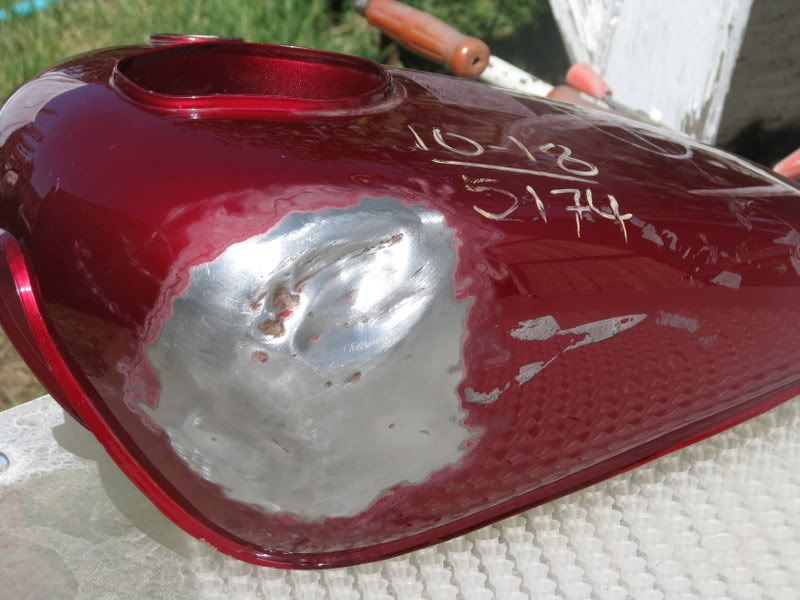

i'm in need of some body work as you can tell, this is the tank i bought from a fellow member   thanks...

i need it fixed and paintd gloss black. i'll send tins also. black will look great withthe chromed fenders.

time is not a big deal, cash is.  i don't want anyone to do it for free, i just need it cheep.

i would consider an equivilant indentation on the other side if we could get them to match.

shiny black with chrome fenders.... ooooooooooo. Cool

my wife may spring for oem color , she really likes the purple.

thanks
sluggo\

i've got the box all ready for shipping.
Back to top




SINGLES RULE, HARLEYS DROOL

  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: bodywork needed
Reply #1 - 07/31/08 at 12:53:27

I was a bodyman for 3 years. I have the tools.I would need a Brad tool, that welds a brass tack to the tank, then pull on that to get the wrinkles out. I am still rasslin the Honda, of the 10 head bolt holes, 9 require a tap & findiong the tap has become a bit of a mystery. The one a machinist handed me just doesnt feel right. the one good hole that the new bolts run in freely wont allow the tap to run in, so I have to make certain I have the right one. I dont think I do.

So, if you arent in a hurry, let me get this car running, then, I'll do it.
The big expenses are  tool rental, bondo, primer & sand paper & freight. I'll do the work for plenty cheap.Ill start looking at the tool rental & bondo & sandpaper costs & a can of spray primer is cheap. The painters would sometimes reject bodywork & send it back to the bodyman to redo. Mine was never sent back.


Since that is a gas tank, & since the brad welder does get the metal red hot, am I gonna get blown up? Is there a way to air it out & make it safe? Surely a few days of being open it would air out, wouldnt it?

OOOPS,,,I see a hard crease & the paint is ground off, the 2 dents that are together on the about 9 oclock position, then, there is a dent,running up & right, right where that dent connects to the upper dent of the 2 dents at 9 oclock, there is a place that is folded pretty hard. How thin did the metal get ground at the peak of that fold? It may crack when it gets pulled out. It looks like the grinder got a little carried away in that spot. That may require some brazing. I guess a tank can be brazed & not leak there. Ive never messed with fuel tanks.

IF brazing will work, I can drill & use the old method of a dent puller & avoid the cost of renting a machine & buting the brads. I can get it brazed ( if its safe & will work) for little $ & an 90 mile round trip. It will look like new, for sure. I did the bodywork on an oilfield Mack truck & as hard as it bounced down the road, none of the mud ever cracked or flaked off. It had been sandblasted using industrial abrasive & was warped from end to end. It took 6 gallons of mud to solve that & 6 weeks.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
sluggo
Serious Thumper
ModSquad
*****
Offline

big singles lead,
twins follow the
pack

Posts: 4744
moses lake washington
Gender: male
Re: bodywork needed
Reply #2 - 07/31/08 at 13:23:43

I'll send it along  give me an address in a pm and how much start up cash it will take to do the job.


i would rather it done well than fast. the original tank is still in use so the time thing is not that important.

tanks,  just tell me what ya need.
Back to top




SINGLES RULE, HARLEYS DROOL

  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #3 - 07/31/08 at 16:34:58

Dude, you MUST wash out the tank very ,very well with a cleaning solvent first (mineral spirits will work) followed by at least 3-4 flushings with a quality grade soap cleanser(i use "purple stuff" ) or the tank will explode the second you put the stud gun to it!!! You can also run your car exhaust pipe into it for a few minutes to neutralize  the combustable fumes. I don't care how long the tank has sat empty and"aired out",it will blow!! Take my word for it,i have welded,cut,fabbed and modified more gas tanks than there are days in a year.... Please don't use a dent puller on it,it leaves little "volcano holes in it that then must be welded up(MIG or TIG will both work) and basically makes a butcher job out of it. Hope this helps....K.J. P.S I have been a bodyman/painter/fabricator for over 30 years.Also keep in mind that jap bike tanks are very thin (approx. 24 gauge ) and are quite difficult to weld properly. Thats where a TIG welder comes in handy.Later....
Back to top


  IP Logged
sluggo
Serious Thumper
ModSquad
*****
Offline

big singles lead,
twins follow the
pack

Posts: 4744
moses lake washington
Gender: male
Re: bodywork needed
Reply #4 - 07/31/08 at 17:24:45

Kustomjim wrote on 07/31/08 at 16:34:58:
Dude, you MUST wash out the tank very ,very well with a cleaning solvent first (mineral spirits will work) followed by at least 3-4 flushings with a quality grade soap cleanser(i use "purple stuff" ) or the tank will explode the second you put the stud gun to it!!! You can also run your car exhaust pipe into it for a few minutes to neutralize  the combustable fumes. I don't care how long the tank has sat empty and"aired out",it will blow!! Take my word for it,i have welded,cut,fabbed and modified more gas tanks than there are days in a year.... Please don't use a dent puller on it,it leaves little "volcano holes in it that then must be welded up(MIG or TIG will both work) and basically makes a butcher job out of it. Hope this helps....K.J. P.S I have been a bodyman/painter/fabricator for over 30 years.Also keep in mind that jap bike tanks are very thin (approx. 24 gauge ) and are quite difficult to weld properly. Thats where a TIG welder comes in handy.Later....



and thats why i'm farming out the work
Back to top




SINGLES RULE, HARLEYS DROOL

  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: bodywork needed
Reply #5 - 07/31/08 at 19:59:28

well,,I wish I had a junk tank to mess with. I sure dont want to Create one, using Sluggo's tank to start from.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #6 - 07/31/08 at 20:05:59

Well Sluggo,Ya git whut ya pay fer!!!!!K.J.FROM####??????????
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: bodywork needed
Reply #7 - 07/31/08 at 20:09:47

Kinda snotty there KJ,,
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #8 - 07/31/08 at 20:14:59

My Bad, me sorry!
Back to top


  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #9 - 07/31/08 at 20:16:56

Hey, we are all online. HOW SWEET!
Back to top


  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #10 - 07/31/08 at 20:20:46

Not snotty, just the TRUTH, can Ya take it?
Back to top


  IP Logged
strangeling
Senior Member
****
Offline

Ex Savage Rider but
always a SAVAGE

Posts: 427
Salt Lake City UTAH
Gender: male
Re: bodywork needed
Reply #11 - 07/31/08 at 20:26:16

Aaaaaw KJ are you stirring up the Savages again ?  Angry Grin
Back to top



07 S40 Brat BOBBER - Hard Krome drag pipe, header wrap, Cone filter, jetted , harley drag bars, solo seat, chain conversion, seeger forward controls, custom rear fender, fork gaiters.
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: bodywork needed
Reply #12 - 07/31/08 at 20:28:26

Yea, I can stand what you think, you dont know me, your opinion is based on your own need to feel superior, & your opinion is meaningless, and snotty.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
sluggo
Serious Thumper
ModSquad
*****
Offline

big singles lead,
twins follow the
pack

Posts: 4744
moses lake washington
Gender: male
Re: bodywork needed
Reply #13 - 07/31/08 at 20:32:12

I really didn't want to start a pi$$ing match here, i just need the job done well and i trust usz guyz more than anybody here in town.

as for how much, somewhere between dyi and wholesale? tell me what ya need. i can live without it, but it sure would be nice to have it done this season.

now  i do have another practice tank. but bike fixer gave me a way to blow it up real good, and ya know me... any thing for a big bang.

Back to top




SINGLES RULE, HARLEYS DROOL

  IP Logged
Kustomjim
Junior Member
**
Offline

I love YaBB 1G -
SP1!

Posts: 86

Re: bodywork needed
Reply #14 - 07/31/08 at 20:38:43

Sorry, my "opinion " is not  is not ""meaningless% and opionated,it is based on fact and experience.take it as you may ,we listen to your "rantings" and I personally appreciate them, but God help the person that does not agree with you.....
